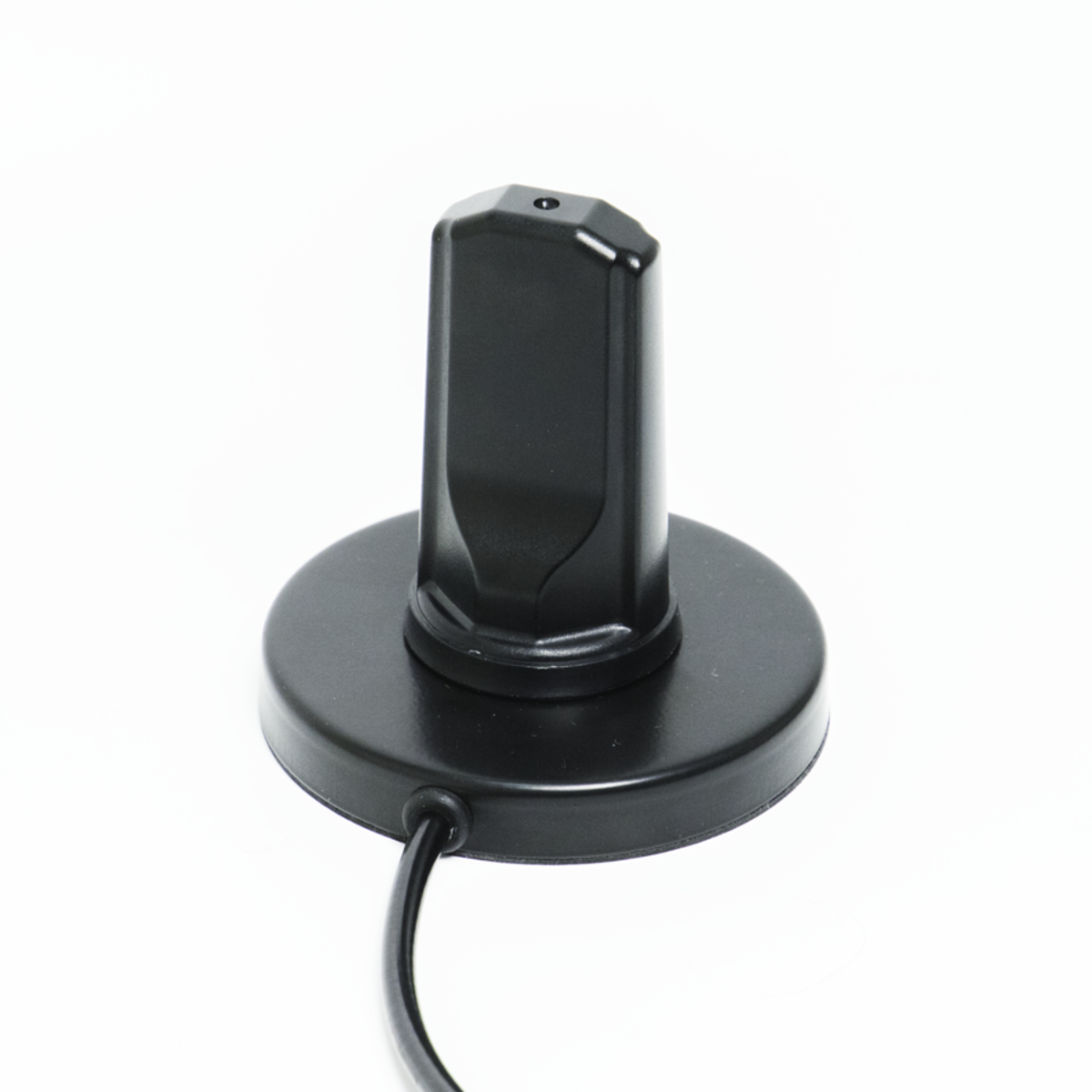

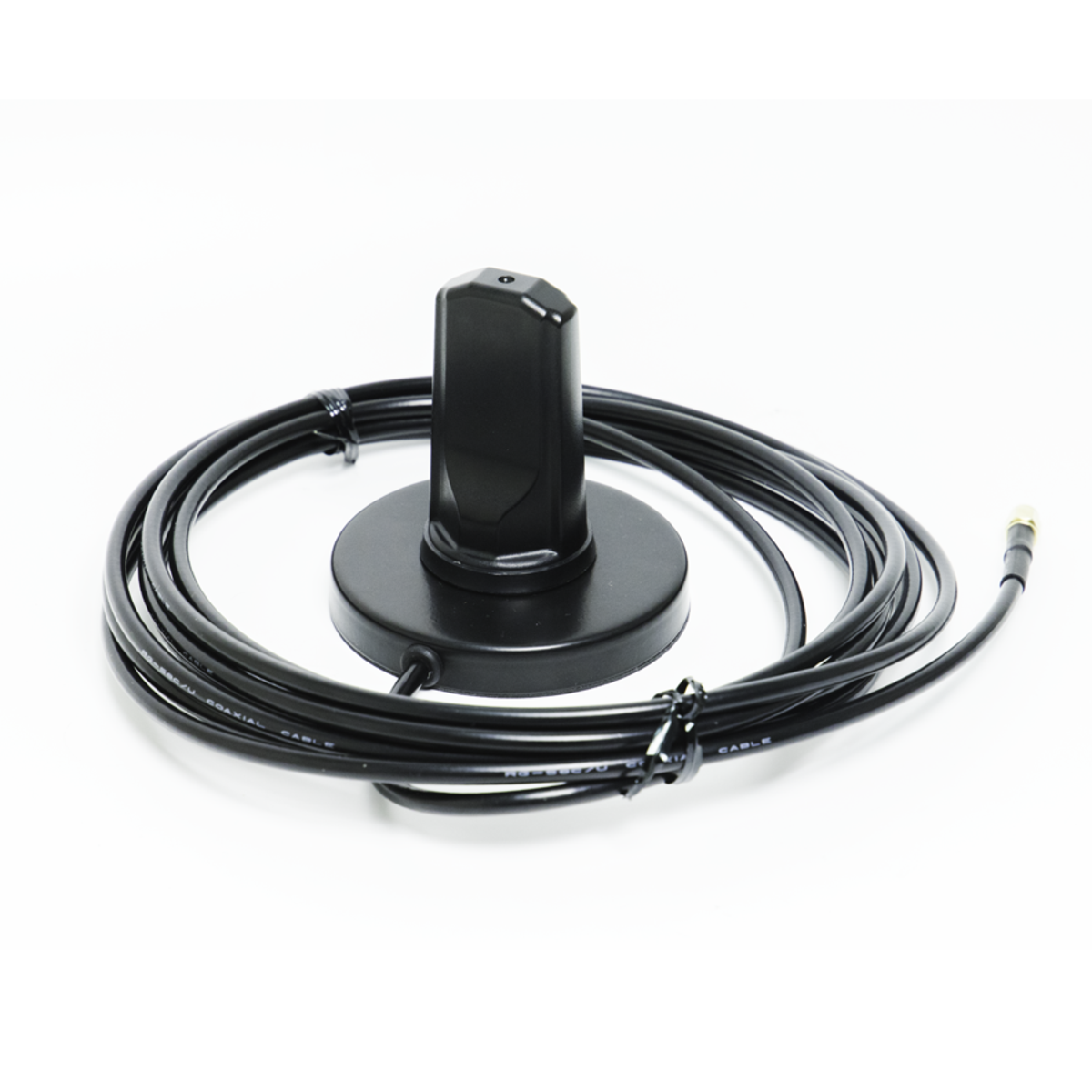

RFI CSM600-MAG-4M-SMA LTE Magnetic Base Antenna, 698-2700 MHz, 4m, SMA-Male

RFI CSM600-MAG-4M-SMA LTE Magnetic Base Antenna, 698-2700 MHz, 4m, SMA-Male

Available

Brand:
Item ID:
168014142
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
CSM600-MAG-4M-SMA
Send Request for Quote (RFQ) Discount Offers
RFI CSM600-MAG-4M-SMA Cellular Antenna (698-2700 MHz); 4m SMA(M), has multi-band coverage, IP65 rating, and sleek design for indoor/outdoor use.
Regular price $124.00
Regular price $0.00 Sale price $124.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI CSM600-MAG-4M-SMA Cellular Antenna is a compact RFI LTE Magnetic Base, designed for seamless coverage across multiple bands (698-960 MHz, 1710-2700 MHz).  This RFI CSM600-MAG-4M-SMA Cellular Antenna boasts a compact, low-profile design suitable for both indoor and outdoor applications. The UV stable ABS radome ensures durability, while the IP65 rating provides robust protection.

Features:

  • Multi-Band LTE Coverage: Enjoy reliable connectivity across a wide frequency range (698-960 MHz, 1710-2700 MHz).
  • Compact Low-Profile Design: The antenna's sleek and unobtrusive form factor ensures versatility for various applications.
  • IP65 Rating: Designed to withstand challenging outdoor conditions, providing durability and longevity.
  • Removable and Temporary Use: Ideal for situations where a portable or temporary antenna solution is required.
  • Microstrip Design Radiator: The antenna uses microstrip design radiator enclosed in UV stable ABS radome.
  • 84 mm Magnetic Base: Facilitates easy and secure installation.
  • 4m RG58C/U Cable: Supplied with a generous cable length for flexible placement.
  • SMA Male Connector: Compatible with a range of devices for seamless connectivity.

Electrical Specifications:

  • Frequency MHz: 698-960 | 1710-2170 | 2300-2700
  • Gain (Peak) dBi: 2.5 | 3.3 | 4.6
  • Vertical Beamwidth: 45° ±5° | 35° ±5° | 30° ±5°
  • VSWR: <2.5:1
  • Radiation: Omni
  • Polarisation: Vertical
  • Power (max.) W: 10

Mechanical Specifications:

  • Construction: Microstrip radiation enclosed in a UV stable ABS radome mounted on a magnetic base
  • Cable / Connector: 4m RG58C/U / SMA male
  • Ingress Rating: IP65
  • Operating Temp. °C: -40 to +85
  • Mounting: Magnetic

Documents:

RFI CSM600-MAG-4M-SMA Antenna - Datasheet

Product Specifications

MPN CSM600-MAG-4M-SMA
Antenna application Terminal Antenna
Antenna cable type RG58
Antenna configuration SISO
Antenna port connectors SMA (M)
Antenna type Omni
Band LTE
Brands RFI
Cable length m 4
Connector SMA(M)
Coverage type Omni-directional
Frequency mhz 698-960|1710-2170|2300-2700
Height 5
Ingress protection ip IP65
Installation type Internal or external mounting
Length 10
Low pim No
Max frequency mhz 2700
Max gain dbd dbi 4.6
Mimo support No
Min frequency mhz 698
Min gain dbd dbi 2.5
Mount supported Magnetic base
Mount supported detailed Magnetic base
No of antenna ports 1
Nominal gain dbi 2.5dBi / 3.3dBi / 4.6dBi (peak)
Packaging Clear Bag
Power w 10
Technologies supported 2G, 3G, 4G
Termination SMA male connectors
Tuned bandwidth Full. No tuning required
Vswr <2.5:1
Width 5
