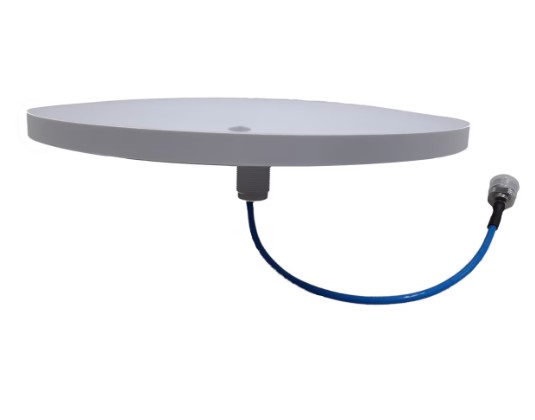

The RFI's DAS3827LP-SOC150-N is a low-profile omni-directional ceiling antenna designed to operate across the 380-2700 MHz frequency range, providing reliable UHF/LTE coverage. It comes with N(F) type connector on 300mm tail. The DAS3827LP-SDP150-N is a PIM rated, indoor SISO omni-directional panel antenna, covering 4G and 5G Cellular bands, 380-520 MHz, 689-960 MHz & 1710-2700 MHz. This multi-band design eliminates the need to purchase different antennas for each frequency and is ideal for all fixed in-building coverage applications.

Product Features:

• Low Profile compact form factor
• Coverage across multiple cellular and WLAN bands
• Ideal for DAS deployment for in-building coverage solutions
• Excellent -150 dBc PIM performance
• 1 x 300mm tail terminated with N type female connector

Application Areas:

• Ideal for in-building wireless coverage solutions.
• Supports UHF, 4G, and 5G LTE networks for seamless connectivity.
• Designed for commercial buildings, offices, and industrial environments.
• Suitable for Distributed Antenna Systems (DAS) to enhance indoor signal coverage.
• Optimized for multi-band operation, reducing the need for multiple antennas.

In the Box:

• RFI DAS3827LP-SOC150-N UHF/LTE Ceiling Antenna
• Pre-installed 300mm Tail with N(F) Connector

Documents:

RFI DAS3827LP-SOC150-N Antenna - Datasheet
