RFI SP3827-2312-DIN Directional Coupler, 3 Port, 12 dB, 380-2700 MHz, 200W, DIN-Female
RFI SP3827-2312-DIN Directional Coupler, 3 Port, 12 dB, 380-2700 MHz, 200W, DIN-Female
RFI Directional Coupler 3 Port 12 dB 380-2700 MHz 200W; DIN(F), is used in a variety of RF combining, sampling and power splitting applications.
- Brand
- RFI
- Export
- Acceptedwhat this means
- Item ID
- 168018958
- MPN
- SP3827-2312-DIN
- Shipping
- Please contact us for lead time
Standard Warranty
Global Insurance Except USA & Canada
$600.82
- Taxes included. Shipping rate calculated at checkout.
- Purchase Order & instructions box available at Cart page
-
Pay securely! All major cards accepted.
Product Description
RFI Directional Coupler 3 Port 12 dB 380-2700 MHz 200W; DIN(F)
Features:
- Multi-Band 380-2700 MHz covering UHF and Cellular bands.
- Low PIM ≤ -150 dBc (3rd Order 2x43 dBm carriers).
- Primarily used for optimising feeder cable signal distribution.
- Suitable for use with simplex and duplex channels, analogue or digital radio communications.
- Optional N Female termination connector SP3827-23xx-11 range available.
- Wide range of coupling values.
- Environmental IP 67 Rating.

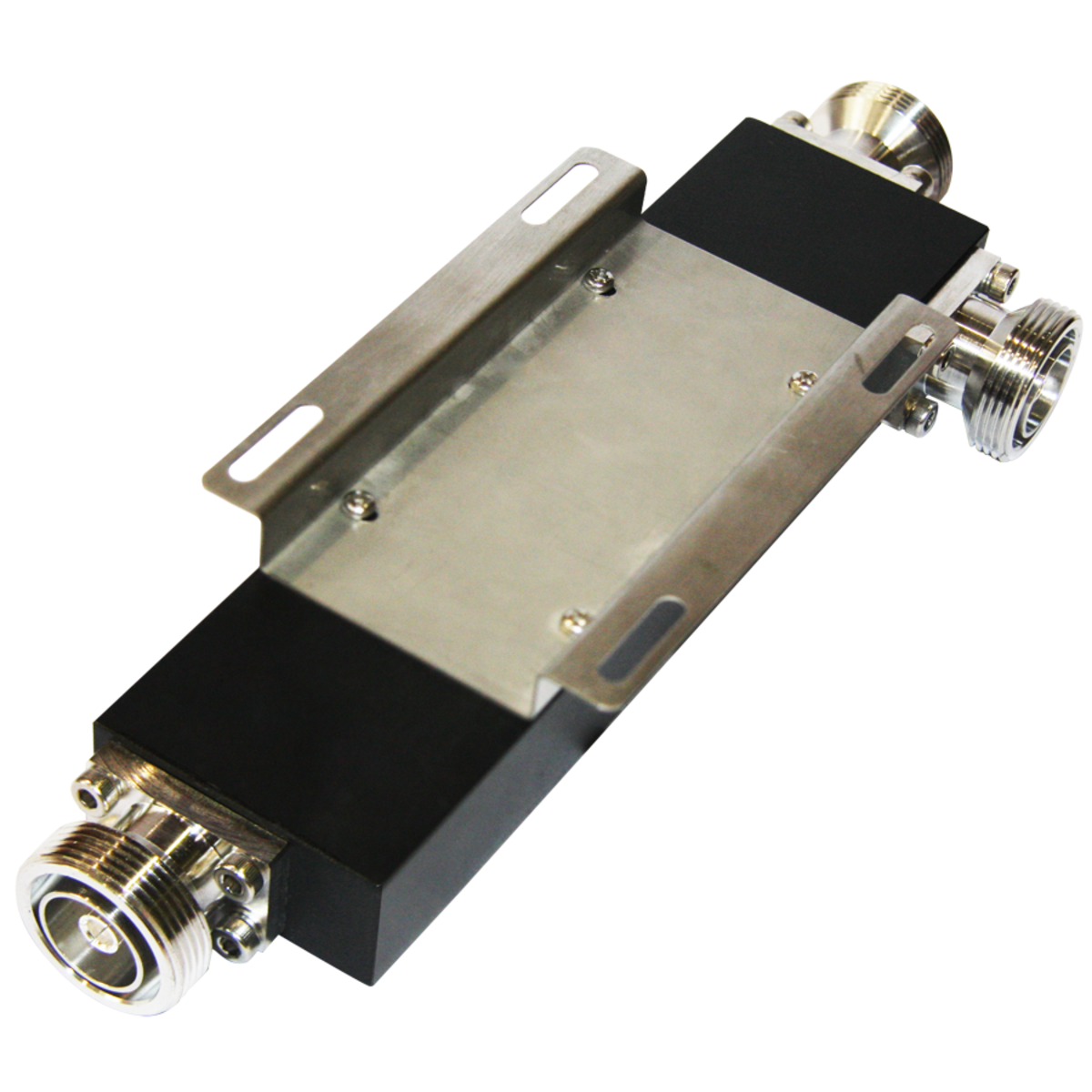

- Includes S/S Mounting bracket.
