RFI SP3827-2315-11 Directional Coupler, 3 Port, 15 dB, 380-2700 MHz, 200W, N-Female

Name: RFI SP3827-2315-11 Directional Coupler, 3 Port, 15 dB, 380-2700 MHz, 200W, N-Female
Brand: RFI
SKU: 168018959
Price: 363.0 AUD

Product form

Brand:

Item ID:

168018959

Export:

Accepted

Shipping:

Please contact us for lead time

Warranty:

Standard Warranty

Product Liability:

Global Insurance Except USA & Canada

Options/MPN:

SP3827-2315-11

RFI Directional Coupler 3 Port 15 dB 380-2700 MHz 200W; N(F), are used in a variety of RF combining, sampling and power splitting applications

$363.00

Product Description

RFI Directional Coupler 3 Port 15 dB 380-2700 MHz 200W; N(F)

Multi-Band 380-2700 MHz covering UHF and Cellular bands.
Low PIM â‰¤ -150 dBc (3rd Order 2x43 dBm carriers).
Primarily used for optimising feeder cable signal distribution.
Suitable for use with simplex and duplex channels, analogue or digital radio communications.
Optional 7.16DIN Termination Connector SP3827-23xx-DIN range available.
Suitable for use in multi-carrier environments.
Wide range of coupling values.
Environmental IP 67 Rating.

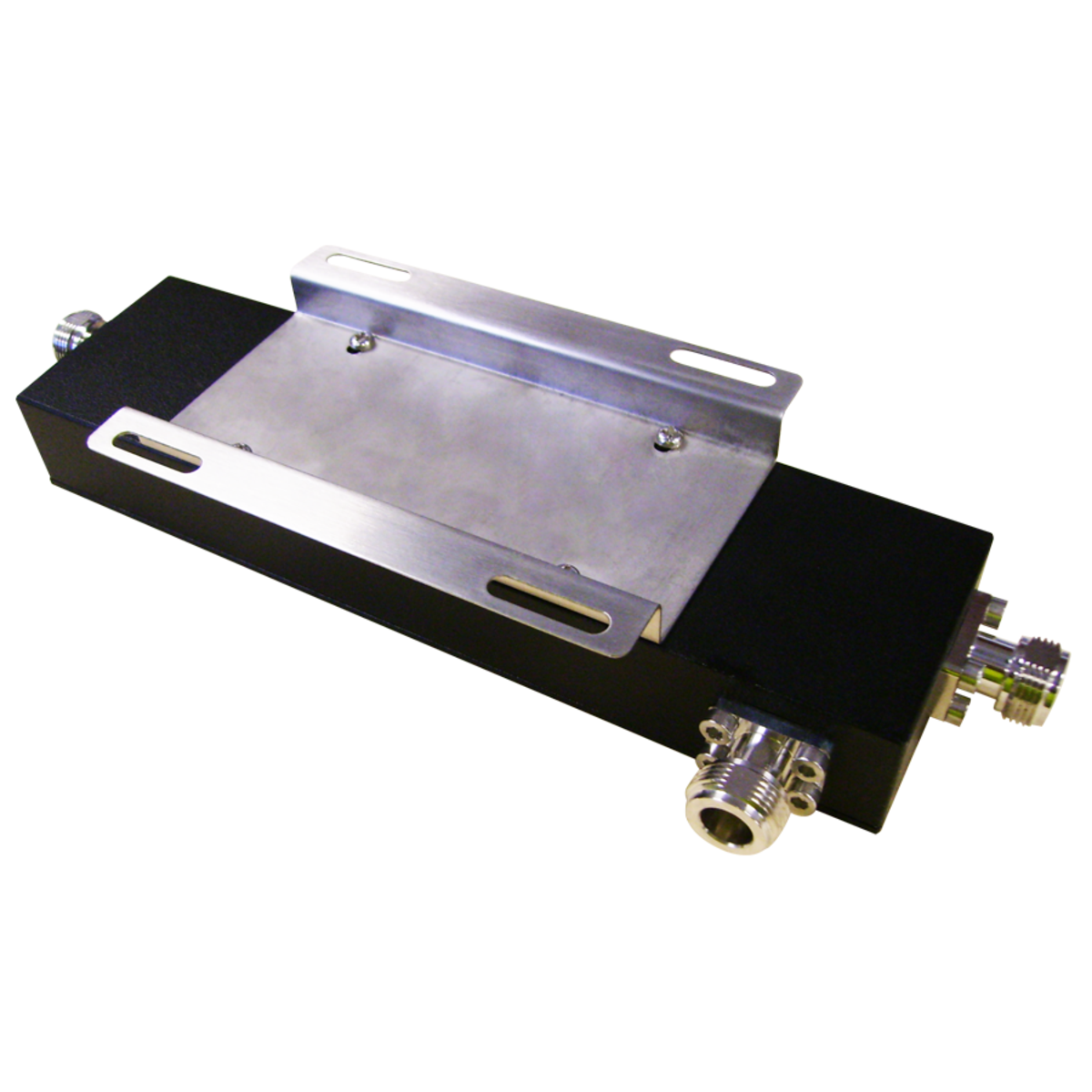

Includes S/S Mounting bracket.
