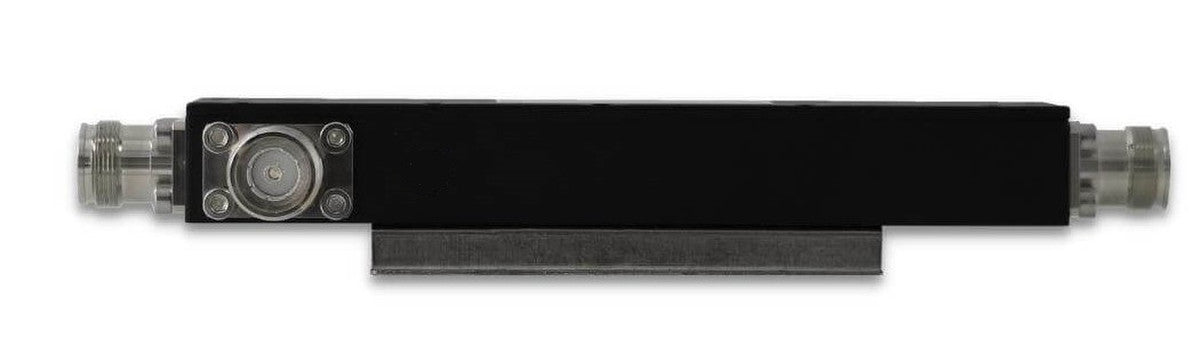

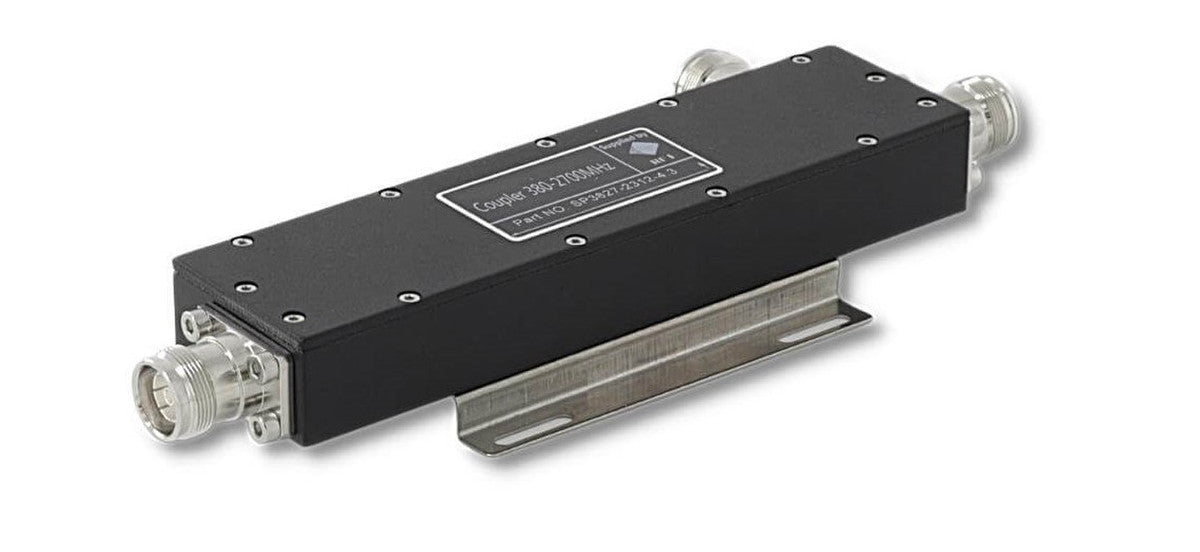

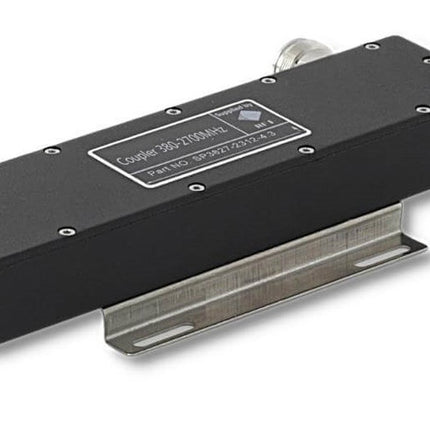

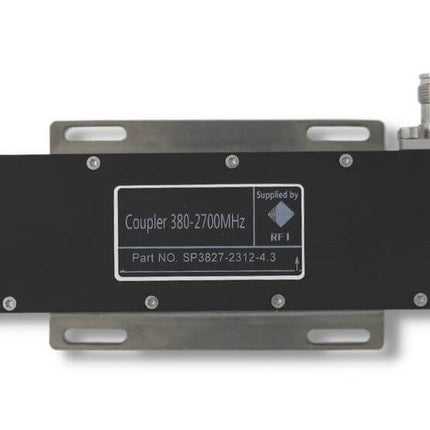

RFI SP3827-2330-4.3 Directional Coupler, 3 Port, 30 dB, 380-2700 MHz, 200W, 4.3-Female

RFI SP3827-2330-4.3 Directional Coupler, 3 Port, 30 dB, 380-2700 MHz, 200W, 4.3-Female

Brand:
Item ID:
168018882
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
SP3827-2330-4.3
Send Request for Quote (RFQ)
RFI SP3827-2330-4.3 Directional Coupler, 3 Port, 30 dB, 380-2700 MHz, 200W, 4.3-Female offers low PIM rating, making it ideal for DAS and RF applications.
Regular price $523.00
Regular price $0.00 Sale price $523.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI SP3827-2330-4.3 Directional Coupler is a 3-port device with a 30 dB coupling value, designed for the 380-2700 MHz frequency range and capable of handling up to 200W of power. Featuring 4.3-10 female connectors, this coupler is an essential component for various RF applications, including combining, sampling, and power splitting. Typically used in Distributed Antenna Systems (DAS), it plays a crucial role in sampling RF for fiber-fed systems and distributing power throughout feeder cable networks. Using directional couplers suitable for covering UHF to high-end cellular frequencies saves on the cost of upgrades when public safety radio coverage may have to be accommodated on a DAS designed for cellular coverage. The RFI multiband directional couplers are available in a range of coupling values, giving network designers and planners the ability to optimize and balance RF levels throughout a DAS network.

Product Features:

  • This RFI SP3827-2330-4.3 Directional Coupler ensures optimized signal distribution, providing efficient distribution of feeder cable signals.
  • It is manufactured to deliver exceptional performance with a low PIM rating of ≤ -150 dBc (3rd Order 2x43 dBm carriers), ensuring minimal interference.
  • This device works seamlessly with simplex and duplex channels, supporting both analog and digital communications.
  • It features 4.3-10 female connectors, ensuring reliable and secure connections.
  • This coupler is designed to handle up to 200W of power, making it suitable for high-power applications.
  • It covers multi-band frequencies from 380-2700 MHz, including UHF and cellular bands.
  • This device has an environmental IP 65 rating, ensuring durability and protection against harsh conditions.
  • It is suitable for use in multi-carrier systems, providing versatile functionality.

Application Areas:

  • This coupler is ideal for use in Distributed Antenna Systems (DAS), ensuring reliable signal distribution and sampling.
  • It is perfect for RF applications that require combining, sampling, and power splitting, providing versatile functionality.
  • This device is beneficial for fiber-fed systems, playing a crucial role in efficient RF sampling and distribution.
  • It is suitable for use in feeder cable networks, ensuring effective power distribution across the network.

In the Box:

  • 1x RFI SP3827-2330-4.3 Directional Coupler

Documents:

RFI SP3827-2330-4.3 Directional Coupler - Datasheet
