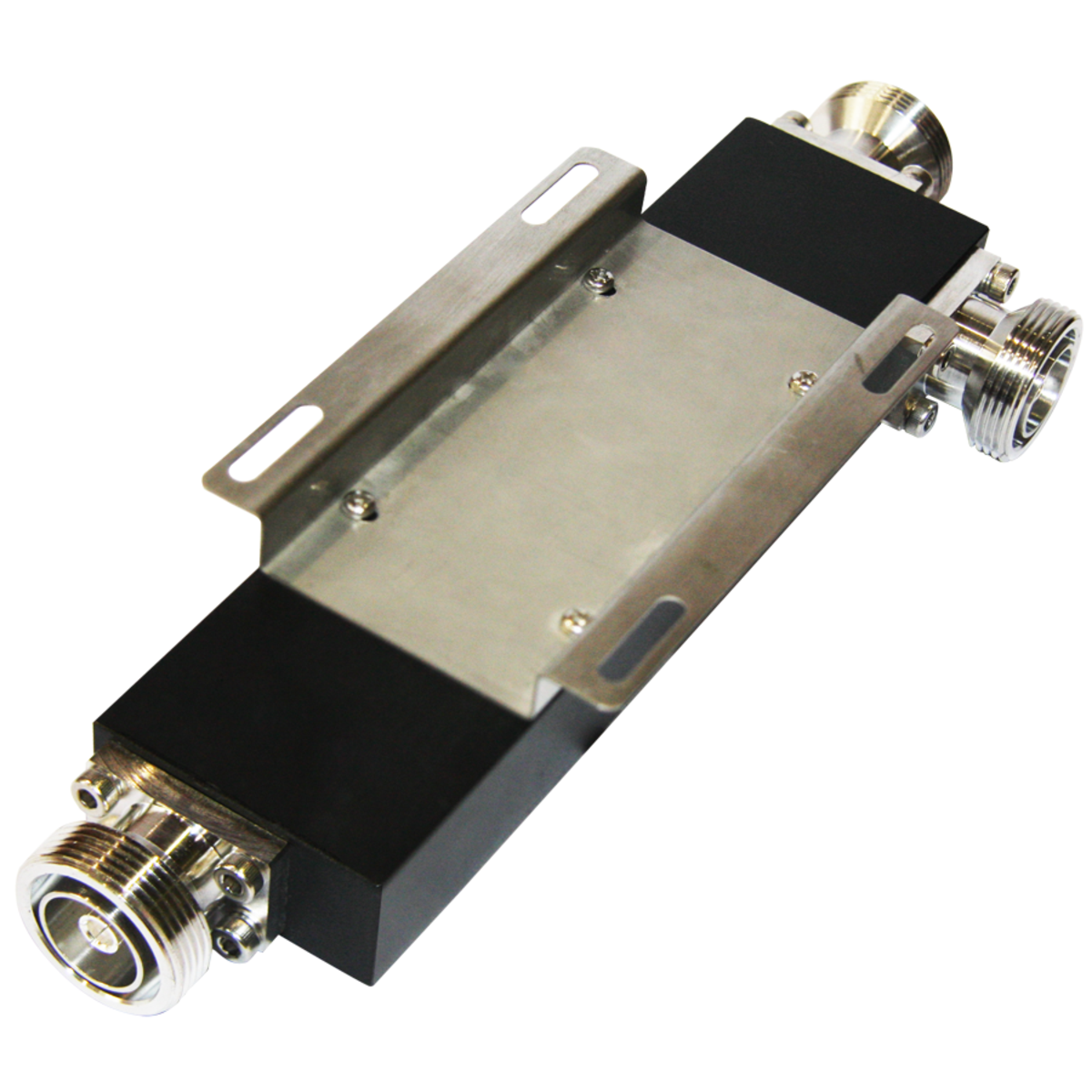

RFI SP3827-2330-DIN Directional Coupler, 3 Port, 30 dB, 380-2700 MHz, 200W, DIN-Female

    RFI SP3827-2330-DIN Directional Coupler, 3 Port, 30 dB, 380-2700 MHz, 200W, DIN-Female

      Product form
      Brand:
      Item ID:
      168018964
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      SP3827-2330-DIN

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Directional Coupler 3 Port 30 dB 380-2700 MHz 200W; DIN(F), used in a variety of RF combining, sampling and power splitting applications.

      Available

      $601.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI Directional Coupler 3 Port 30 dB 380-2700 MHz 200W; DIN(F)

        Features:

        • Multi-Band 380-2700 MHz covering UHF and Cellular bands.
        • Low PIM ≤ -150 dBc (3rd Order 2x43 dBm carriers).
        • Primarily used for optimising feeder cable signal distribution.
        • Suitable for use with simplex and duplex channels, analogue or digital radio communications.
        • Optional N Female termination connector SP3827-23xx-11 range available.
        • Wide range of coupling values.
        • Environmental IP 67 Rating.
        • Includes S/S Mounting bracket.

        Documents:

        RFI SP3827-2330-DIN Directional Coupler - Datasheet

        Product Specifications

        MPN SP3827-2330-DIN
        Brands RFI
        Component type Directional Coupler
        Connector DIN(F)
        Coupled loss db 30
        Height 8
        Length 26
        Power rating watts 200
        Temperature range -30 to +60 C / -22 to +140 F
        Width 15
