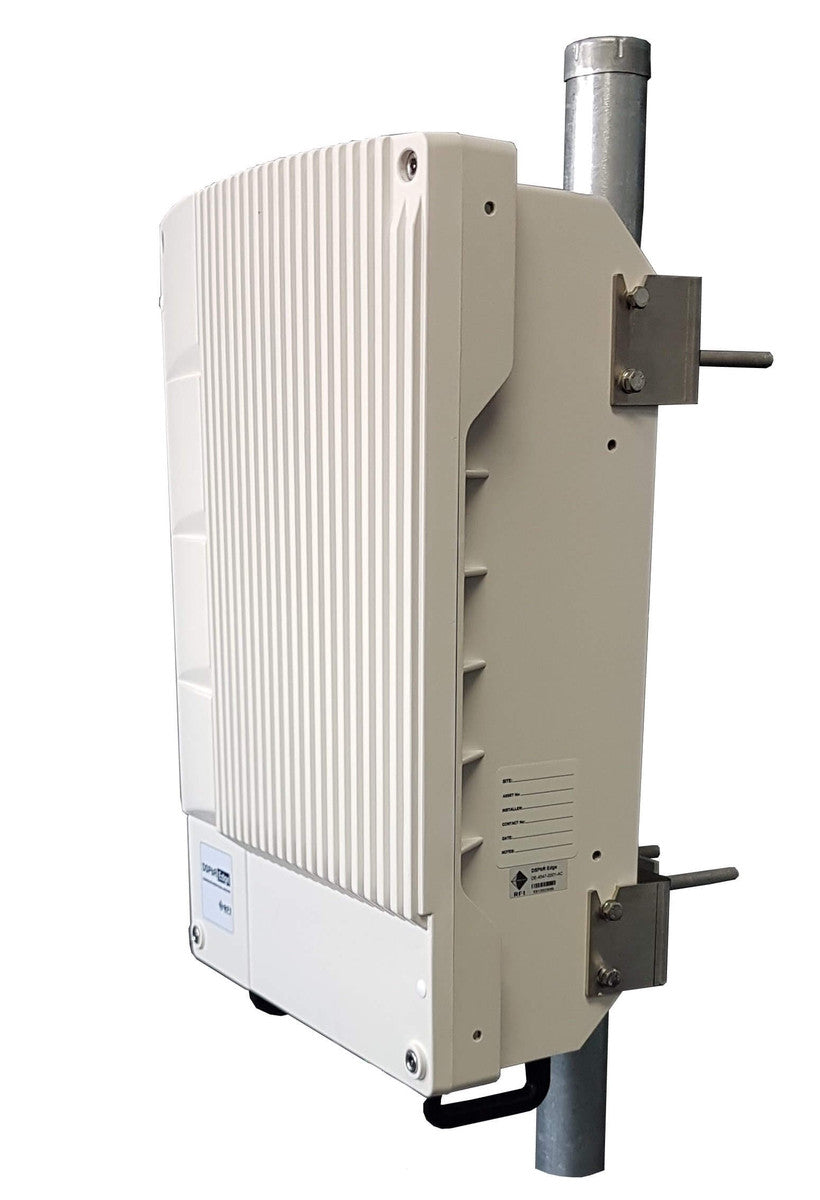

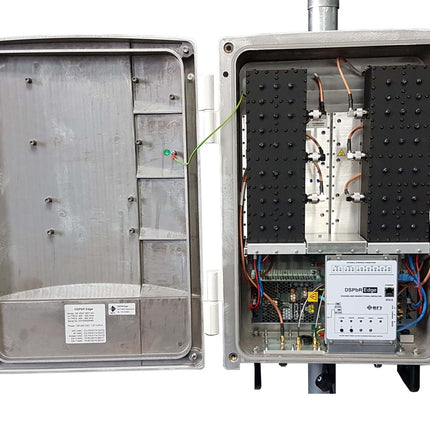

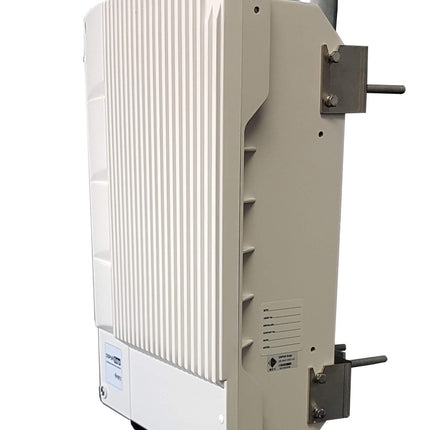

This unit is a compact IP-rated wall, pole or 19in rack mountable, RF-transparent, digital channel selective repeater. It is fully programmable, on a per channel basis, and can provide up to 8 RF off-air bi-directional channels in one chassis. Additional channels or frequency bands can be added by expanding to multiple chassis. Stand-alone, point-to-point or point-to-multipoint configurations can be implemented. The DSPbR EDGE is ideal for in-building and in-tunnel coverage rebroadcast and enhancement, with its per-channel user-configurable channel frequency and bandwidth, signal gain, receive signal gating, RF output power and other parameters suiting a wide range of deployment applications. The DSPbR EDGE™ RF-transparent operation is secure and compatible with most analogue and digital technologies, with network features like encryption and over-the-air-rekeying being passed unchanged. An optional Trunking Extender (TRex) feature uses an innovative frequency and control channel manipulation techniques to provide unique coverage enhancement capabilities for P25 Phase I and II networks. The modular architecture of the DSPbR EDGE provides user-friendly, convenient and efficient in-field firmware upgrading and equipment maintenance. Innovative design, compact size and a feature-rich configurability make the DSPR EDGE suited for a wide range of rebroadcast and coverage enhancement applications.

Key Features:

• Analogue and Digital compatible - supports most network technologies
• Secure RF-transparent operation - supports encryption, over-the-air-rekeying, etc
• Up to 8 bi-directional channels
• On-frequency, frequency-translating or P25 Trunking Extender operation, (in-band or cross-band)
• Programmable parameters per-channel, and independently in uplink and downlink
• Onboard multi-band cellular modem (Wi-Fi and BT in future release)
• Configurable Simulcast RF delay, independently by channel in UL or DL
• AC power supply (and redundant PSU option)
• Compact IP-rated enclosure suits wall, pole or 19in rack mounting

Available Models:

• 450-470 MHz, Internal Duplexer, 90-264 VAC MPN: DE-4043-0001-AC
• 400-430 MHz, Internal Duplexer, 90-264 VAC MPN:DE-4547-0001-AC Includes P25 Trunking Extender (TRex)

Documents:

RFI DSPbR Edge - Datasheet RFI DSPbR Edge - User Manual RFI DSPbR Trunking Extender - Datasheet Rebroadcast Sites for Coverage Enhancement - User Guide Trunking Extenders to Enable Coverage Enhancement - User Guide DSPbR Edge with TRex - Datasheet RFI DSPbR Edge - FAQ
