RFI DSPbR Repeater for VHF, UHF, 700, 800 MHz Bands

    RFI DSPbR Repeater for VHF, UHF, 700, 800 MHz Bands

      Product form
      Brand:
      Item ID:
      167018074
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      DSPbR

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI DSPbR Repeater is a plug'n'play modular design, compact size, and a feature-rich configurability. Supports VHF, UHF, 700, 800 MHz frequency bands.

      Price on Application

      Product Description

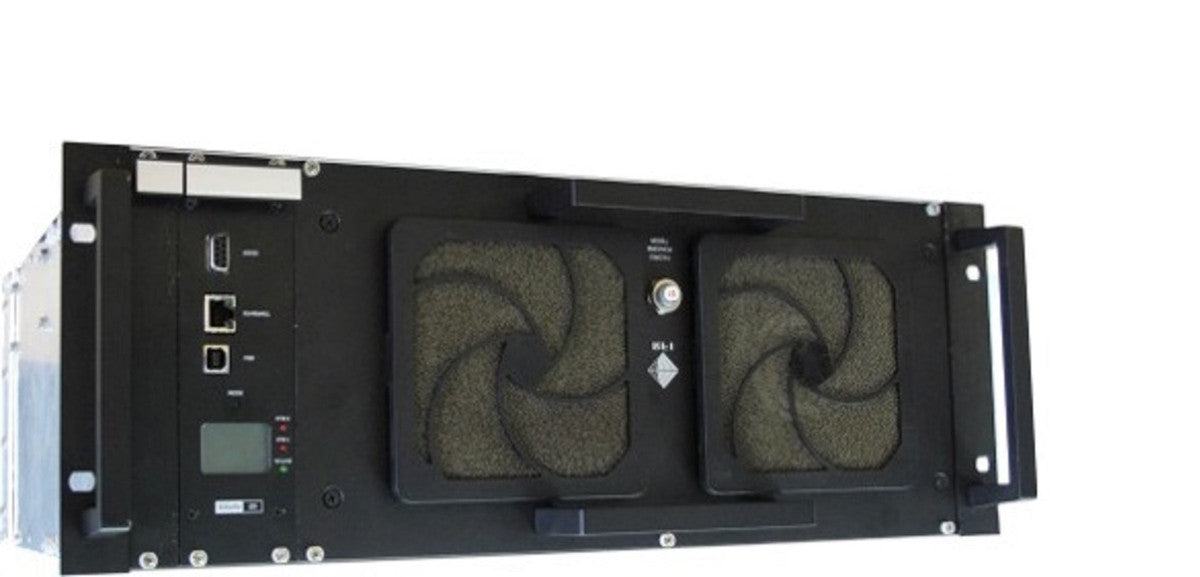

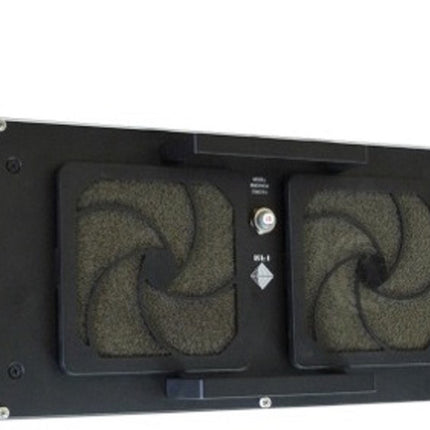

      RFI DSPbR Repeater is a compact 19" rack mountable, RF-transparent, digital channelised repeater. Non-frequency translating or frequency-translating operation can be provided - either within one frequency band - or cross-band. The DSPbR is fully programmable, on a per-channel basis, and can provide the rebroadcast of one or multiple channels that can be connected off-air, locally coupled or fibre-fed, in one or more frequency bands. Point-to-point, point-to-multipoint, drop-and-insert, RFOF Summing and Simulcast configurations are all available using the DSPbR product platform. The DSPbR is a plug'n'play modular design is capable of providing high per-channel RF output powers to deliver large outdoor coverage footprints or to drive large in-building or in-tunnel Distributed Antenna Systems (DAS). Low per-channel RF output power configurations can also be deployed to provide small black-spot coverage infill or to drive small-scale DAS designs. Many operational parameters are configurable through the user-friendly integral webserver GUI - including per-channel frequency, gain, channel bandwidth, RF output power, input signal level gating, alarm thresholds and reporting. Connectivity to the DSPbR is available via TCPIP, USB, RS232 or integral cellular modem. External inputs can also be monitored, such as equipment cabinet door switches, that can be included in the DSPbR's alarm monitoring and reporting. Alarms can be provided via SNMP Traps, Email (SMTP), SMS, or dry relay contacts. Innovative design, compact size and a feature-rich configurability make the DSPR series suited for a wide range of outdoor, in-building, in-tunnel and other specialised rebroadcast and coverage enhancement applications.
      • Analogue and Digital compatible - supports most network technologies
      • Secure RF-transparent operation - supports encryption, over-the-air-rekeying, etc
      • Up to 8 high-power or up to 12 low-power RF off-air bi-directional channels
      • Up to 16 high-power or up to 24 low-power fibre-fed bi-directional channels
      • On-frequency or frequency-translating operation, in-band or cross-band
      • Programmable parameters per-channel, and independently in uplink and downlink
      • Onboard GPS and multi9-band cellular modem
      • TCPIP, USB, RS232 or Cellular Modem connectivity
      • Configurable for RFOF Summing, RF Simulcast, and Fibre connectivity
      • Compact Size - 19" 4RU Rack Mounting with DC or AC power supply options
      • Hot swappable, modular plug'n'play architecture for easy upgrading and maintenance

      Documents:

      RFI DSPbR - Datasheet RFI DSPbR - User Manual RFI DSPbR - Product Overview RFI DSPbR Trunking Extender - Datasheet RFI Rebroadcast Sites for Coverage Enhancement - User Guide RFI Trunking Extenders to Enable Coverage Enhancement - User Guide RFI DSPbR - Features

      Product Specifications

      MPN DSPbR
      Brands RFI
      Frequency mhz 450-470, 470-490, 500-520, 480-500, 132-152, 150-174, 403-420, 410-430, 430-450, 746-766, 786-806, 805-825, 850-870
      Height 17.8
      Length 48.3
      Power supply 24VDC, 48VDC or 85-265VAC 50/60Hz
      Rf output level Analogue, APCOP25 P1, DMR, MotoTrbo, EDACs, etc VHF/UHF Bands +10 to +45dBm, 7/800MHz +10 to +43dBm. APCOP25 P2, TETRA VHF/UHF Bands +10 to +36dBm, 7/800MHz +10 to +34dBm
      Temperature range -30? C to +60? C / -22? F to 140? F
      Weight inc frame 38kgs / 83.6lbs (typical fully populated chassis configuration)
      Width 46
