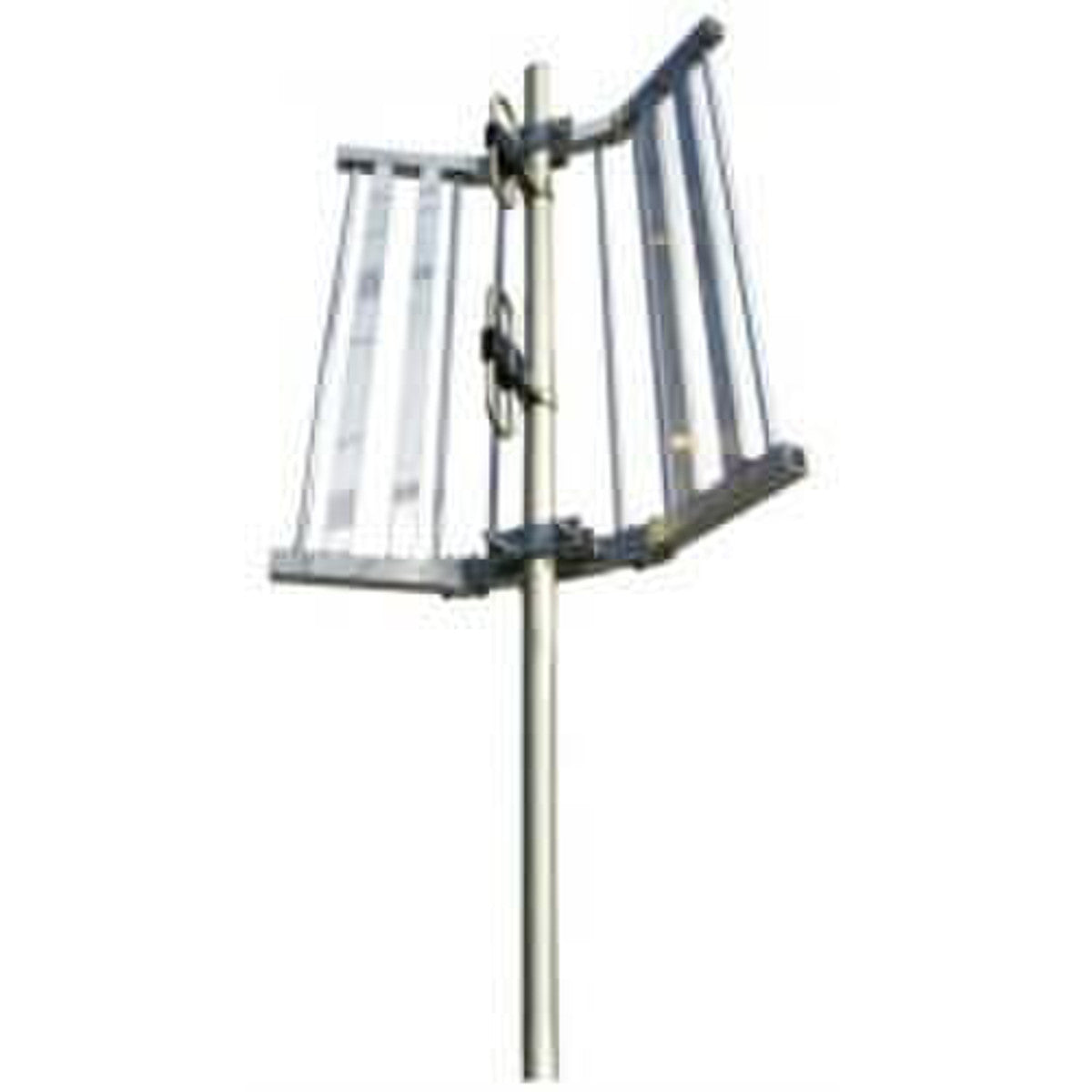

The RFI CSA20-67-P Dual Dipole Antennawith Corner Screen (406-512 MHz) is part of the innovative CSA Series arrays, based on popular SMD and dipole array designs. These antennas are delivered in flatpack packaging for easy transportation and assembly on site. Featuring solid construction, the folded dipoles use an internal phasing harness in PTFE-based double-screened coaxial cable with a polyethylene jacket, designed to minimize PIM occurrence. These rugged antennas offer excellent radiation characteristics, DC grounding for lightning protection, and low static noise.

Product Features:

• The RFI CSA20-67-P antenna features an offset (cardioid) pattern with a 70-degree nominal horizontal beamwidth, providing tailored coverage.
• It has a high front-to-back ratio, enabling frequency re-use by tailoring coverage areas.
• The internal harness is hermetically sealed and PTFE-based, capable of 500W continuous operation, ensuring durability and performance.
• The antenna is shipped unassembled for ease of handling and simple assembly on site.
• It is directly DC grounded, providing lightning protection and reducing precipitation static noise.
• The antenna boasts industry-leading PIM ratings of -140 dBc, ensuring low intermodulation and noise characteristics.

Application Areas:

• This antenna is ideal for communication systems requiring tailored coverage areas.
• It is suitable for environments where frequency re-use is necessary, providing robust performance.
• This device is perfect for IT and data centers, offering dependable connectivity for critical equipment.

In the Box:

• 1x RFI CSA20-67-P Dual Dipole Antenna with Corner Screen and 4.3-10 Female Connector
