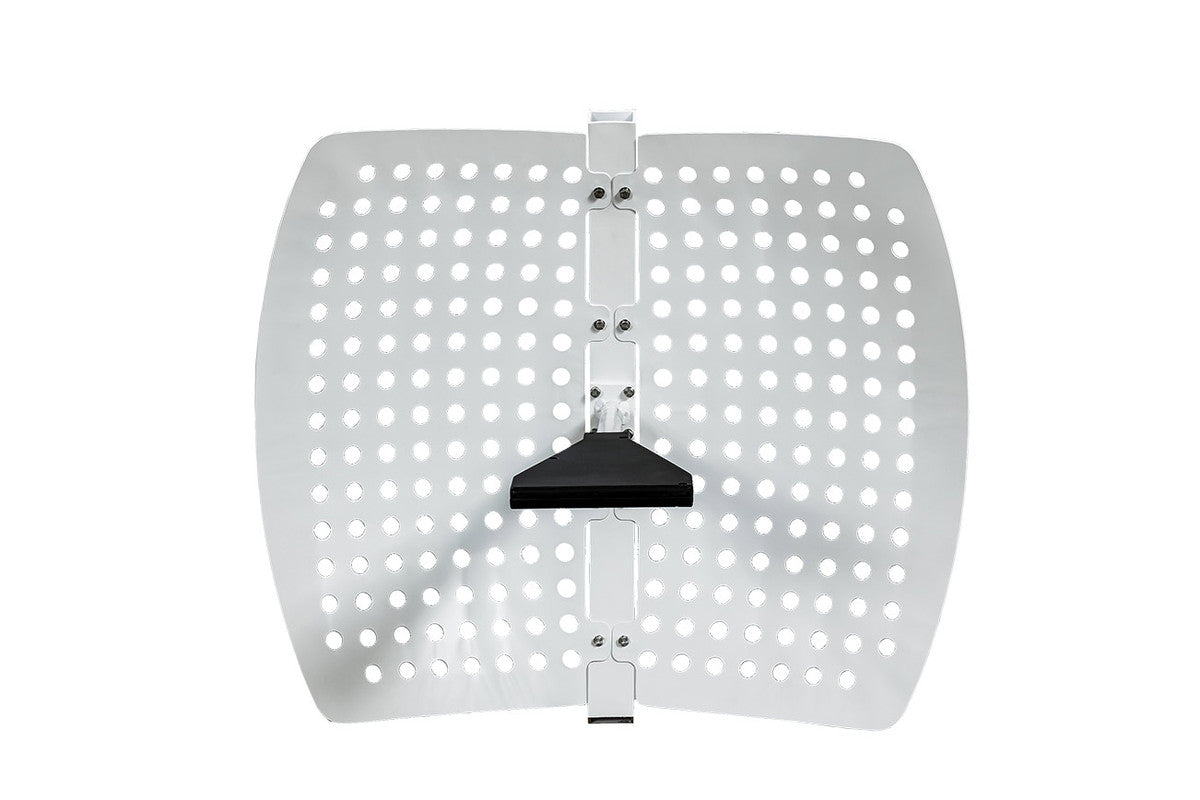

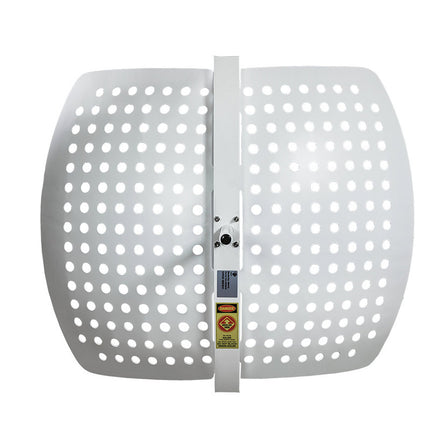

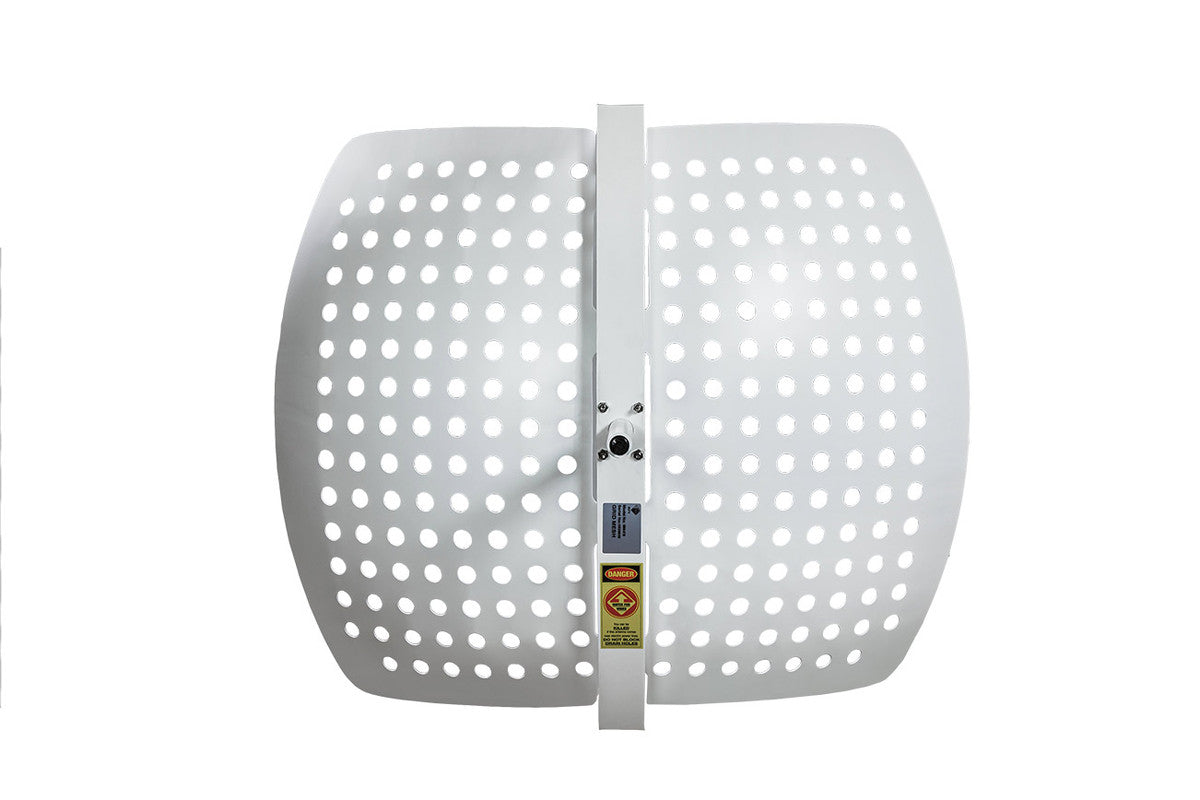

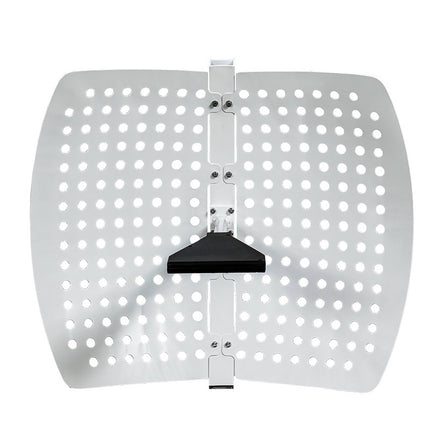

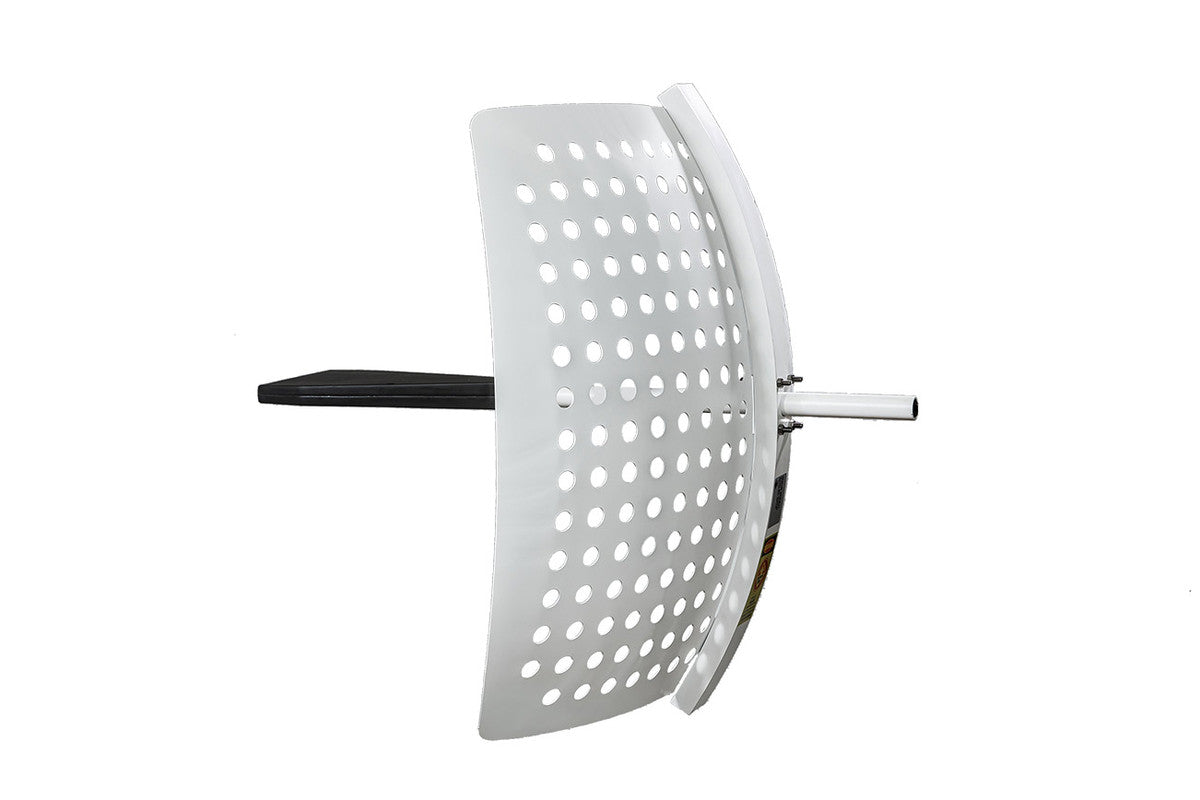

RFI GM06-0738 Mesh Parabolic Antenna, 698-3800 MHz, 0.6m, 4.3-10-Female

    RFI GM06-0738 Mesh Parabolic Antenna, 698-3800 MHz, 0.6m, 4.3-10-Female

      Product form
      Brand:
      RFI
      Item ID:
      167014197
      Export:
      Restricted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      GM06-0738
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI GM06-0738 Mesh Parabolic antenna (698-3800 MHz); 0.6m 4.3-10(F) has been designed to maximise throughput for modern LTE/5G repeater systems.

      $652.00 incl. GST

      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      RFI GM06-0738 mesh parabolic antenna mesh mini-grid is a lightweight yet ruggedized parabola grid providing highly reliable point-to-point communication. Utilising PCB manufacturing techniques, this grid offers best-in-class reliability and performance, with Low PIM performance, high reliability, pattern stability, and more importantly, repeatability. Although this antenna is highly durable in design, wind loading and weight has been reduced, through respective design elements, including tubular aluminum, and lightweight, UV stabilised ABS radome and PCB element. By purchasing an optional GA Clamp, you can achieve full articulation and polarisation adjustment, offering more assistance and improvement in time during installation.

      Features:

      • Full band solution, 698-3800 MHz coverage
      • Vertical, Horizontal, or ±45 linear polarisation
      • Easy installation
      • Clamp options available
      • Lightweight yet durable design

      Documents:

      RFI GM06-0738 Mesh Antenna - Datasheet RFI GM06-0738 Mesh Antenna - Installation Guide

      Product Specifications

      MPN GM06-0738
      Antenna application Base Station Antenna, DAS Antenna
      Antenna cable type RG142
      Antenna features Multi Band Capable, Flying lead, PIM Rated, Directional
      Antenna port connectors 4.3-10 (F)
      Antenna type Directional SISO, Directional Grids
      Brands RFI
      Cable length m 0.5
      Connector 4.3-10 (F)
      Construction Aluminium
      Coverage type Directional
      Frequency band Multi-Band 700-3800 MHz, Multi-Band 700-2800 MHz
      Front back ratio db 15/30/30
      Height 40
      Horizontal beamwidth 27/13/9
      Installation type External mounting
      Length 67
      Low pim Yes
      Max frequency mhz 3800
      Max gain dbd dbi 24
      Mimo support No
      Min frequency mhz 698
      Min gain dbd dbi 10
      Mount supported Clamp mount
      Mount supported detailed GM clamp
      No of antenna ports 1
      Nominal gain dbi 41933
      Pim 3rd 2x20 w dbc -140
      Polarisation Linear
      Power rating watts 50
      Power w 100W
      Technologies supported 4G, 5G
      Termination 0.5 meters RG142 cable terminated with 4.3-10 female
      Torque nm 169
      Vertical beamwidth 27/11/9
      Vswr 2.0:1
      Width 67
      Wind gust km h 240
      Wind load 160km h n 240
      Wind thrust 1010
