RFI GPS3-5M-SMA-BKT Dual Mount GPS Antenna, 1592-1610 MHz, 5m, SMA-Male with Bracket

RFI GPS3-5M-SMA-BKT Dual Mount GPS Antenna, 1592-1610 MHz, 5m, SMA-Male with Bracket

Available

Brand:
Item ID:
168014206
Export:
Accepted
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
GPS3-5M-SMA-BKT
Send Request for Quote (RFQ)
RFI GPS3-5M-SMA-BKT Dual Mount GNSS Antenna; 5m SMA(M) + Bracket can be mounted under any mobile antenna using a 13-16mm stud.
Regular price $101.50
Regular price $0.00 Sale price $101.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI GPS3-5M-SMA-BKT is a GPS antenna designed for reliable reception of RHCP GPS and GLONASS signals within the 1592–1610 MHz frequency range. It incorporates a unique low-noise amplifier (LNA) circuitry that enhances signal quality and ensures stable performance in various environments. This model includes a mounting bracket for secure and fixed installations.

Product Features:

  • The antenna operates across the 1592–1610 MHz frequency range, supporting both GPS and GLONASS signals.
  • This model includes a 5m cable terminated with a SMA-Male connector for straightforward integration.
  • The antenna features a unique low-noise amplifier design that provides good gain and excellent carrier-to-noise performance.
  • It can be mounted using an integrated magnetic base or adhesive pad, offering flexibility in placement.
  • It is designed to be weatherproof, making it suitable for outdoor use in various environmental conditions.
  • This version includes a mounting bracket for enhanced installation stability.

Application Areas:

  • The antenna is suitable for GPS and GLONASS signal reception in mobile or fixed installations.
  • It is ideal for use in fleet tracking and asset monitoring systems.
  • This antenna can be deployed in remote telemetry applications requiring reliable satellite signal reception.
  • It is a practical solution for outdoor environments where weather resistance is essential.

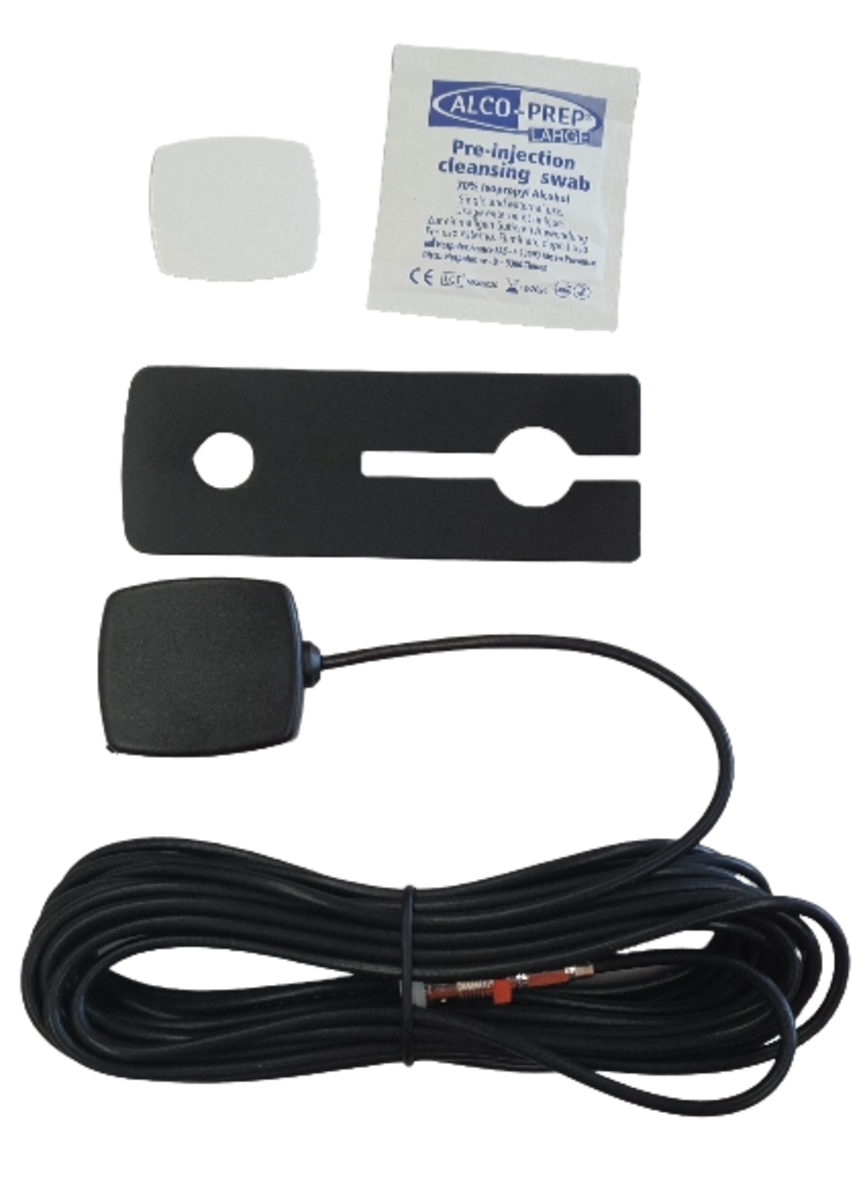

In the Box:

  • 1x RFI GPS3-5M-SMA-BKT (5m cable, SMA-Male)
Other Options available upon request, please consult your sales representative.

Documents:

RFI GPS3-5M-SMA-BKT Antenna - Datasheet
