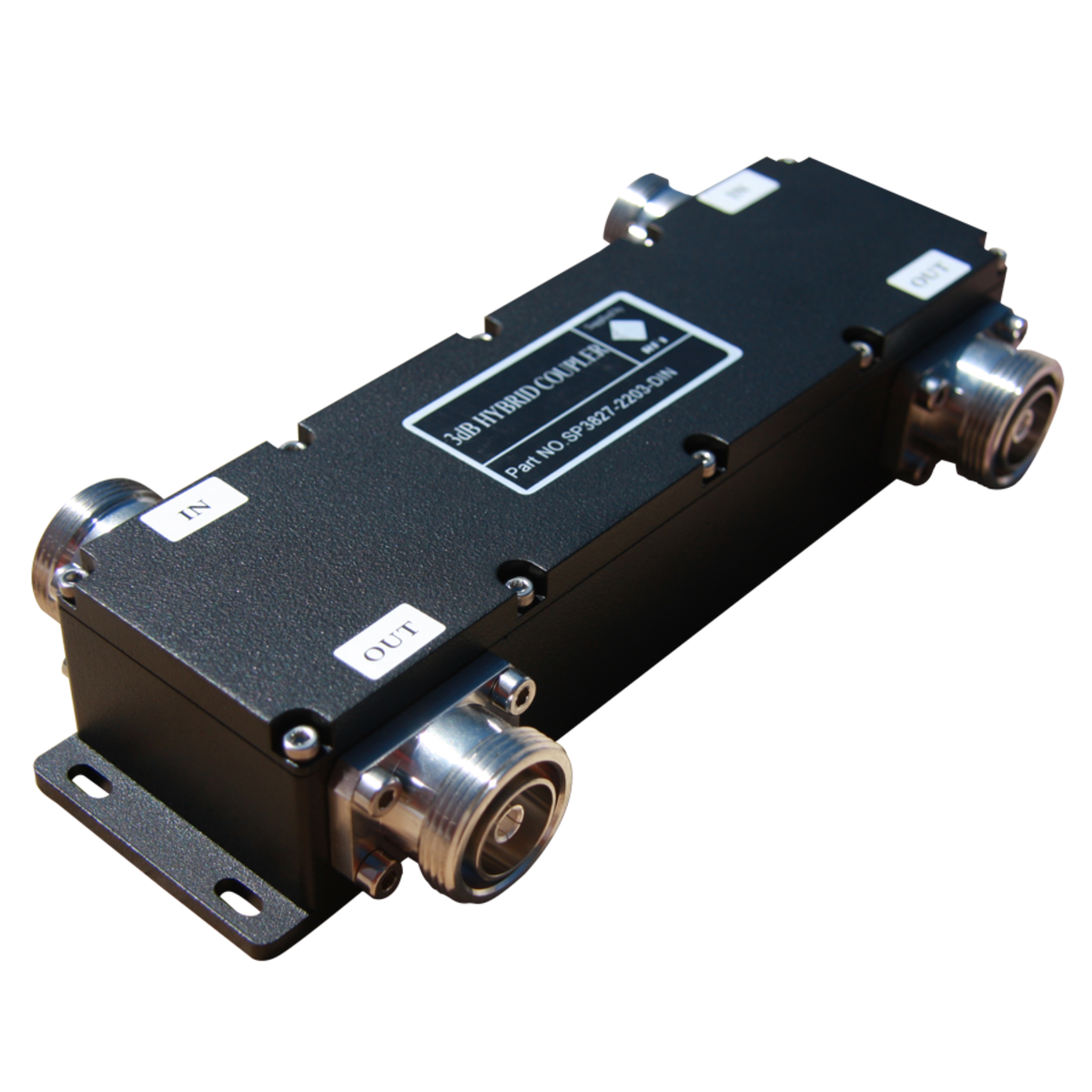

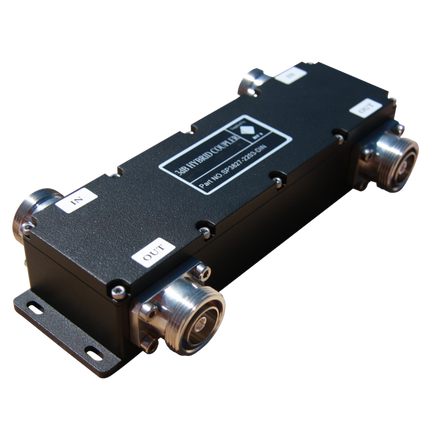

RFI SP3827-2203-DIN Hybrid Coupler, 4 Port, 3 dB, 380-2700 MHz, 200W, DIN-Female

    RFI SP3827-2203-DIN Hybrid Coupler, 4 Port, 3 dB, 380-2700 MHz, 200W, DIN-Female

      Product form
      Brand:
      Item ID:
      168018947
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      SP3827-2203-DIN

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Hybrid Coupler 4 Port 3 dB 380-2700 MHz 200W; DIN(F), Designed to IP65 the Hybrid Coupler can be used in both indoor and outdoor applications.

      Available

      $1,034.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI Hybrid Coupler 4 Port 3 dB 380-2700 MHz 200W; DIN(F)

        Features:

        • Broadband 380-2700 MHz covering UHF PMR and cellular bands.
        • Low Insertion Loss

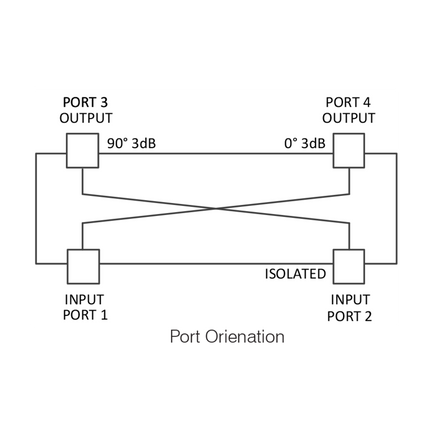

        • High Isolation (Ports 1 & 2) across full bandwidth >23 dB
        • Suitable for use in high power multi-carrier transmission systems
        • Manufactured to a low PIM ? -150 dBc rating (3rd Order 2x43 dBm carriers).
        • PIP Rating of 3 kW
        • Average Power rating of 200W
        • Environmental IP 65 rating

        Documents:

        RFI SP3827-2203-DIN Hybrid Coupler - Datasheet

        Product Specifications

        MPN SP3827-2203-DIN
        Brands RFI
        Component type Hybrid Coupler
        Connector DIN(F)
        Coupled loss db 3
        Finish Black - Painted
        Height 15
        Length 26
        Pim 3rd 2 43 dbm dbc < - 150dBc
        Power rating watts 200
        Return loss db 18dB (min)
        Temperature range -40?C to +60?C / -40?F to +140?F
        Width 8
