RFI SP3855-2203-11 Hybrid Coupler, 4 Port, 3 dB, 380-550 MHz, 200W, N-Female

    RFI SP3855-2203-11 Hybrid Coupler, 4 Port, 3 dB, 380-550 MHz, 200W, N-Female

      Product form
      Brand:
      Item ID:
      168018848
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      SP3855-2203-11

      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Hybrid Coupler 4 Port 3 dB 380-550 MHz 200W; N(F), are used in a variety of RF combining, sampling and power splitting applications.

      Available

      $362.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
        • Pay securely! All major cards accepted.

          shop pay

        Product Description

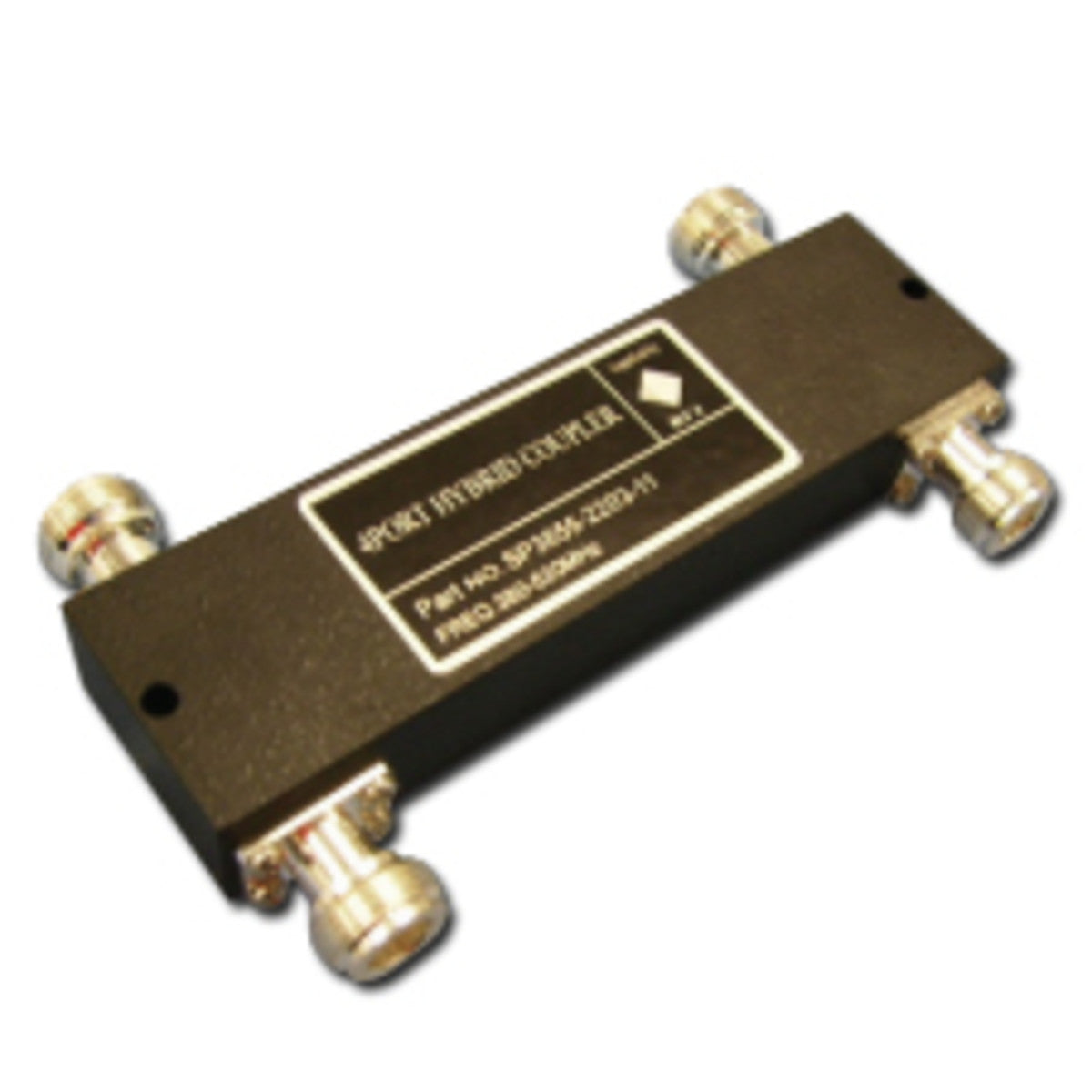

        RFI Hybrid Coupler 4 Port 3 dB 380-550 MHz 200W; N(F)

        • Couple multi-carrier inputs into balanced Output
        • Low PIM for Multi-carrier use
        • Compact and robust construction
        • Suitable for use with analogue or digital RF communications
        • Broadband covering multi-cellular bands
        • Termination connector options available on request
        • Optimise RF power levels through pre-determined coupling values
        • Wide operating temperature range

        Documents:

        RFI SP3855-2203-11 Hybrid Coupler - Datasheet

        Product Specifications

        MPN SP3855-2203-11
        Brands RFI
        Component type Hybrid Coupler
        Conn types all term ports N (F)
        Connector N(F)
        Coupled loss db 3
        Finish Black - Painted
        Height 26
        Length 15
        Power rating watts 200
        Temperature range -30? C to +60? C / -22? F to +140? F
        Width 8
