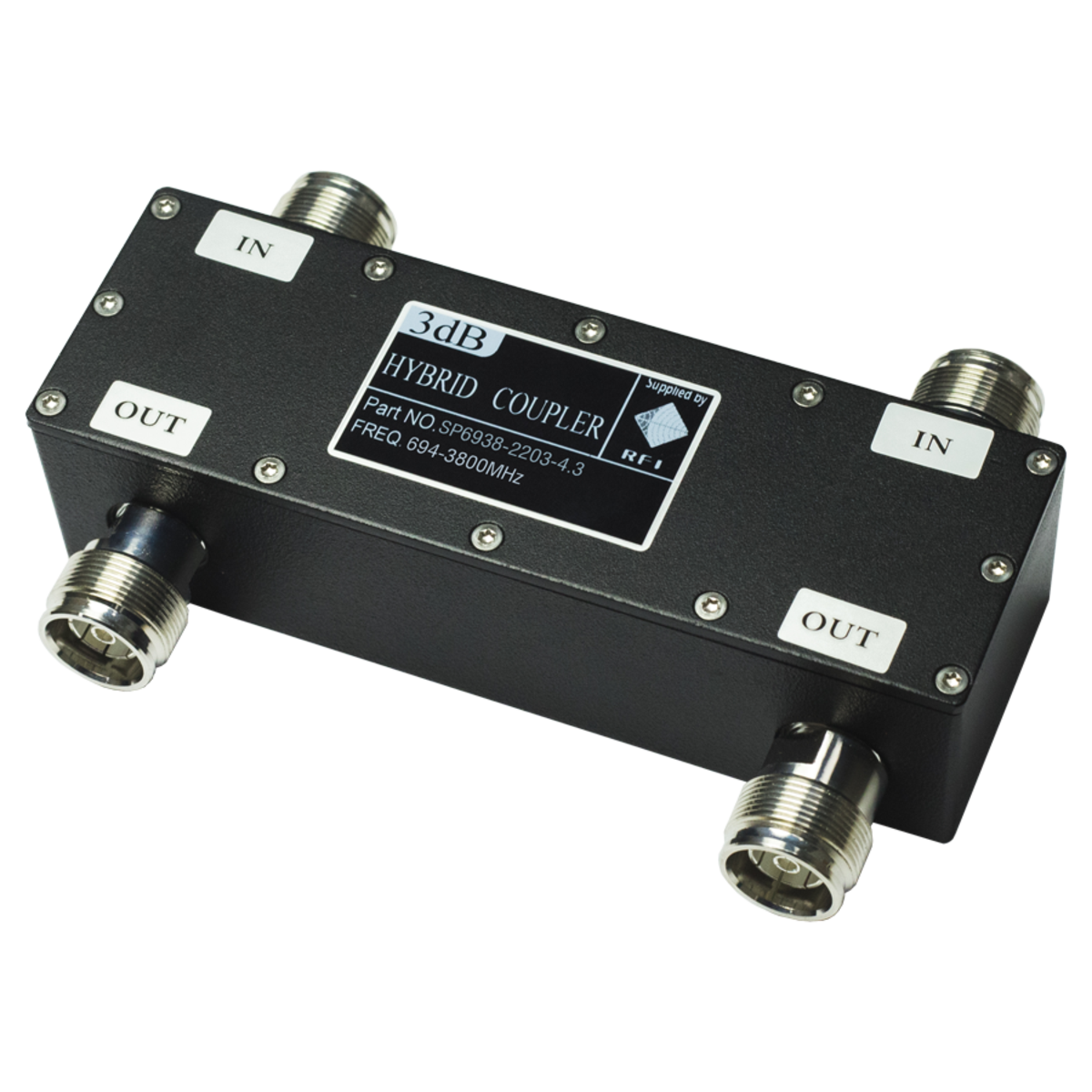

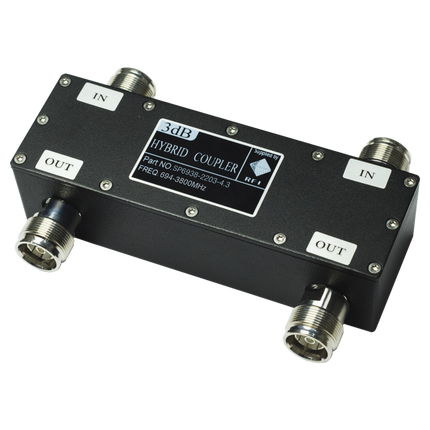

RFI Hybrid Coupler 4 Port 3 dB 694-3800 MHz 300W; 4.3-10(F)

The 2x2 and 4x4 Hybrid Couplers cover all cellular bands from 694 to 3800 MHz with a low loss Passive Inter-Modulation, high Peak Instantaneous Power and high environmental IP rating. Typically used to combine either in-band carriers or carriers across multiple bands to be fed into antenna feeders or In-Building leaky feeder or in-building Distributed Antenna Systems. Designed to IP67, the Hybrid Coupler can be used in both indoor and outdoor applications.

Features:

• Broadband 698-3800 MHz covering all cellular bands, including 5G
• Low Insertion Loss
• High Isolation (Ports 1 & 2) across full bandwidth >22 dB
• Suitable for use in high power multi-carrier transmission systems
• Manufactured to a low ? -160 dBc PIM rating (3rd Order 2x43 dBm carriers)
• PIP Rating of 1000W
• Average Power rating of 300W per port
• Environmental IP 67 rating
