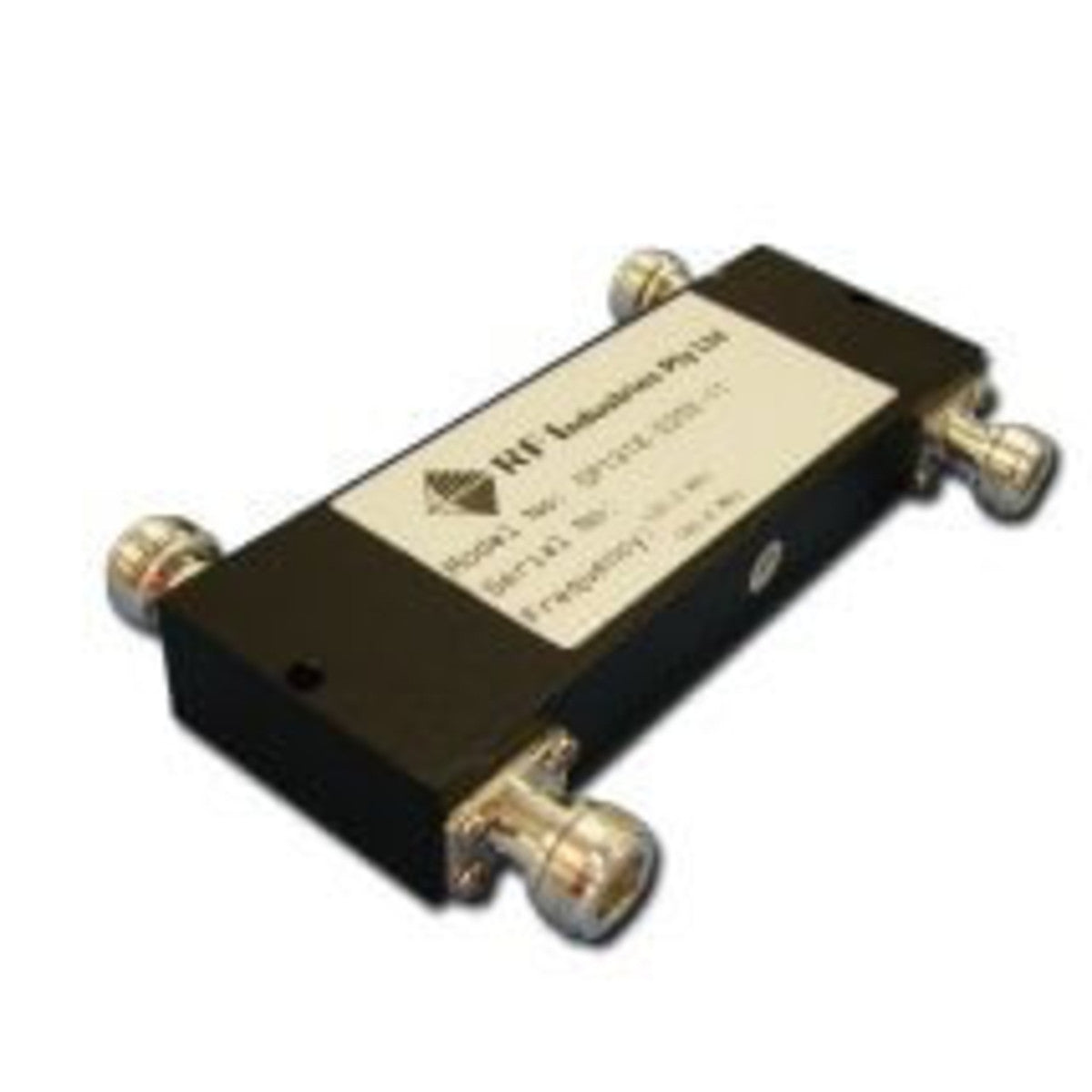

RFI SP1318-2207-11 Hybrid Coupler, 4 Port, 7 dB, 130-180 MHz, 200W, N-Female

    RFI SP1318-2207-11 Hybrid Coupler, 4 Port, 7 dB, 130-180 MHz, 200W, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      168018843
      Export:
      Accepted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      SP1318-2207-11
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Hybrid Coupler 4 Port 7 dB 130-180 MHz 200W; N(F), are used in a variety of RF combining, sampling and power splitting applications.

      Price on Application

      Product Description

      RFI Hybrid Coupler 4 Port 7 dB 130-180 MHz 200W; N(F)

      • Couple multi-carrier inputs into balanced Output
      • Low PIM for Multi-carrier use
      • Compact and robust construction
      • Suitable for use with analogue or digital RF communications
      • Broadband covering multi-cellular bands
      • Termination connector options available on request
      • Optimise RF power levels through pre-determined coupling values
      • Wide operating temperature range

      Documents:

      RFI SP1318-2207-11 Hybrid Coupler - Datasheet

      Product Specifications

      MPN SP1318-2207-11
      Brands RFI
      Component type Hybrid Coupler
      Connector N(F)
      Coupled loss db 7
      Frequency band VHF High Band
      Height 4.5
      Length 13.2
      Power rating watts 200
      Temperature range -30?to +60?C (-122?to +140?F)
      Width 2
