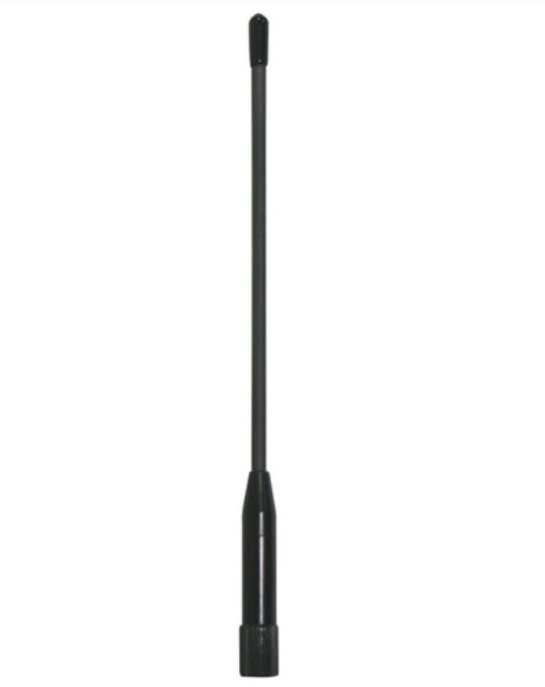

RFI ISM9-RDA-SMA Flexible Terminal Antenna, 900-940 MHz, 2 dBi, SMA-Male

    RFI ISM9-RDA-SMA Flexible Terminal Antenna, 900-940 MHz, 2 dBi, SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168016013
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      ISM9-RDA-SMA
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      ISM9-RDA is a slim flexible omni‐directional antenna from RFI with SMA male connector for the 900 MHz LoRa, LoRaWAN & ISM bands.

      Available

      $30.85

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI's ISM9-RDA is a 900 flexible terminal antenna that comes with an integrated SMA male connector and is ideal for indoor or outdoor use in Internet of Things (IoT) applications. It is specifically designed for the 900 MHz LoRa, LoRaWAN, and ISM bands. Read our article about IoT: Connected World - Internet of Things (IoT)

        Product Features:

        • Connector Mount.
        • Ground Dependent
        • Flexible Whip
        • Height ~ 177 mm

        Electrical Specifications:

        • Frequency MHz: 900-940
        • VSWR: <2.0:1
        • Gain dBi: 2
        • Impedance Ω: 50
        • Polarization: Vertical
        • Radiation Pattern: Omni-directional

        Mechanical Specifications:

        • Whip Material: Rubber Coated Steel Wire Rope
        • Length mm: 177
        • Weight kg: 0.175 (approx.)
        • Connector: SMA male
        • Ingress Rating: IP65
        • Operating Temperature °C: -20 to +65

        Documents:

        RFI ISM9-RDA-SMA Antenna - Datasheet

        Product Specifications

        MPN ISM9-RDA-SMA
        Antenna application Terminal Antenna
        Antenna configuration SISO
        Antenna features Omnidirectional
        Antenna port connectors SMA (M)
        Antenna type Ground Independent
        Band ISM900
        Brands RFI
        Coverage type Omni-directional
        Frequency band ISM Bands 300, 400 & 8/900 MHz
        Frequency mhz 900-940
        Height 3
        Ingress protection ip IP65
        Installation type Device mounting
        Ip rating IP65
        Length 20
        Low pim No
        Max frequency mhz 940
        Max gain dbd dbi 2
        Mimo support No
        Min frequency mhz 900
        Min gain dbd dbi 2
        Mount supported Connector mount
        Mount supported detailed Device mount
        No of antenna ports 1
        Nominal gain dbi 2
        Technologies supported ISM
        Temperature range -20 to +65 Degree Celsius
        Width 3
