RFI ISM9-SLP-1.5M-SMA ISM 900 MHz Low Profile Antenna (868-928 MHz); 1.5m SMA(M)

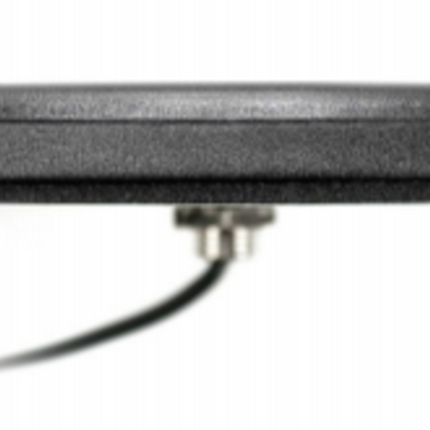

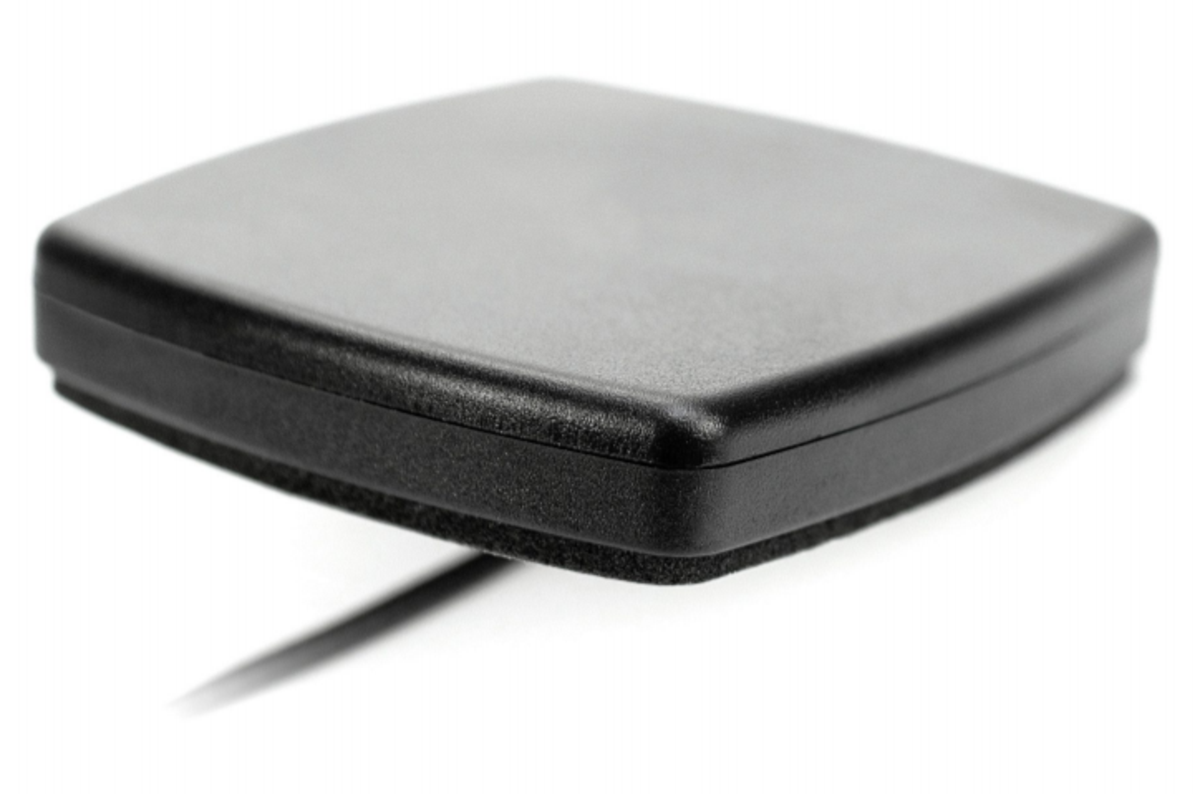

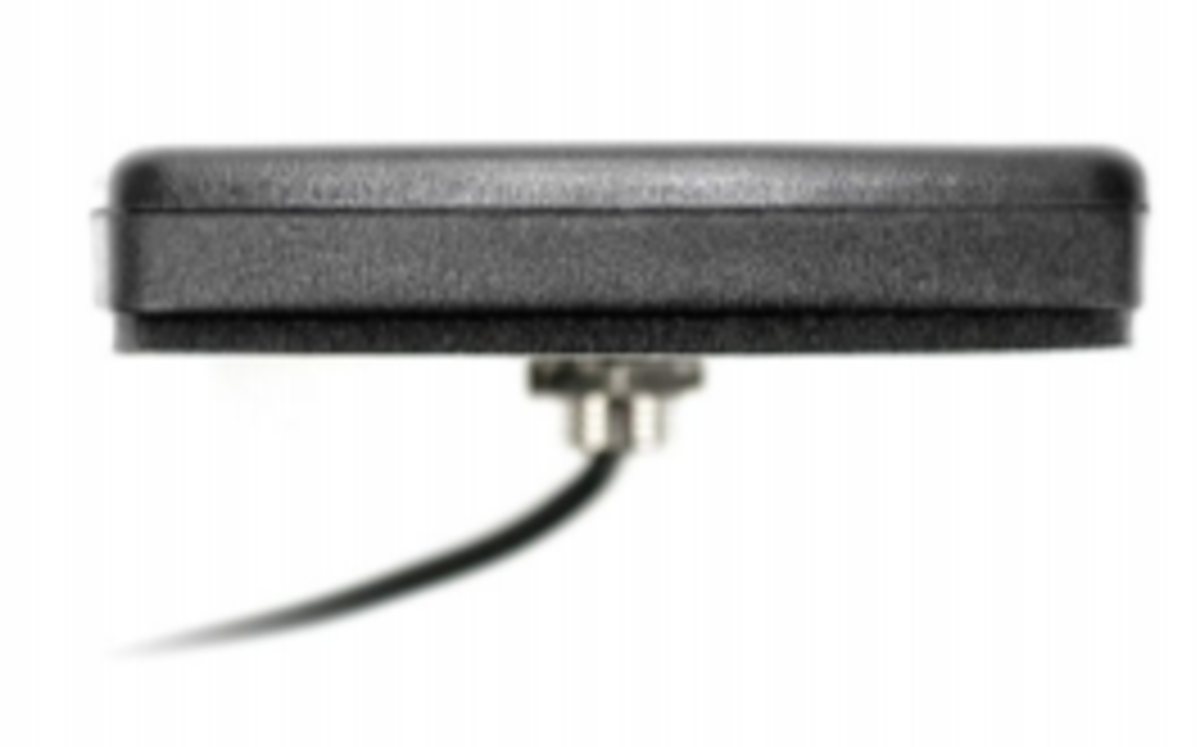

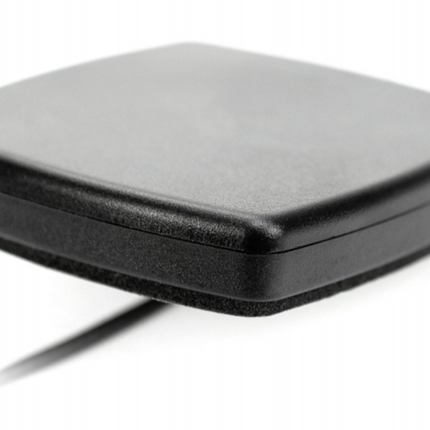

The RFI ISM9-SLP-1.5M-SMA ISM9-SLP Series is a high-performance 915 MHz ISM antenna designed for external use in both mobile and fixed applications. Featuring a PIFA radiating element housed in a UV-resistant, ruggedized ABC housing, this antenna is only 16 mm in height, making it resistant to vandalism or theft. ISM9-SLP is ideal for applications within ISM bands such as LoRa and SIGFOX.

Features:

• Compact, Low Profile Design: With a height of only 16 mm, this antenna offers a sleek and unobtrusive profile.

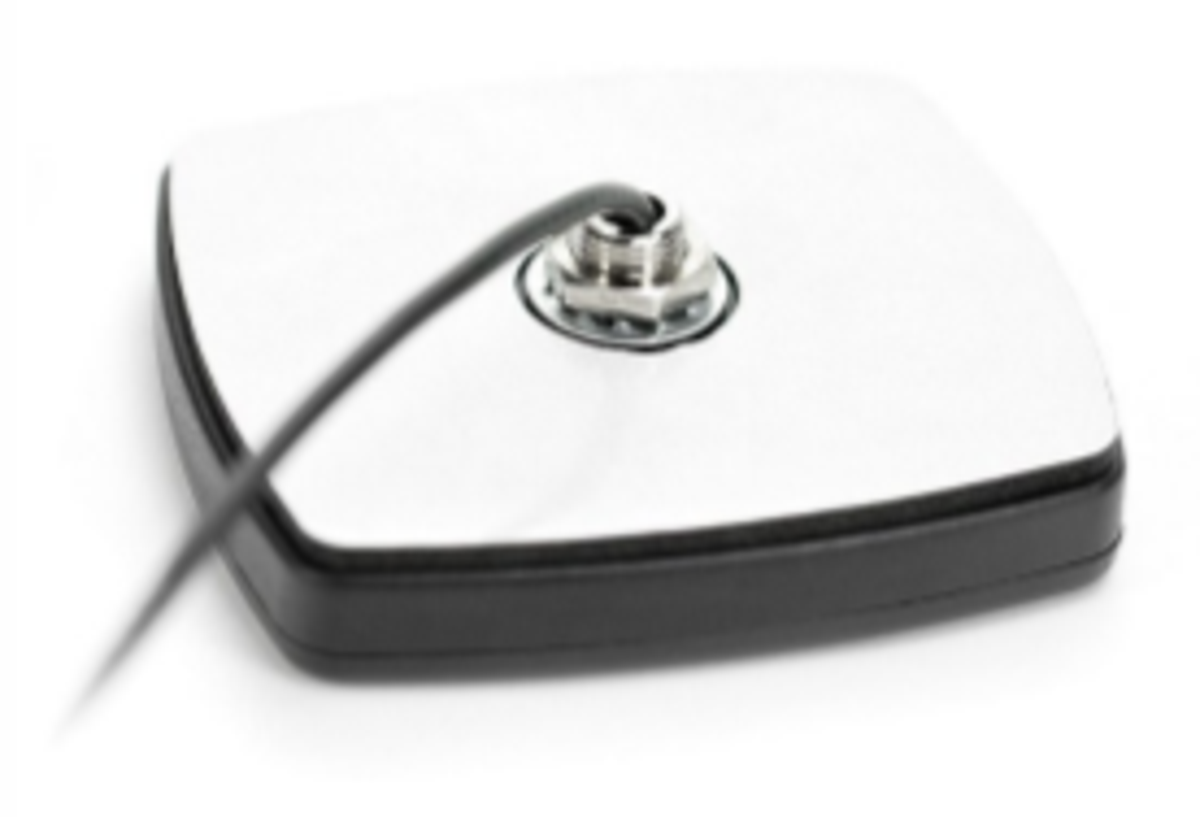

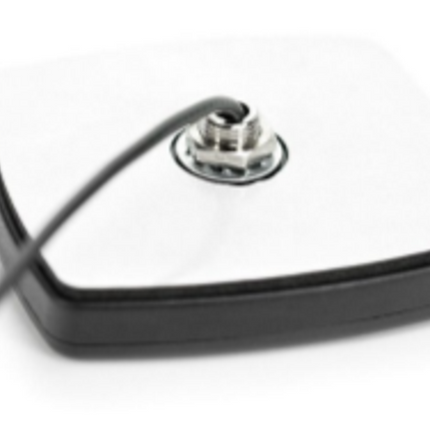

• Mounts via M10 Thread Stud and Nut: The antenna is easily mounted using an M10 thread stud and nut, providing a secure installation.
• IP65 Rating: With an IP65 rating, this antenna is protected against dust and water ingress, ensuring reliable performance in various environments.

Electrical Specifications:

• Band: 915 MHz ISM
• Frequency MHz: 902-928
• Gain dBi: 3 (Measure on a 300 mm x 300 mm ground plane)
• VSWR: <2.0:1
• Impedance Ω: 50
• Power W: 50
• Polarization: Vertical

Mechanical Specifications:

• Material: ABS
• Colour: Black
• Ingress rating: IP65

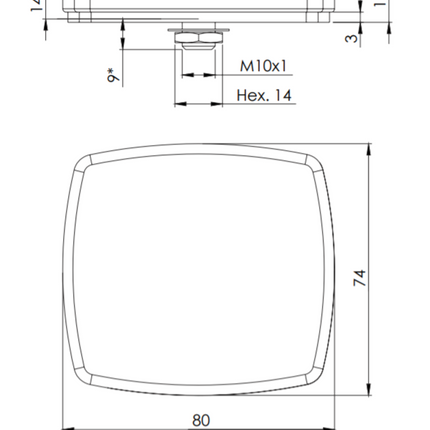

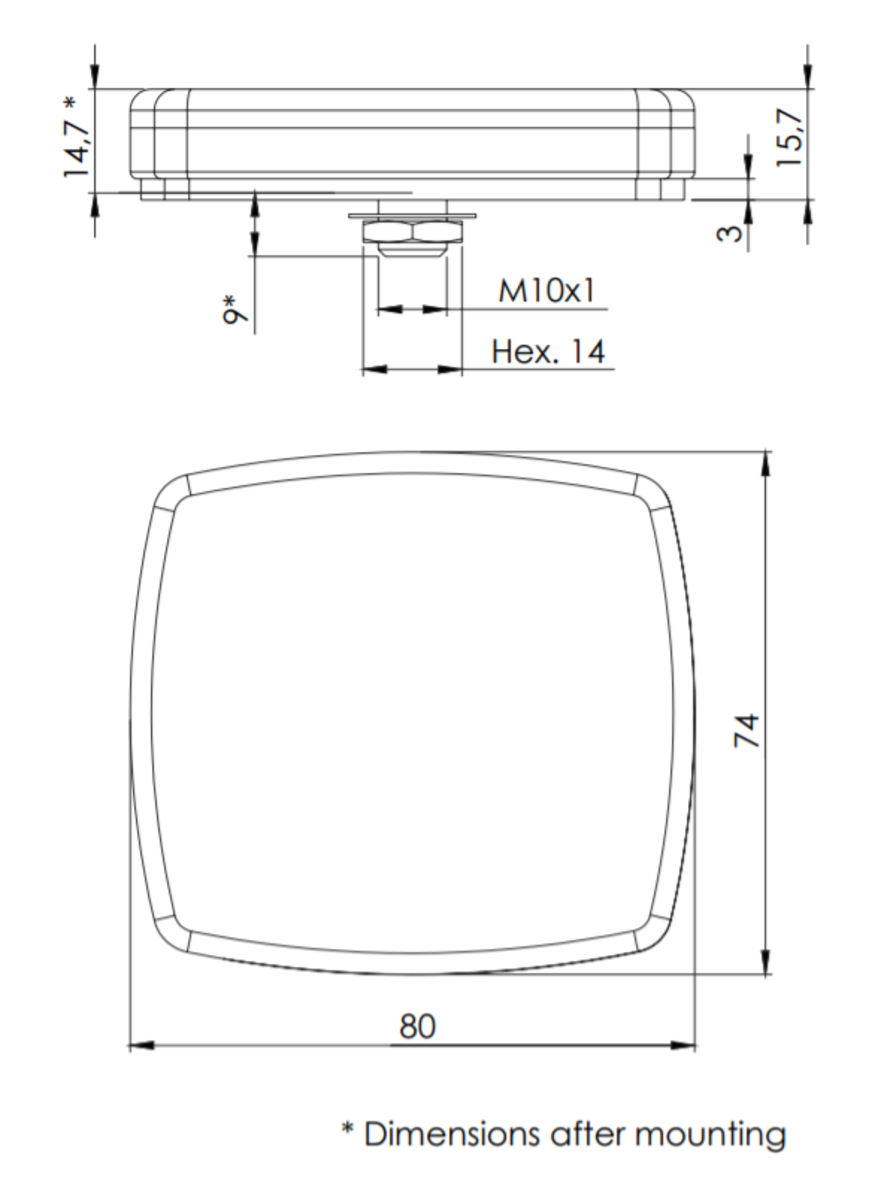

• Dimensions mm: 16(H) x 80(W) x 74(D)
• Weight grams: 95
• Cable / Connector: 1.5m RG174 cable terminated with SMA male connector
• Operating Temp °C: -40 to +85

Documents:

RFI ISM9-SLP-1.5M-SMA Antenna - Datasheet
