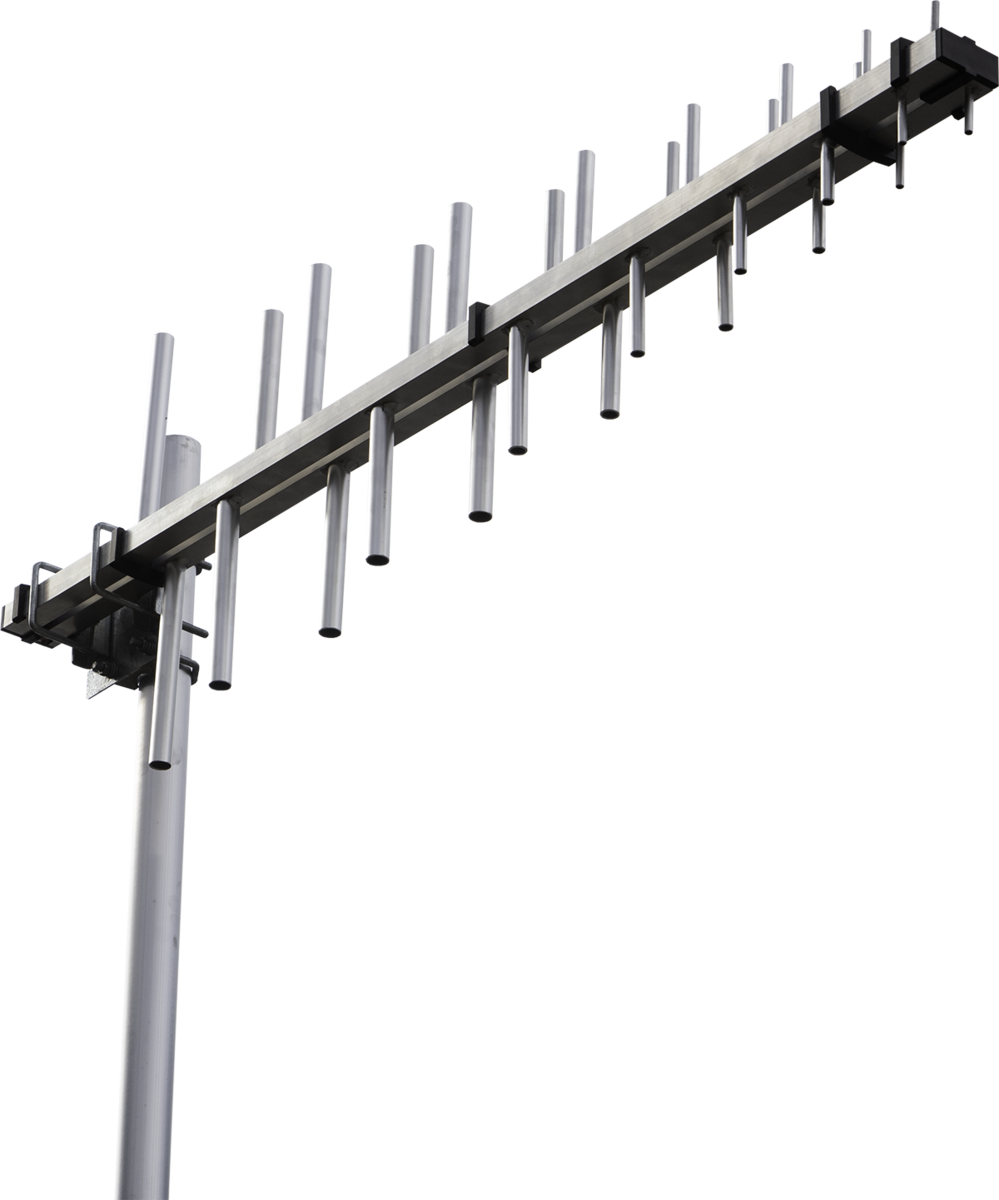

RFI LPDA3596-09 Log Periodic Antenna, 350-960 MHz, 9 dBi, 0.5m, N-Female

    RFI LPDA3596-09 Log Periodic Antenna, 350-960 MHz, 9 dBi, 0.5m, N-Female

      Product form
      Brand:
      RFI
      Item ID:
      167014258
      Export:
      Restricted
      Shipping:
      Not available to ship
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      LPDA3596-09
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI Log Periodic Dipole Antenna (350-960 MHz); Full Band Low PIM 0.5m N(F) using structural aluminium in a fully welded, low PIM design.

      Sold-out

      $730.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        Featuring a highly rugged design, this LPDA is constructed using RFI's low PIM welding techniques, offering a fully weather resistant design, with UV stable plastic fixtures and full ROHS compliance. With wideband performance, covering the full 350-960 Mhz, and -150 dBc PIM performance, this antenna is ideal for installation both standalone or even mixed technologies, requiring directional coverage, or donor antenna, etc.

        Features:

        • Wide band frequency range
        • Low PIM, rugged design
        • Excellent VSWR
        • Easy installation, mounting clamps supplied

        Product Specifications

        MPN LPDA3596-09
        Antenna application Base Station Antenna
        Antenna features Directional, Multi Band Capable, PIM Rated
        Antenna port connectors N (F)
        Antenna type Directional LPDA
        Brands RFI
        Cable length m 0.5
        Cable type 8142
        Coverage type Directional
        Frequency band 400, 700, 8, 800, 900 MHz, ISM Bands 300, UHF 380-520 MHz
        Front back ratio db 17
        Height 5
        Horizontal beamwidth 75
        Installation type External mounting
        Length 99
        Low pim Yes
        Max frequency mhz 960
        Max gain dbd dbi 7.0
        Mimo support No
        Min frequency mhz 350
        Min gain dbd dbi 7.0
        Mount supported Clamp mount
        Mount supported detailed Clamp mount
        Mounting area clamps supplied, Up to 60mm diameter pole
        No of antenna ports 1
        Pim 3rd order 2x20w dbc -150
        Polarisation Linear
        Power w 100.0, 100
        Technologies supported UHF
        Termination 0.5 meters RG142 cable terminated with N type female
        Torque nm 54.0
        Tuned bandwidth Full band.
        Vertical beamwidth 54
        Vswr <1.8:1
        Width 5
        Wind gust km h 196
        Wind thrust 129.0
