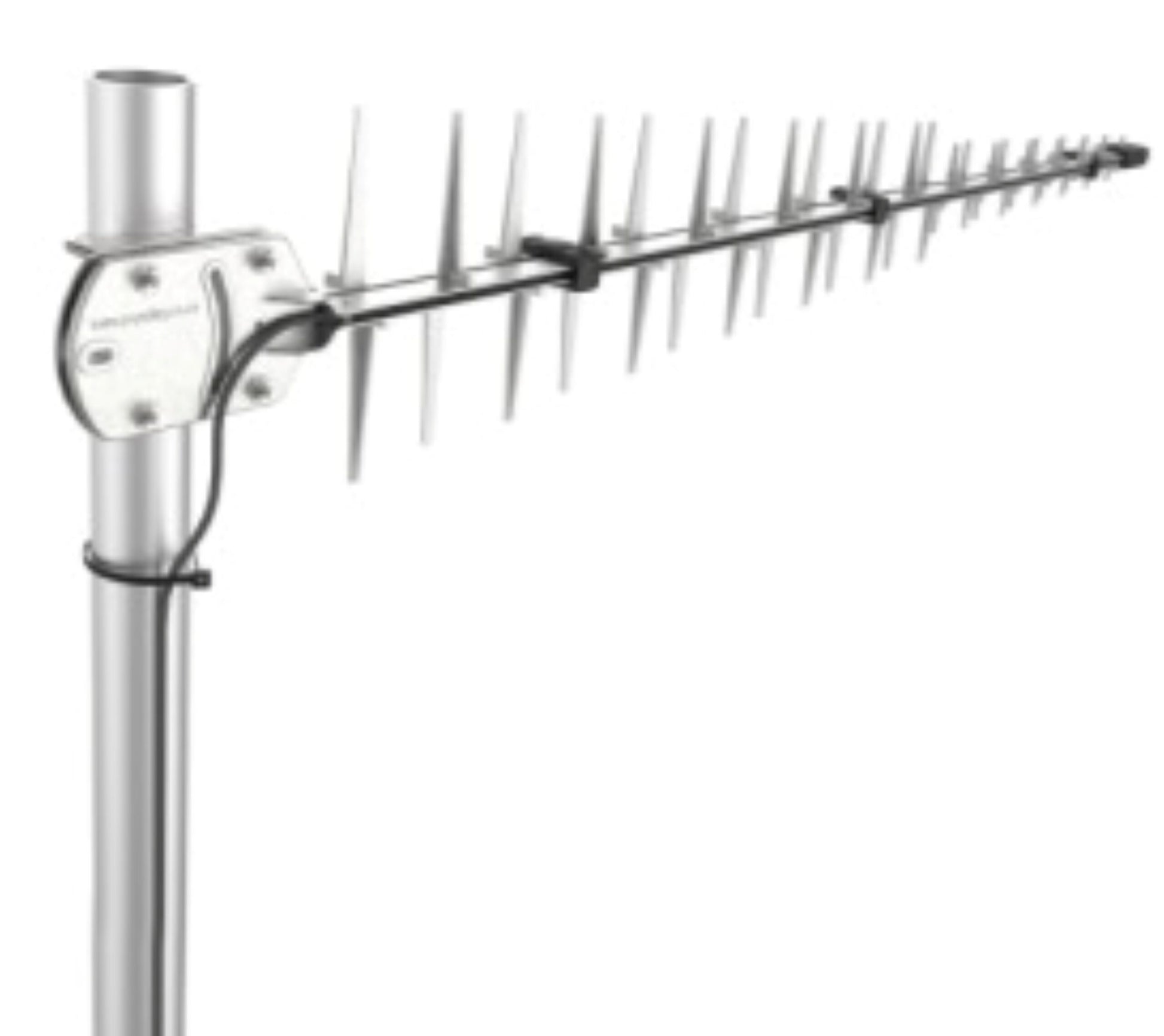

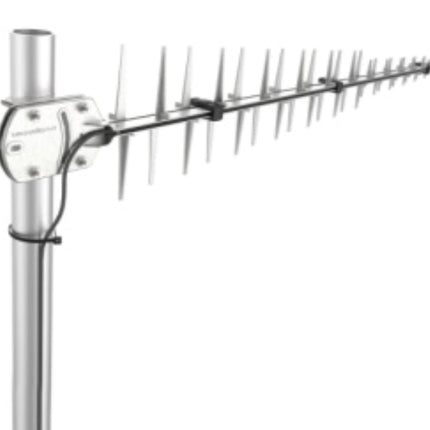

RFI LPDA7038 5G Directional Antenna, 700-3800 MHz, 11 dBi, 0.5m, N-Female

RFI LPDA7038 5G Directional Antenna, 700-3800 MHz, 11 dBi, 0.5m, N-Female

Available

Brand:
Item ID:
167014261
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LPDA7038-11-0.5NF
Send Request for Quote (RFQ) Discount Offers
RFI LPDA7038 is a wide-band log periodic antenna offering 11 dBi gain directional coverage on frequency range 700 MHz to 3800 MHz, and is suited to all global cellular and various other wireless network applications. The unique ruggedized diecast aluminum construction ensures optimum performance and reliability in all weather and operating environments. The LPDA7038 antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suite pole diameters of up to 60 mm.
Regular price $231.50
Regular price $0.00 Sale price $231.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI LPDA7038 is a wide-band log periodic antenna offering 11 dBi gain directional coverage on frequency range 700 MHz to 3800 MHz, and is suited to all global cellular and various other wireless network applications. The unique ruggedized diecast aluminum construction ensures optimum performance and reliability in all weather and operating environments. The LPDA7038 antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suite pole diameters of up to 60 mm. The LPDA7038 antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suite pole diameters of up to 60 mm and includes 0.5 metres of HDF 195 cable terminated with an N-Type female connector.

Product Features:

  • Wideband frequency range, 700 MHz to 2800 MHz
  • High directional gain of 11 dBi
  • Excellent front-to-back ratio
  • Easy installation using supplied hardware

In the Box:

  • 1x RFI LPDA Directional Antenna (MON: LPDA7038-11-0.5NF)
  • Installation brackets

Documents:

RFI LPDA7038 Antenna - Datasheet

Product Specifications

MPN LPDA7038-11-0.5NF
Antenna application Base Station Antenna
Antenna cable type HDF-195
Antenna features Multi Band Capable, Flying lead, Directional
Antenna port connectors N (F)
Antenna type Directional LPDA
Brands RFI
Cable and connector 0.5m HDF 195 terminated with N female connector
Cable length m 0.5
Connector N(F)
Coverage type Directional
Frequency band Multi-Band 700-3800 MHz
Frequency mhz 698-960|1710-2700|3400-3800
Front back ratio db 20 dB (± 3 bB)
Height 5
Horizontal beamwidth 55 (± 5)
Ingress protection ip IP65
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 3800
Max gain dbd dbi 10.8
Mimo support No
Min frequency mhz 698
Min gain dbd dbi 2.3
Mount supported Bracket mount
Mount supported detailed Bracket mount
Mounting area Up to 60mm diameter pole
No of antenna ports 1
Polarisation Vertical or Horizontal
Power w 10
Technologies supported Wi-Fi, 2G, 3G, 4G
Tuned bandwidth Full band.
Vertical beamwidth 50 (± 5)
Vswr <1.5:1
Width 5
Wind gust km h 160
Wind load 160km h n 160
