RFI LPDA7030-11-PIM Log Periodic Antenna, 700-3000 MHz, 11 dBi, 0.6m, N-Female

    RFI LPDA7030-11-PIM Log Periodic Antenna, 700-3000 MHz, 11 dBi, 0.6m, N-Female

      Product form

      RFI LTE 11 dBi LPDA Directional Antenna (700-3000 MHz); 0.6m N(F) - PIM = -150 dBc is suited to all global cellular and other wireless network applications

      Brand
      RFI
      Export
      Restrictedwhat this means
      Item ID
      167014260
      MPN
      LPDA7030-11-PIM
      Shipping
      Not available to ship
      Standard Warranty Global Insurance Except USA & Canada

      Sold-out

      Price on Application

      Export restricted item. Export orders may incur additional charges — ask us for a quote.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      RFI LTE 11 dBi LPDA Directional Antenna (700-3000 MHz); 0.6m N(F) - PIM = -150 dBc

      • Wideband frequency range
      • Excellent front-to-back ratio
      • Easy installation using supplied hardware
      • PIM rated to -150 dBc

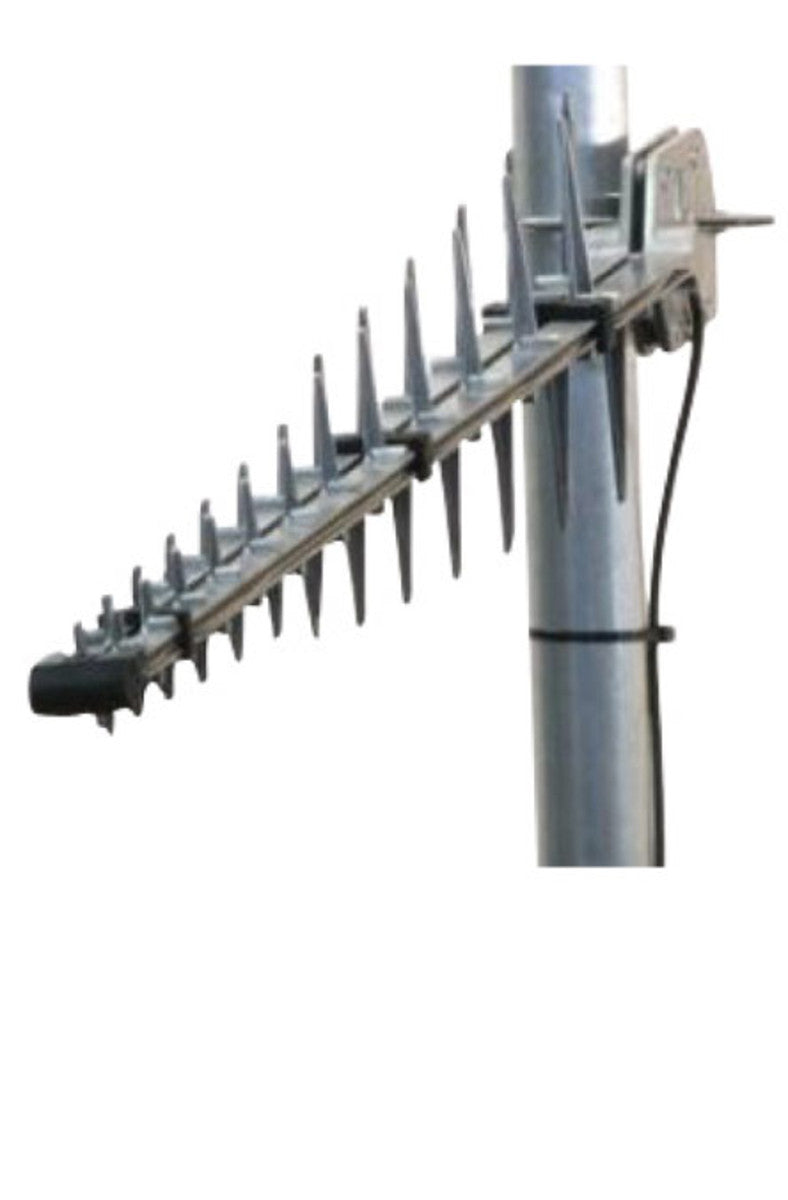

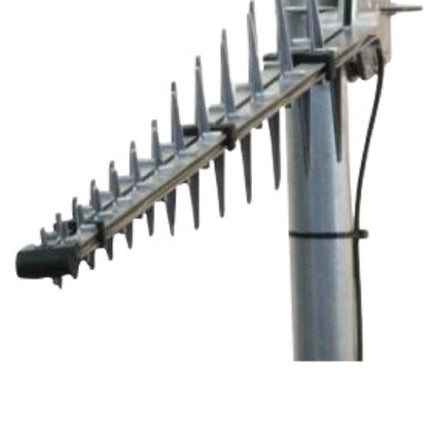

      The LPDA antenna is to be mounted vertically with tilting capability incorporated within the clamping arrangement. Mast mounting hardware is supplied to suite pole diameters of up to 60mm and includes 0.5 metres of low-loss RG142 cable terminated with an N-Type female connector.

      Product Specifications

      Brand RFI
      Length (cm) 99
      Width (cm) 5
      Height (cm) 5
      Antenna Application Base Station Antenna
      Antenna Features PIM Rated
      Antenna Port Connectors N (F)
      Antenna Type Directional LPDA
      Cable Length (m) 0.6
      Coverage Type Directional
      Frequency Band Multi-Band 700-3800 MHz
      Ingress Protection (IP) IP65
      Installation Type External mounting
      Low PIM Yes
      Max Frequency (MHz) 3000
      Max Gain (dBd/dBi) 11.0
      MIMO Support No
      Min Frequency (MHz) 700
      Min Gain (dBd/dBi) 11.0
      Mount Supported Bracket mount
      Mount Supported - Detailed Bracket mount
      No. of Antenna Ports 1
      Technologies Supported UHF
      Wind Gust (km/h) 160
