RFI LMHP-G-1.5M-FS LTE MIMO and GPS Puck Antenna, 3x 1.5m, FME-Female and SMA-Male

    RFI LMHP-G-1.5M-FS LTE MIMO and GPS Puck Antenna, 3x 1.5m, FME-Female and SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014255
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      LMHP-G-1.5M-FS
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI LTE 2x2 MIMO & GPS Puck Antenna (698-2700 MHz & GPS); 3 X 1.5m FME(F) SMA(M) covering all cellular bands which provides increase data speed.

      $200.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      RFI LMHP-G-1.5M-FS LTE MIMO and GPS Puck Antenna, 3x 1.5m, FME(F), SMA(M)

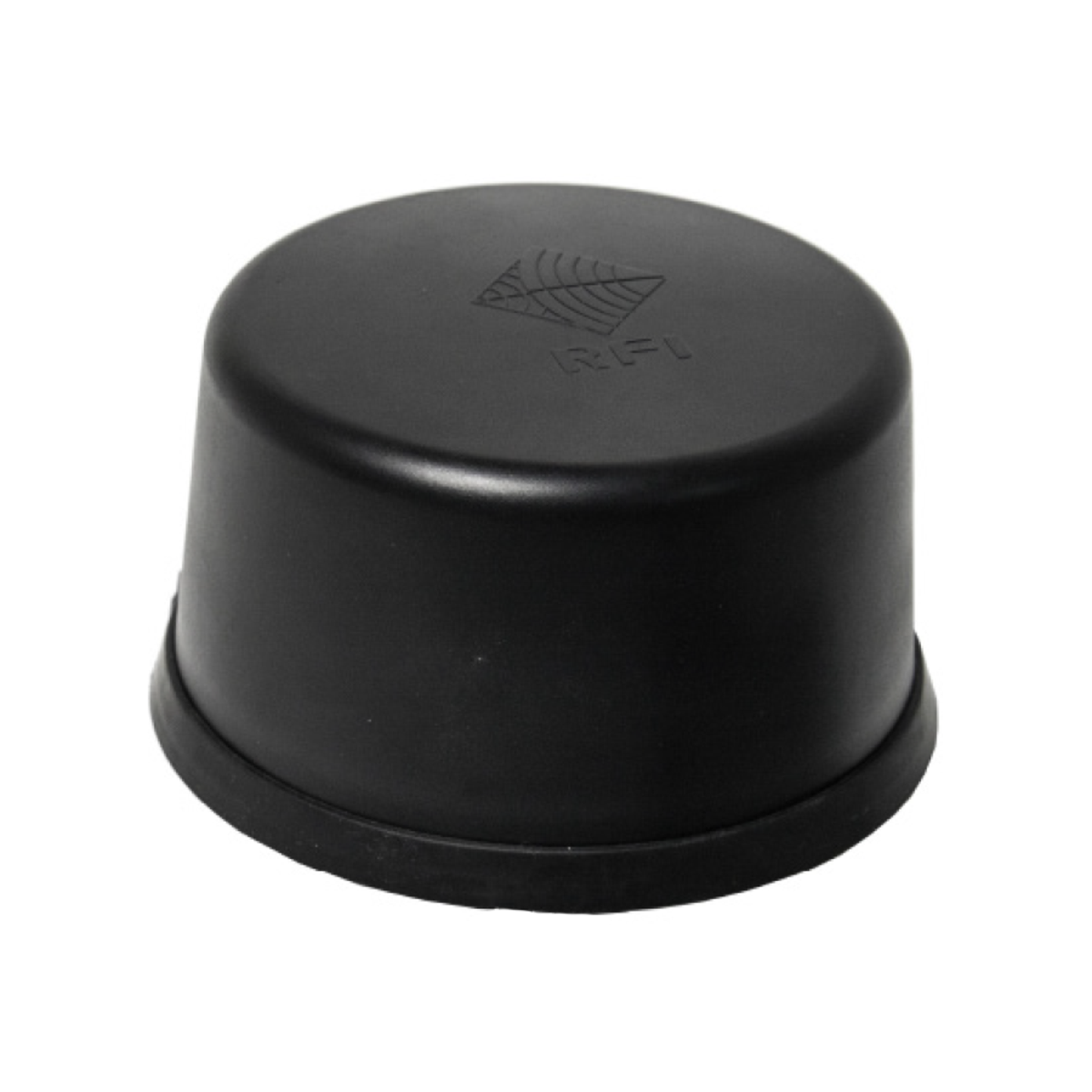

      The LMHP-G-1.5M-FS incorporates 3 antennas in a single, ruggedised low profile housing. Two (MIMO) LTE/4G/3G antennas covering all cellular bands which provides increase data speed. And the third antenna is a high performance active GPS antenna. Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.
      • 3 antenna feeds covering: 2 x LTE (698-960/1710-2700 MHz) 1 x GPS (1575.42 MHz)
      • M16 stud offers ease of installation in the field
      • Ingress protection to IP65
      • 3 x 1.5m RG174 cable terminated with:
      • LTE 1 = FME(F)
      • LTE 2 = FME(F)
      • GPS = SMA(M)
      Other cable/connector configuration available on request (MOQ's may apply)

      Documents:

      RFI LMHP-G-1.5M-FS Antenna - Datasheet

      Product Specifications

      MPN LMHP-G-1.5M-FS
      Antenna cable type RG174
      Antenna port connectors SMA (M), FME (F)
      Band LTE = 698-960/1710-2700 MHz / GPS = 1575.42 MHz
      Brands RFI
      Cable length m 1.5
      Connector vhf LTE = 2 x FME(F) / GPS = SMA(M)
      Coverage type Omni-directional
      Frequency mhz 824-960|1710-2170|2400-2500
      Height 4
      Ingress protection ip IP65
      Installation type Internal or external mounting
      Length 5
      Low pim No
      Max frequency mhz 2700
      Max gain dbd dbi 28
      Mimo support Yes
      Min frequency mhz 698
      Min gain dbd dbi 2
      Mount supported Stud mount
      Mount supported detailed Stud mount
      Mounting M16 thread stud
      No of antenna ports 4
      Nominal gain dbi LTE = 2/4 / GPS = 28
      Power w 10
      Radome diameter mm 110
      Technologies supported 2G, 3G, 4G, GPS
      Tuned bandwidth Full. No tuning required
      Vswr LTE = <2.5:1 / GPS = <2.0:1
      Width 5
