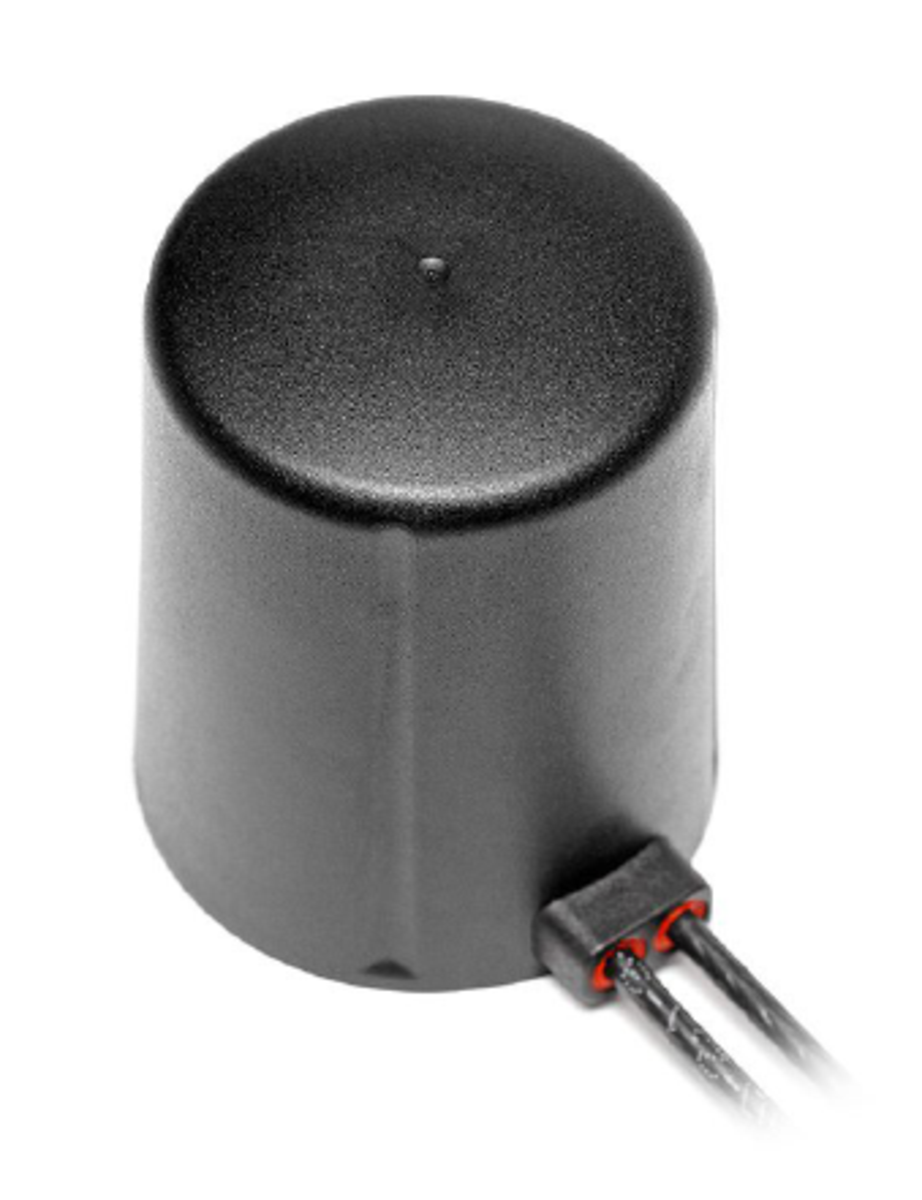

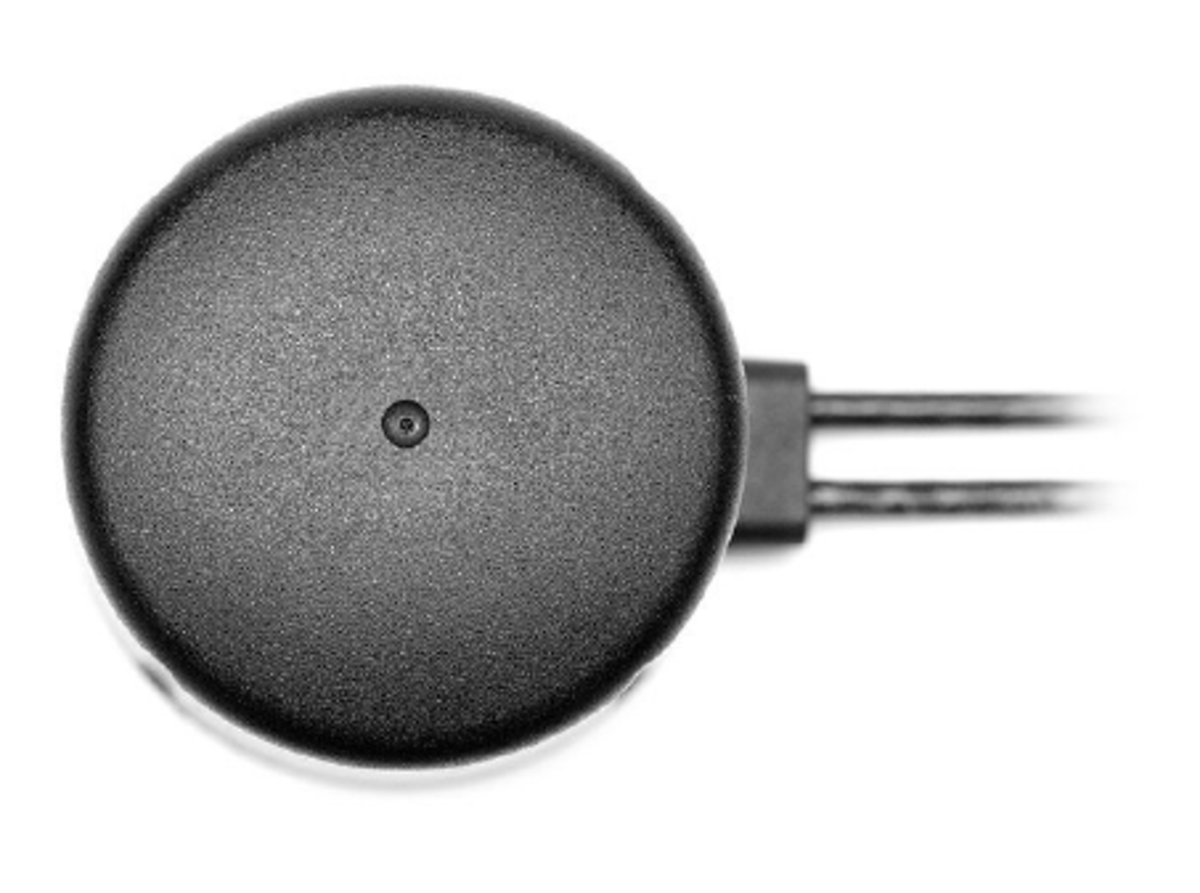

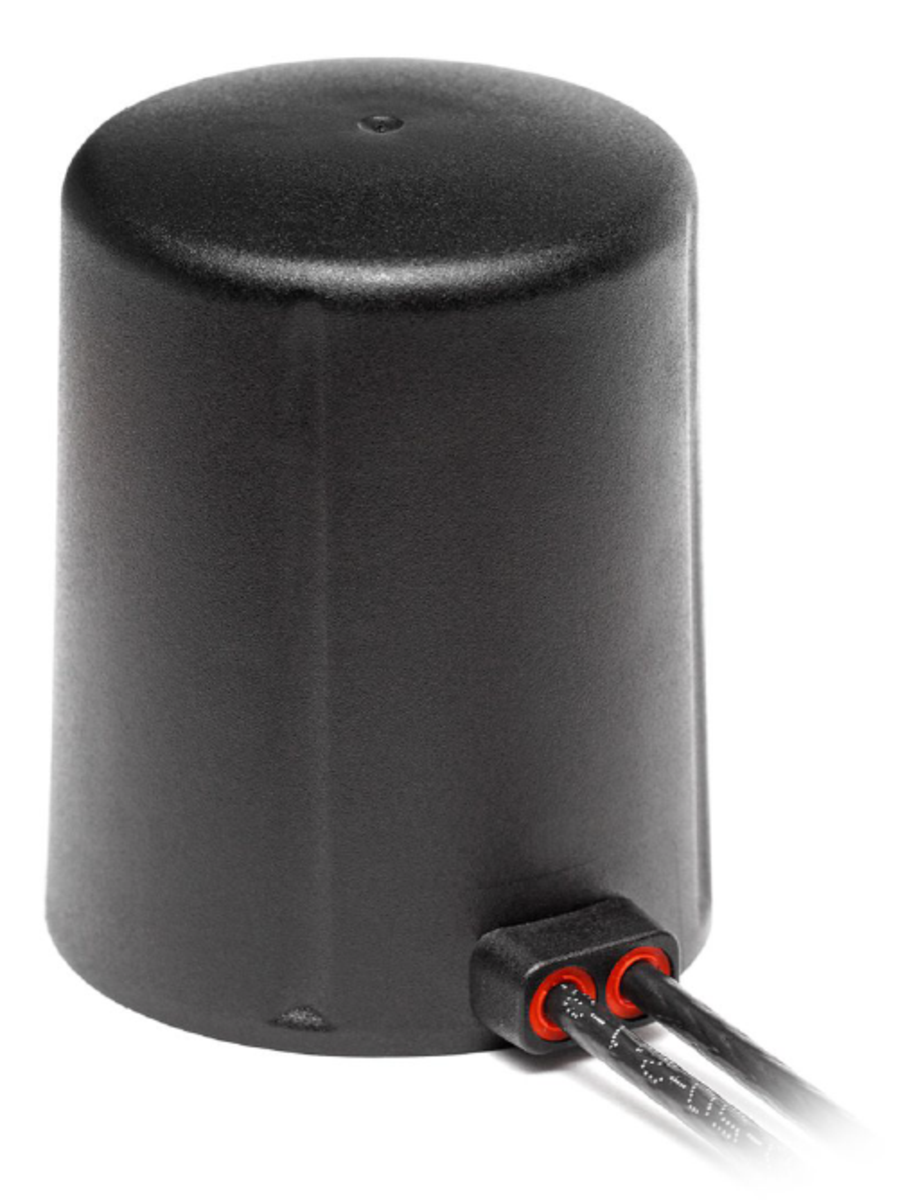

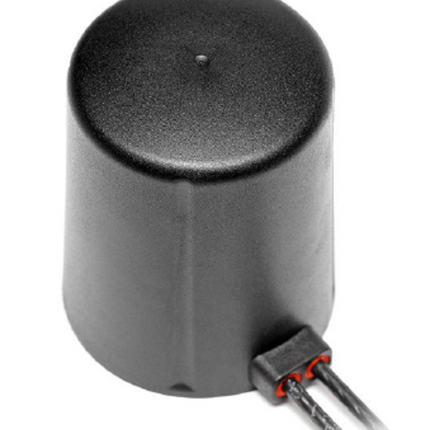

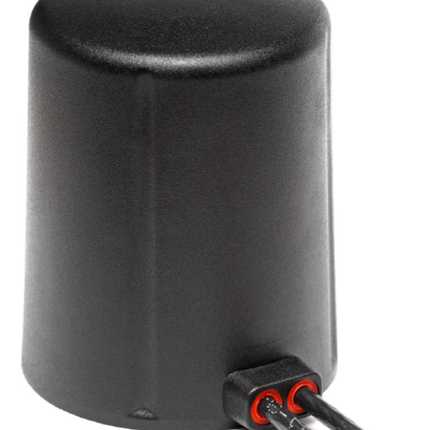

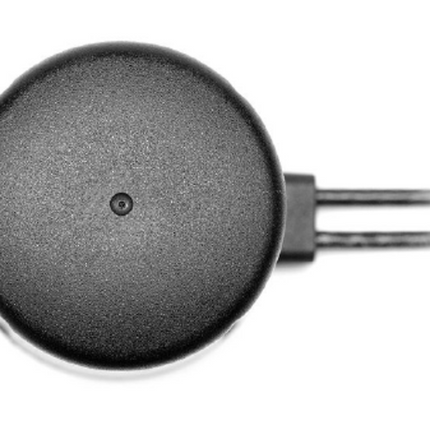

RFI LTE-MAGS Magnetic Mount Antenna, MIMO, 698-2700 MHz, 2x 3m, SMA-Male
RFI LTE-MAGS Magnetic Mount Antenna, MIMO, 698-2700 MHz, 2x 3m, SMA-Male
RFI LTE Antenna 698-2700 MHz; Magnetic Base; MIMO 2 x 3m SMA, provides high performance, global compatibility, and secure magnetic mounting option.
- Brand
- RFI
- Export
- Acceptedwhat this means
- Item ID
- 168014269
- MPN
- LTE-MAGM-3M-SMA
- Shipping
- Ships out in 1-2 business days
Standard Warranty
Global Insurance Except USA & Canada
$133.32
- Taxes included. Shipping rate calculated at checkout.
- Purchase Order & instructions box available at Cart page
-
Pay securely! All major cards accepted.
Product Description
The RFI LTE-MAGS Magnetic Mount Antenna delivers stable omni-directional gain across global 4G, 3G & 2G bands (698 MHz to 2.7 GHz). This low-profile antenna ensures seamless transition between major markets worldwide, eliminating the need for antenna changes. The robust magnetic base, featuring high-quality rare earth magnets, securely mounts to any metal surface for reliable performance. The antennas' low-profile design and magnetic mount make them easy to install on any metal surface, while their high-quality rare earth magnets ensure a secure attachment. Built to withstand harsh environmental conditions, these antennas are IP69K rated, providing protection against dust and water ingress. The LTE-MAGM Series antennas offer a high-performance MIMO configuration, enhancing signal strength and data throughput for reliable and high-speed cellular communication.
Features:
- Magnetic Mount: Strong magnetic base for secure attachment to any metal surface, providing versatile deployment options.
- Wideband Coverage: RFI LTE Antenna provides stable omni-directional gain across all major 4G, 3G & 2G cellular bands (698 MHz to 2.7 GHz), ensuring reliable connectivity.
- Global Compatibility: Eliminate the need for antenna changes when transitioning between major global markets, from 4G to 3G.
- High-Performance Design: Designed for optimal performance, this antenna is ground plane dependent and guarantees high-quality signal reception.
- IP69K Rating: Resilient to harsh environments, ensuring durability and longevity in challenging conditions.
- Customised cable & connectors: Tailor the cable and connectors based on your specific requirements for installation of RFI LTE Antenna (Minimum Order Quantities may apply).
Electrical Specifications:
- Frequencies MHz: 698-960 | 1710-2170 | 2500-2700

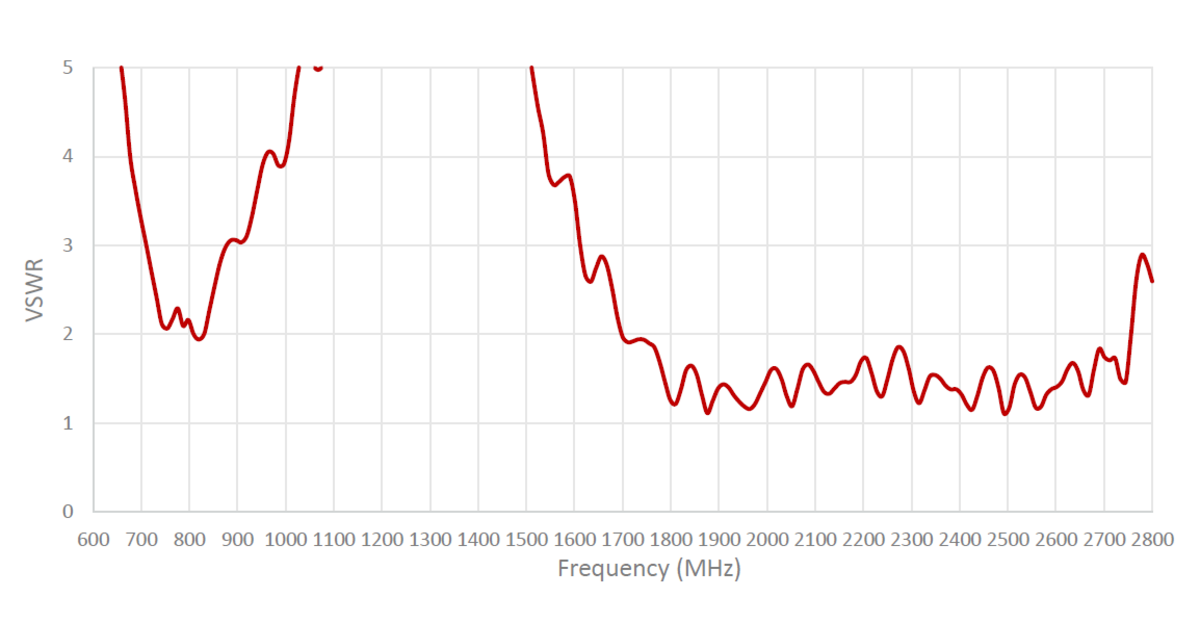

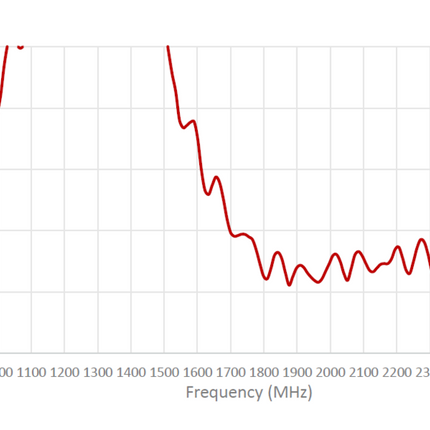

- VSWR*: 3.0:1
- Impendence Ohm: 50
- Polarisation: Linear
- Radiation Pattern: Omni-directional
- Max. Input Power W: 25
Mechanical Specifications:
- Mounting Type: Magnetic Mount

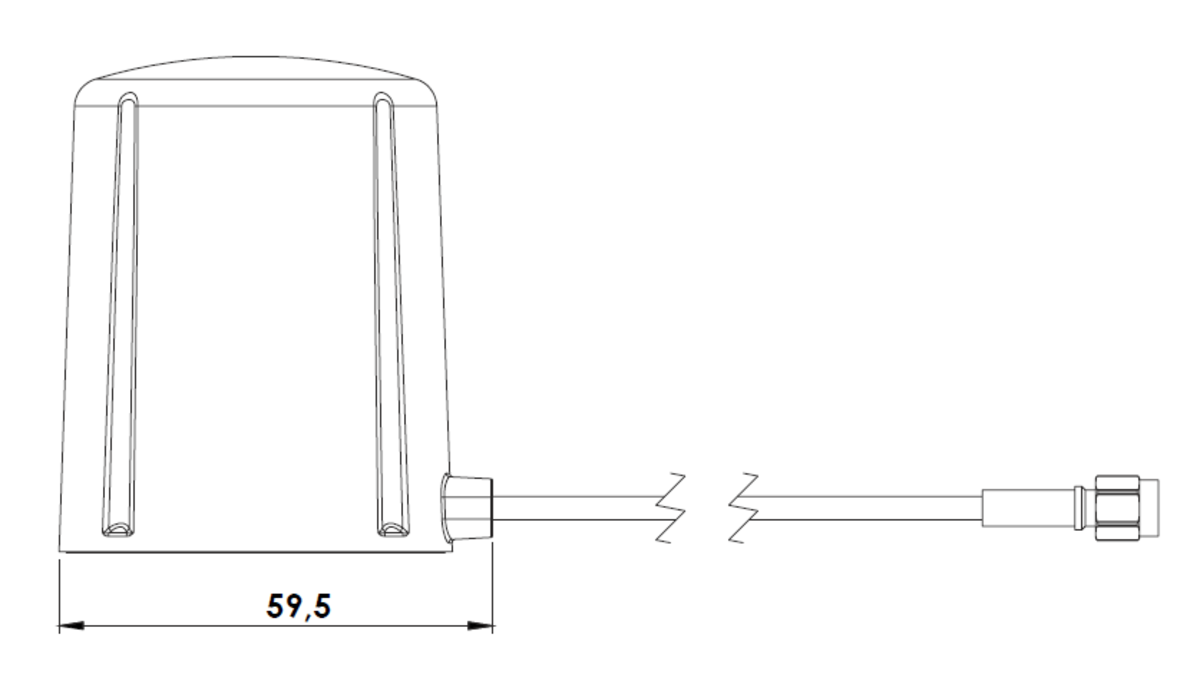

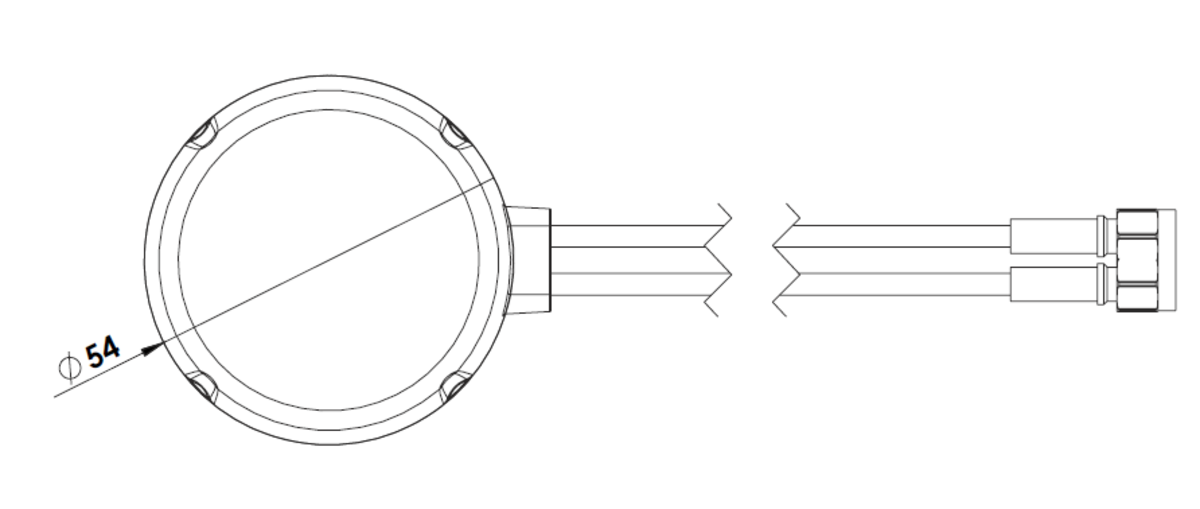

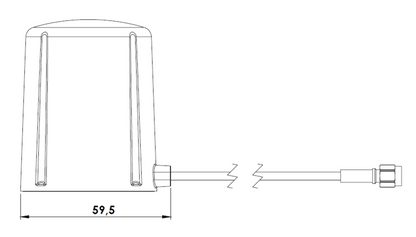

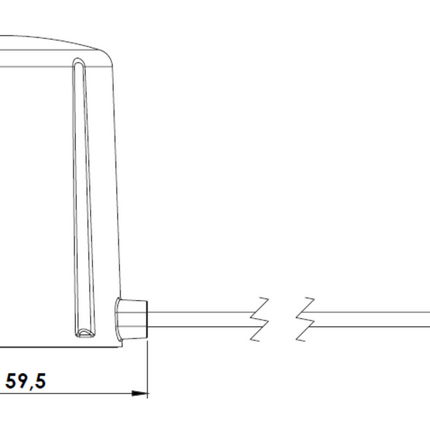

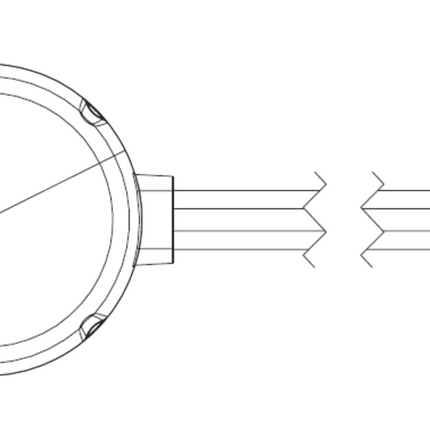

- Dimensions mm: 54 x 68.2
- Radome Type: PC/ABC UV Stable
- Radome Colour: Black
- Base Type: Zamak
- Operating Temperature °C: -40 to +85
- IP Rating: IP69K
- Cable: 2 x 3M RG174
- Connector: 2 x SMA male
