RFI LTE-SDA-1.5M-SMA SISO Low Profile Dome Antenna, 698-2700 MHz, 1.5m, SMA-Female

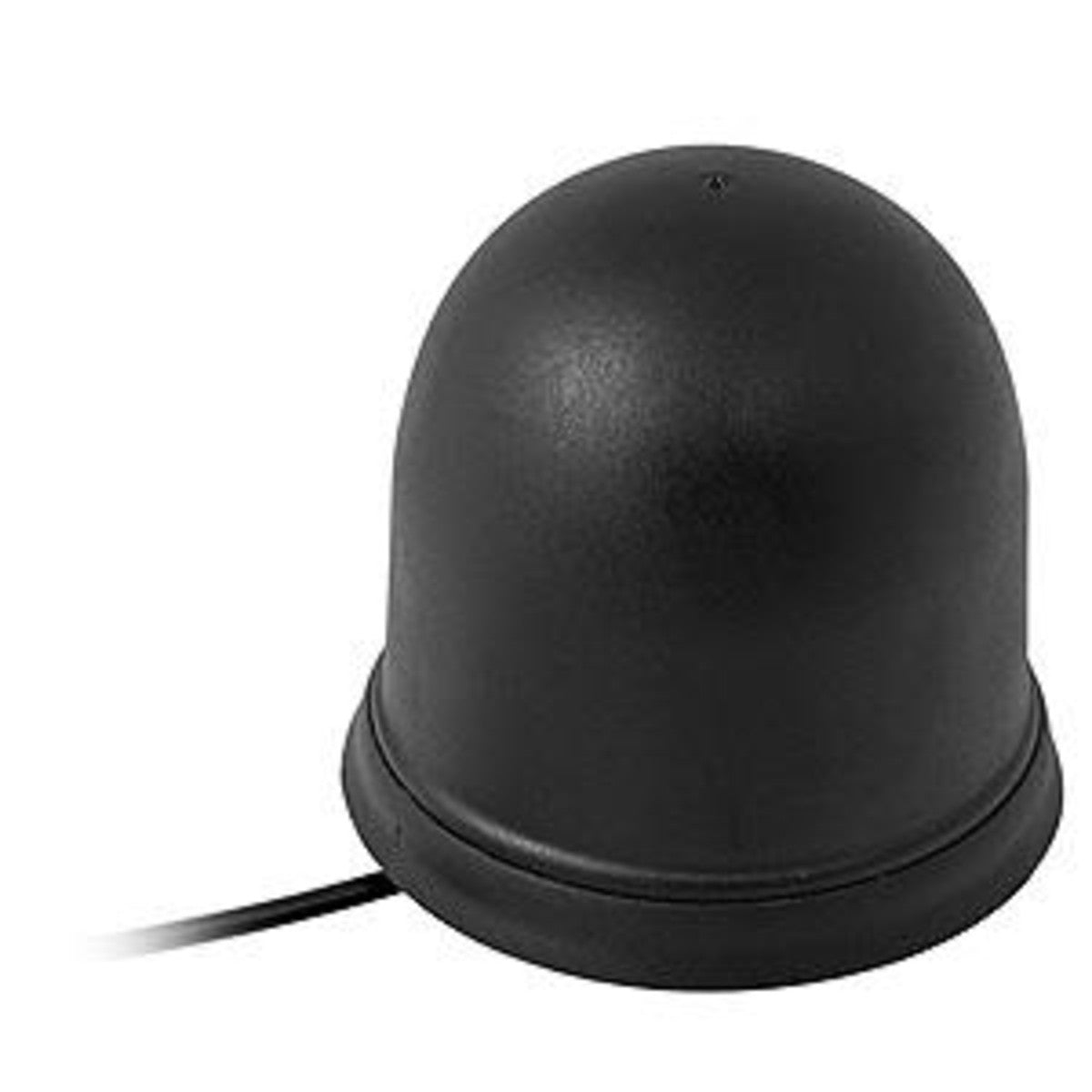

    RFI LTE-SDA-1.5M-SMA SISO Low Profile Dome Antenna, 698-2700 MHz, 1.5m, SMA-Female

      Product form

      RFI LTE Dome Antenna (698-2700 MHz); 1.5m SMA(F) provides excellent coverage for mobile and fixed data applications from 698 MHz to 2700 MHz.

      Brand
      RFI
      Export
      Accepted
      Item ID
      168014273
      MPN
      LTE-SDA-1.5M-SMA
      Shipping
      Ships out in 1-2 business days
      Standard Warranty Global Insurance Except USA & Canada

      Available

      $102.66

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI LTE Dome Antenna (698-2700 MHz); 1.5m SMA(F)

        • Polycarbonate radome is ideal for outdoor use
        • Attractive, low-profile design for maximum overhead clearance

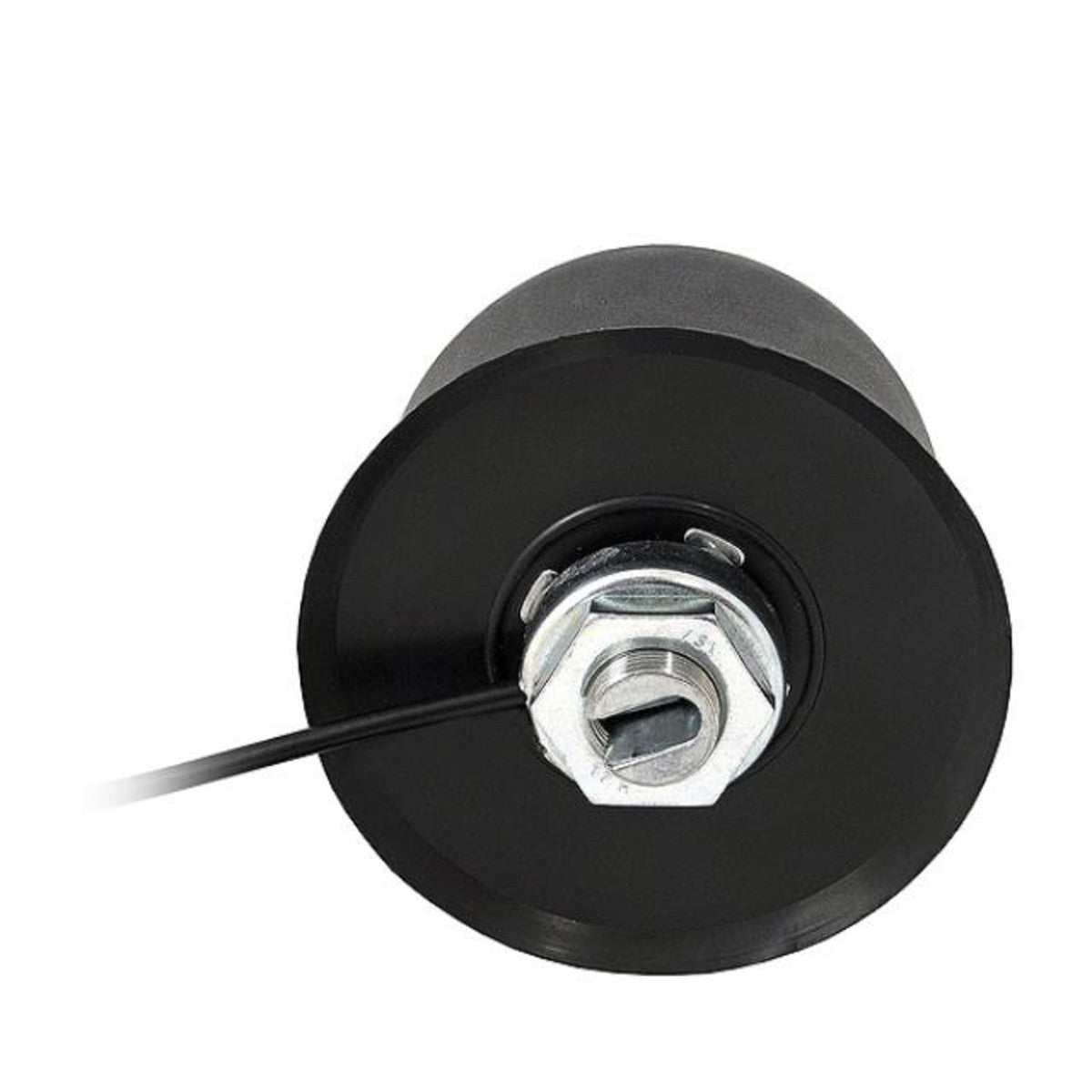

        • Stud mounting offers ease of installation in the field
        • Ingress protection to IP67

        Documents:

        RFI LTE-SDA-1.5M-SMA Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length (cm) 6
        Width (cm) 4
        Height (cm) 4
        Antenna Cable Type RG174
        Antenna Port Connectors SMA (M)
        Band LTE
        Cable And Connector 1.5m RG174 terminated with SMA (M) connector
        Cable Length (m) 1.5
        Coverage Type Omni-directional
        Frequency [MHz] 698-960|1710-2170|2300-2700
        Ingress Protection (IP) IP67
        Installation Type Internal mounting
        Low PIM No
        Max Frequency (MHz) 2700
        Max Gain (dBd/dBi) 4
        MIMO Support No
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) 0.7
        Mount Supported Screw mount
        Mount Supported - Detailed Screw mount
        No. of Antenna Ports 1
        Nominal Gain [dBi] 0.7dBi / 3.4 dBi / 4.0 dBi
        Power [W] 25
        Radome Diameter Mm 77.3mm
        Technologies Supported 2G, 3G, 4G
        Tuned Bandwidth Full. No tuning required
        VSWR 2.1:1
        Whip Length mm 65.5
