RFI LTE-G-ALP-1.5M-SMA Adhesive Mount Antenna, 698-2700 MHz, 2x 1.5m, SMA-Male

    RFI LTE-G-ALP-1.5M-SMA Adhesive Mount Antenna, 698-2700 MHz, 2x 1.5m, SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014265
      MPN:
      LTE-G-ALP-1.5M-SMA
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI LTE/GPS Adhesive Mount Antenna (698-2700 MHz); 2 X 1.5m SMA(M) is designed for indoor applications such as vehicles dash or window mount.

      Available

      $42.90

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The LTE-G-ALP Series is a compact low-profile omni-directional LTE & GPS antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz. The LTE-G-ALP also includes a high-performance GPS/GLONASS antenna. The antenna features an attractive, compact housing which is designed for indoor applications such as vehicles dash or window mount. The antenna is mounted using the supplied self-adhesive pad.

        Features:

        • Tough poly carbonate radome
        • Attractive, low-profile design
        • Self-adhesive installation

        Documents:

        RFI LTE-G-ALP-1.5M-SMA Antenna - Datasheet

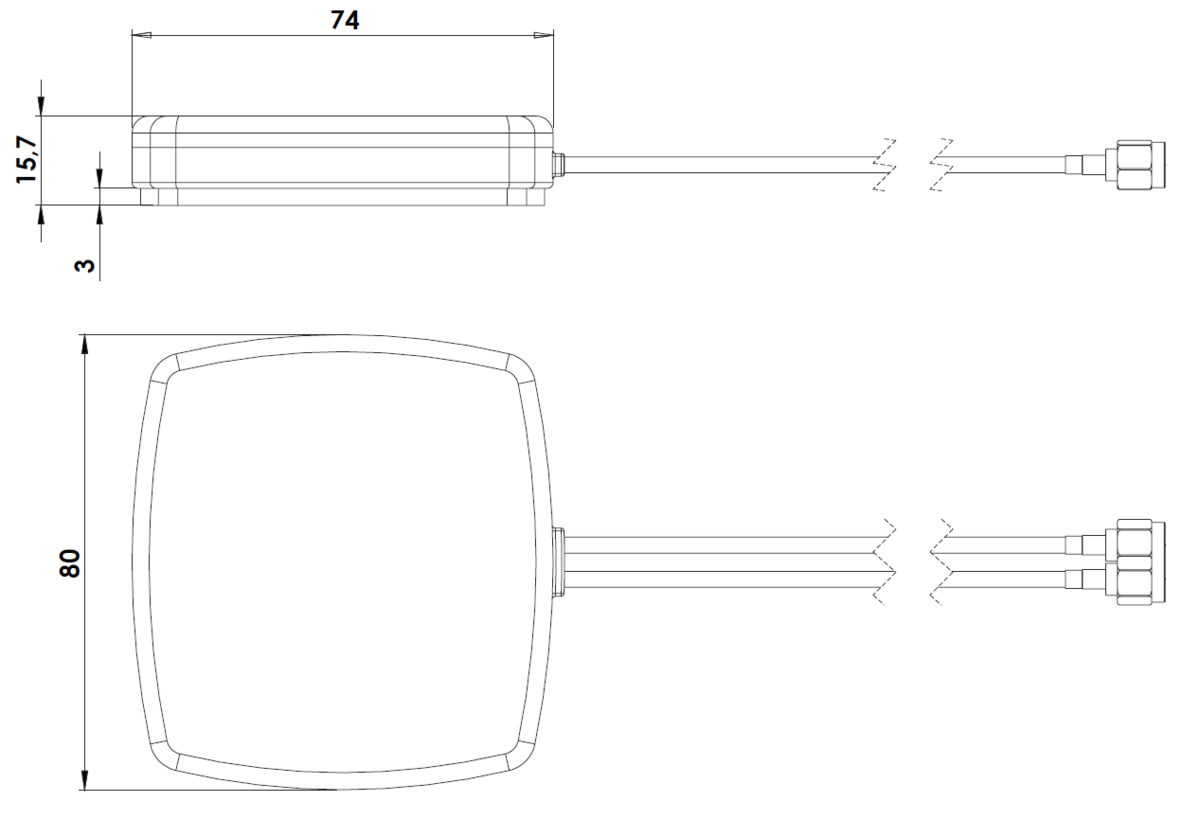

        Product Specifications

        Brand RFI
        Length 6
        Width 6
        Height 2
        Antenna Cable Type RG174
        Antenna Port Connectors SMA (M)
        Antenna Type Low Profile Transit
        Band LTE & GPS/GLONASS
        Cable Length (m) 1.5
        Coverage Type Omni-directional
        Frequency [MHz] 698-960|1710-2170|2300-2700
        Installation Type Vehicle mounting
        Low PIM No
        Max Frequency (MHz) 2700
        Max Gain (dBd/dBi) 3.2
        MIMO Support Yes
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) 2.1
        Mount Supported Adhesive mount
        Mount Supported - Detailed Adhesive mount
        No. of Antenna Ports 2
        Nominal Gain [dBi] 2.9dBi / 3.2dBi / 2.1dBi (peak)
        Power [W] 25
        Technologies Supported 2G, 3G, 4G, GPS
        Termination 2 x SMA male connectors
        Tuned Bandwidth Full. No tuning required
        VSWR <2.5:1
