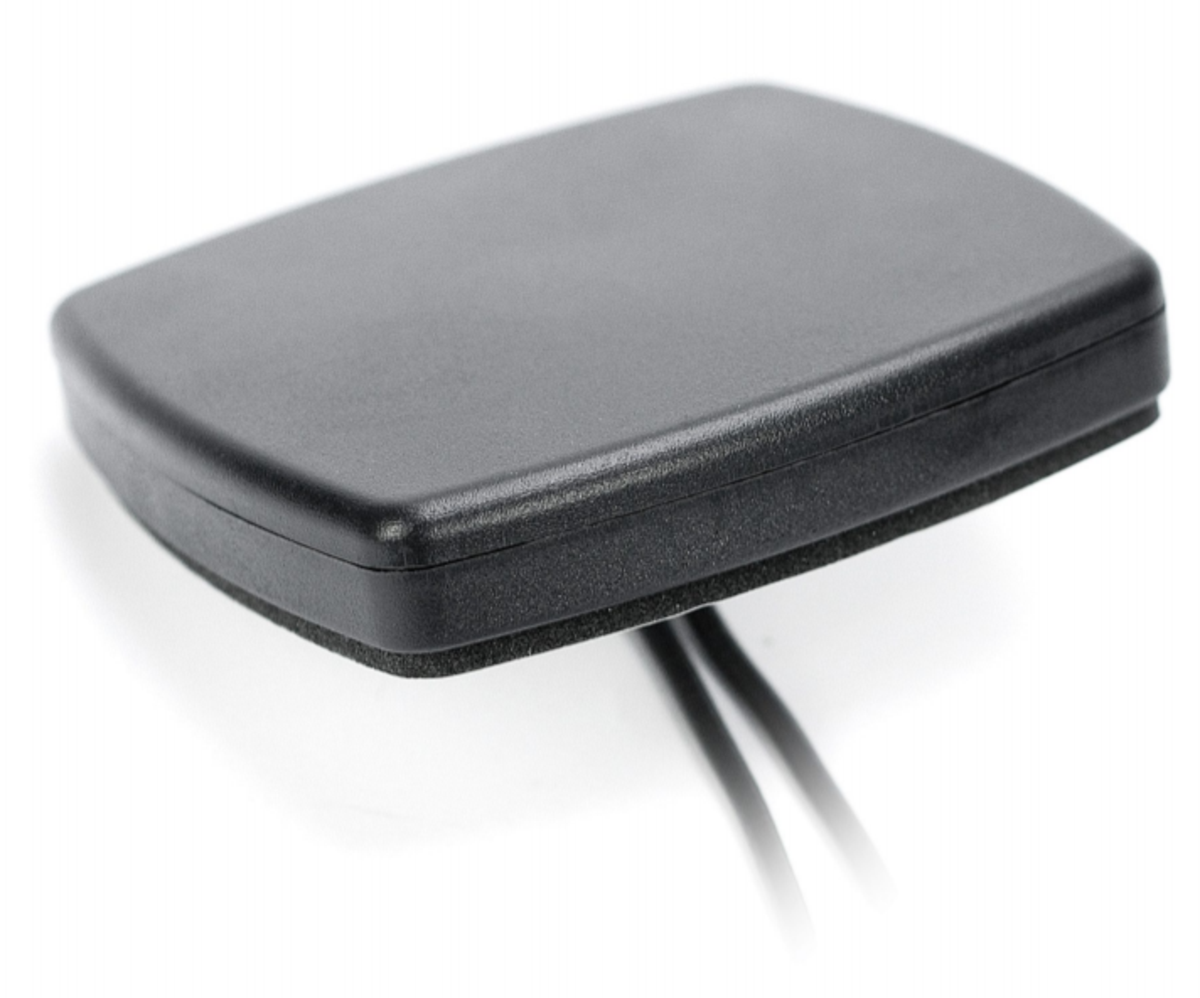

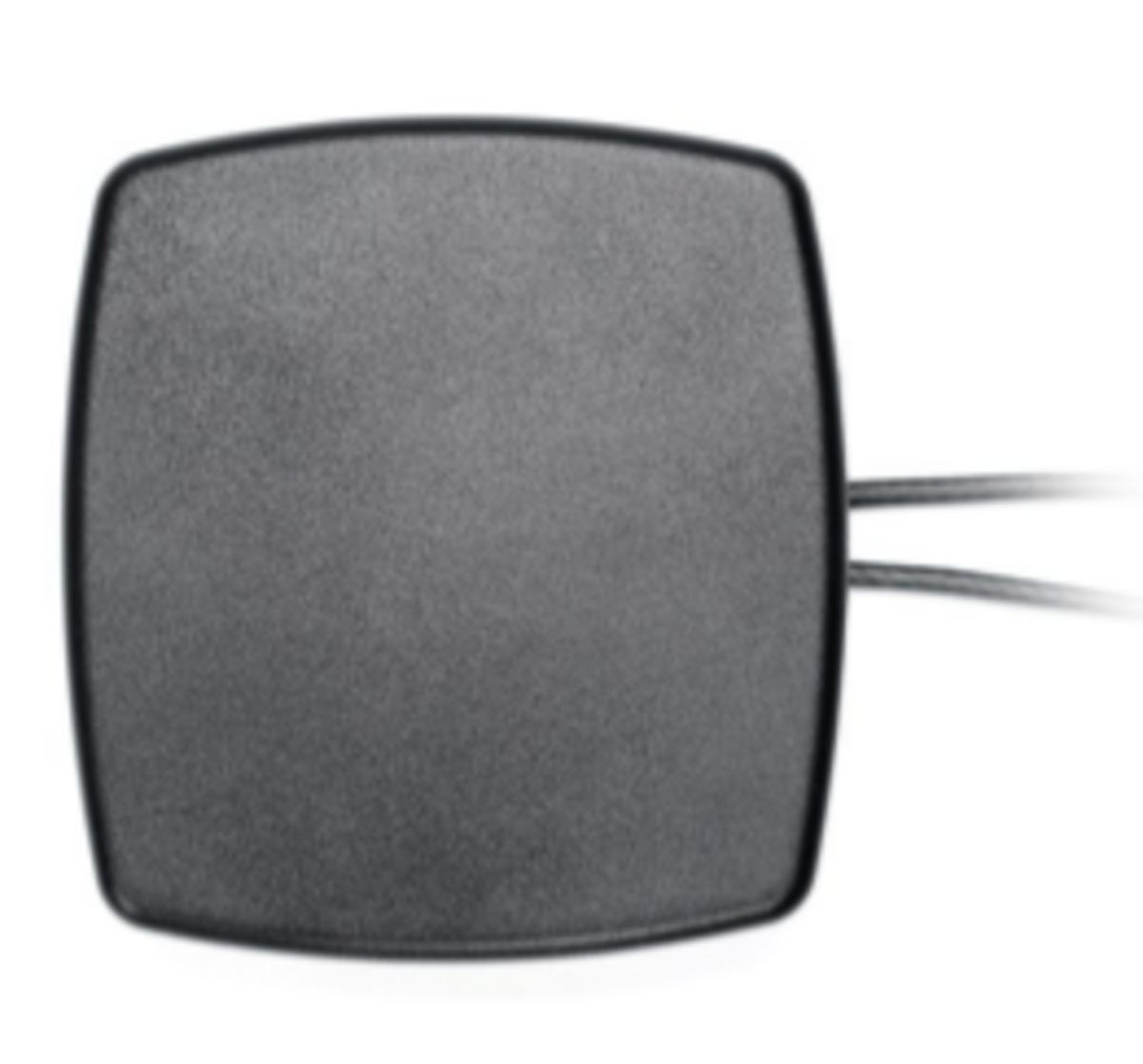

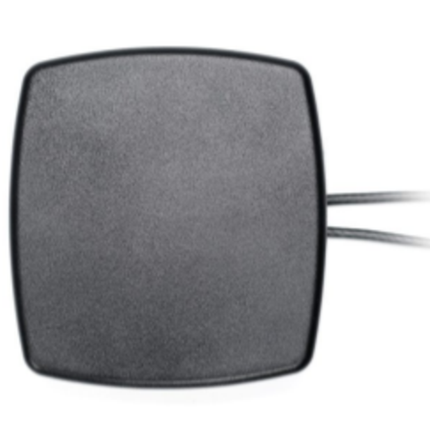

RFI LTE-G-SLP-1.5M-SMA Low Profile Antenna, 698-2700 MHz, 2x 1.5m, SMA-Male

    RFI LTE-G-SLP-1.5M-SMA Low Profile Antenna, 698-2700 MHz, 2x 1.5m, SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014268
      MPN:
      LTE-G-SLP-1.5M-SMA
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI LTE/GPS Low Profile Antenna (698-2700 MHz); 2 X 1.5m SMA(M) that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7

      Available

      $149.92

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

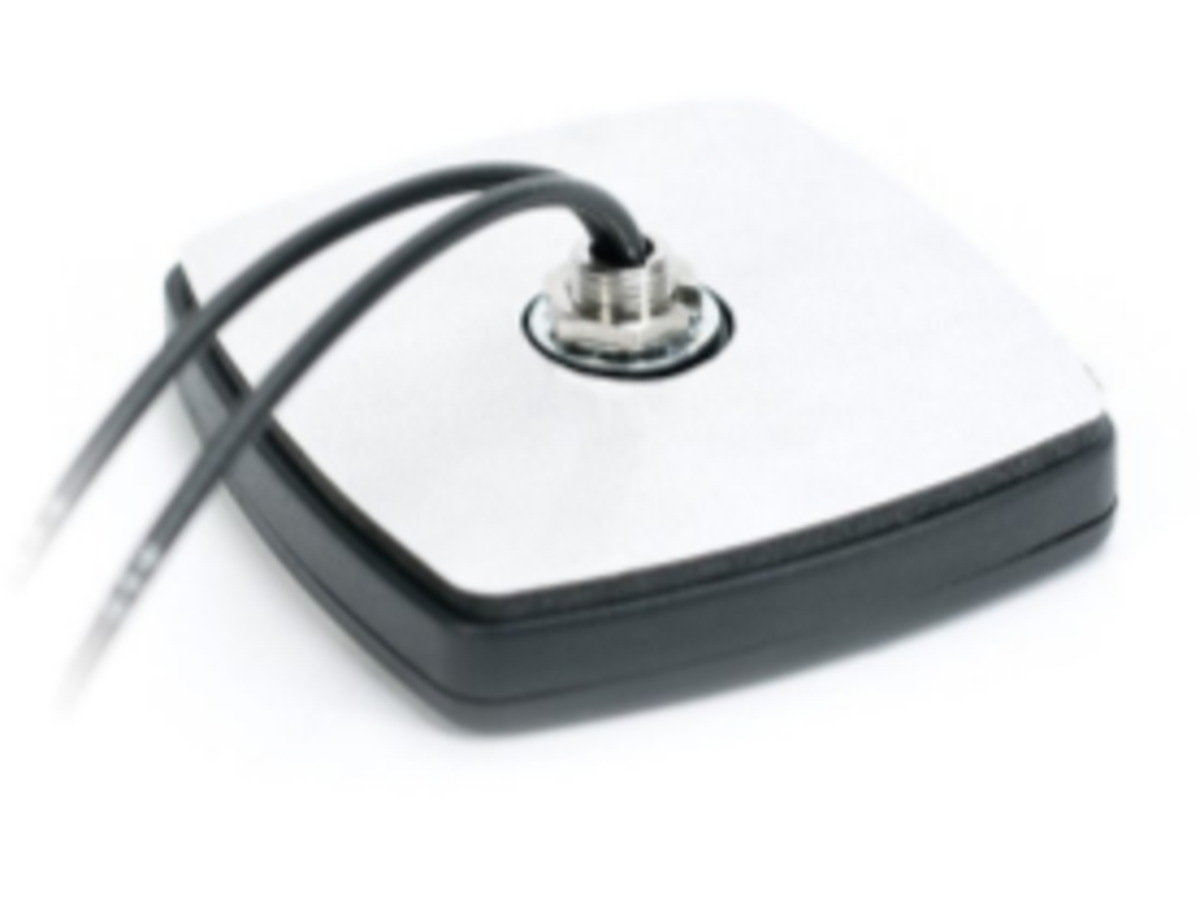

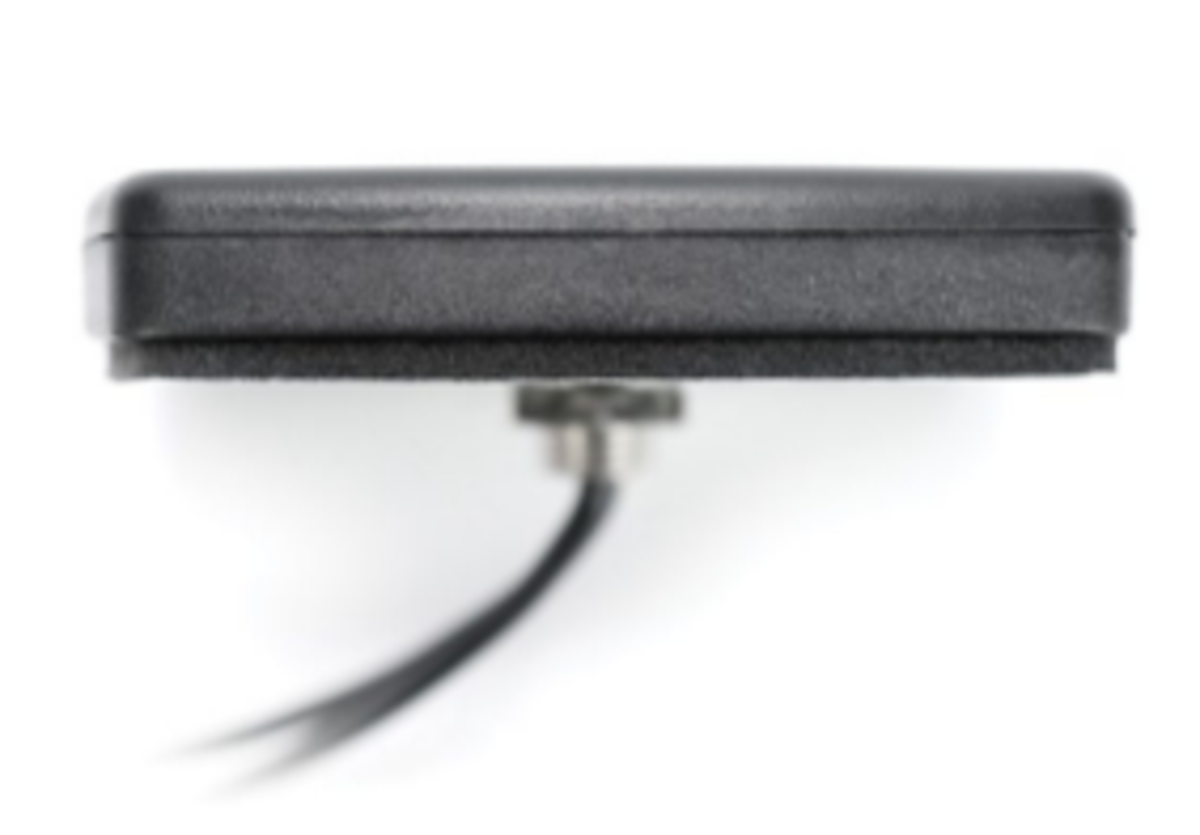

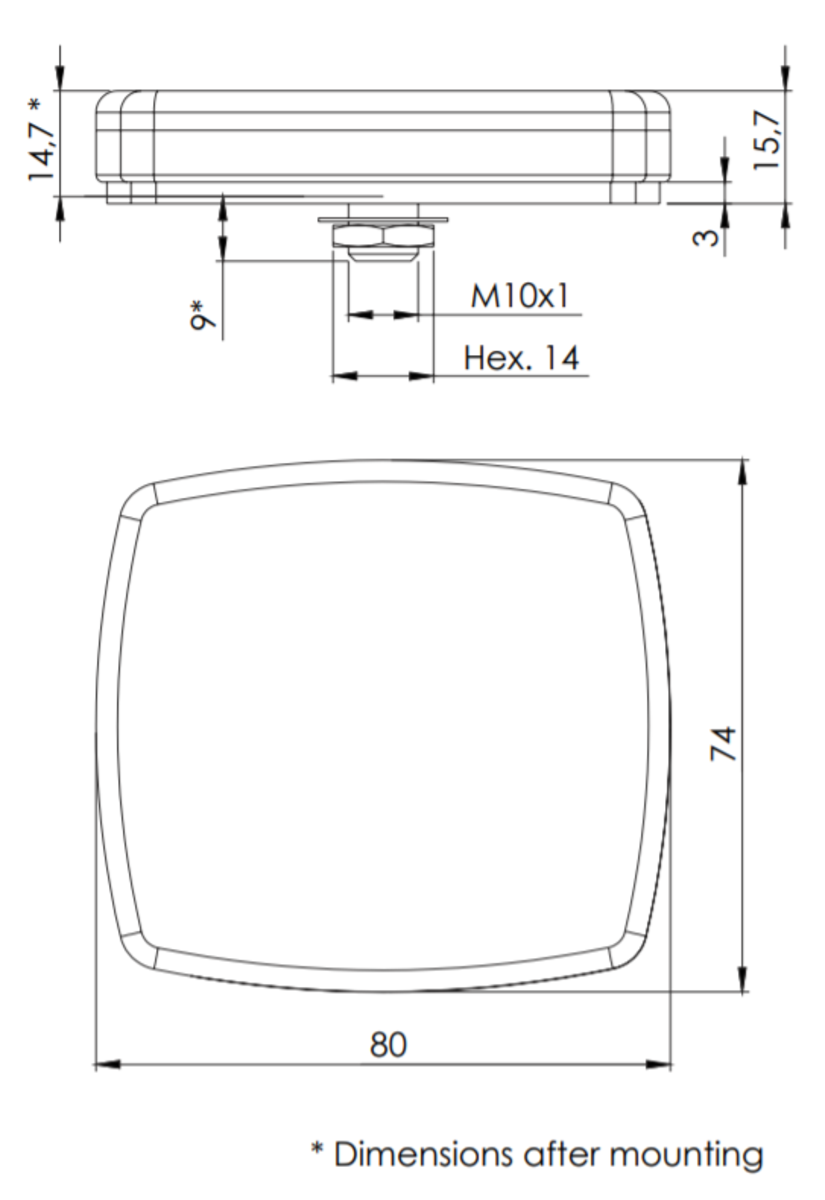

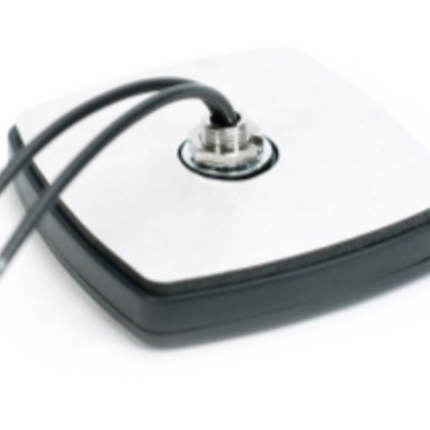

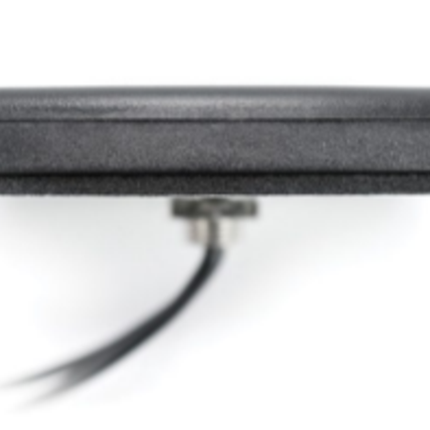

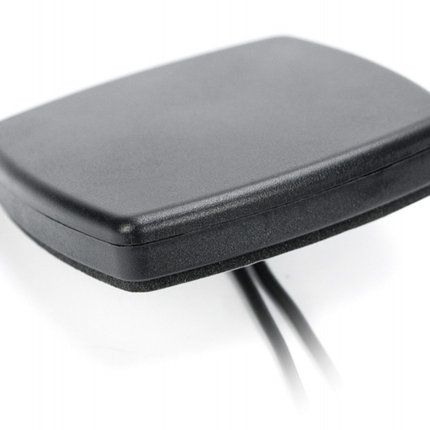

        The LTE Series is a compact low-profile omni-directional LTE & GPS antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz. The antenna features an attractive, compact housing that can be used in both indoor and outdoor applications. The antenna is mounted via an M10 mm stud/nut and the base incorporates a rubber seal.
        • Polycarbonate radome is ideal for outdoor use
        • Attractive, low-profile design for maximum overhead clearance
        • Stud mounting offers ease of installation in the field
        • Ingress protection to IP67

        Documents:

        RFI LTE-G-SLP-1.5M-SMA Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length 6
        Width 6
        Height 2
        Antenna Cable Type LL100
        Antenna Port Connectors SMA (M)
        Band LTE & GPS/GLONASS
        Cable Length (m) 1.5
        Coverage Type Omni-directional
        Frequency [MHz] 698-960|1710-2170|2300-2700
        Ingress Protection (IP) IP67
        Installation Type Internal mounting
        Low PIM No
        Max Frequency (MHz) 2700
        Max Gain (dBd/dBi) 5
        MIMO Support Yes
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) -0.1
        Mount Supported Screw mount
        Mount Supported - Detailed Screw mount
        No. of Antenna Ports 2
        Nominal Gain [dBi] 1.8dBi / 3.5dBi / 4.4dBi (peak)
        Power [W] 25
        Technologies Supported 2G, 3G, 4G, GPS
        Termination 2 x SMA male connectors
        Tuned Bandwidth Full. No tuning required
        VSWR <2.5:1
