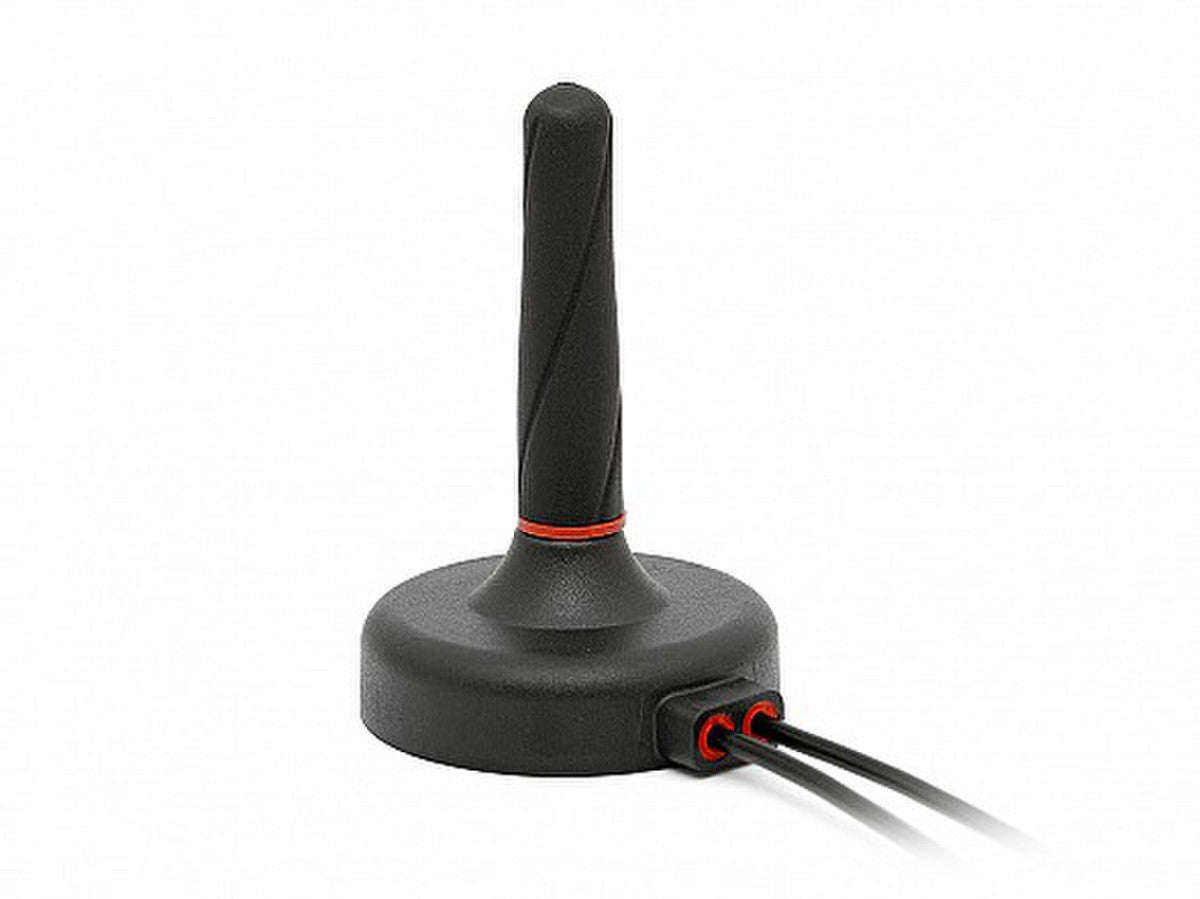

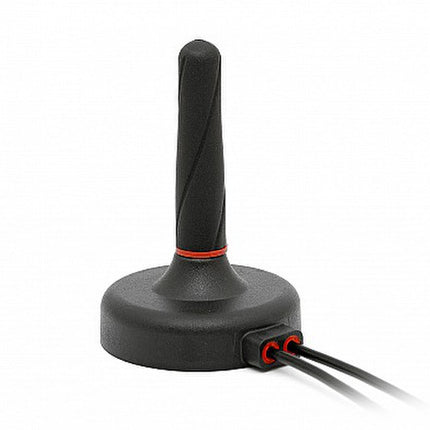

RFI LTE-G-MAG-3M-SMA Magnetic Mount Antenna, 698-2700 MHz, 2x 3m, SMA-Male

RFI LTE-G-MAG-3M-SMA Magnetic Mount Antenna, 698-2700 MHz, 2x 3m, SMA-Male

Available

Brand:
Item ID:
168014266
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LTE-G-MAG-3M-SMA
Send Request for Quote (RFQ) Discount Offers
RFI LTE/GPS Magnetic Base Antenna (698-2700 MHz); 2 X 3m SMA(M) is a compact LTE magnetic base antenna with GPS and is ideal cellular applications.
Regular price $139.00
Regular price $0.00 Sale price $139.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI LTE-G-MAG-3M-SMA Magnetic Base Antenna (698-2700 MHz); 2 X 3m SMA(M), is a powerful and versatile solution designed for both indoor and outdoor applications. This antenna is equipped with dual 3m SMA(M) cables, providing robust LTE coverage along with GPS capabilities. Ideal for situations requiring removable or temporary antennas. The LTE-G-MAG Series is mounted on a ø54 mm magnetic base that incorporates the GPS antenna.

Product Features:

  • Multi-Band LTE Coverage: Ensures optimal connectivity across multiple LTE bands, catering to diverse cellular applications.
  • Compact Low-Profile Design: Features an attractive and space-saving design suitable for both indoor and outdoor use, providing flexibility in deployment.
  • GPS Integration: The antenna incorporates a GPS antenna within the ø54 mm magnetic base, enhancing location accuracy for GPS-enabled devices.
  • IP65 Rating: Designed to withstand the elements, the IP65 rating ensures durability in various environmental conditions.

Application Areas:

  • Ideal for cellular applications requiring removable or temporary antennas
  • Suitable for both indoor and outdoor use

In the Box:

  • 1 x RFI LTE/GPS Magnetic Base Antenna
  • 2 x 3m SMA(M) Cables

Documents:

RFI LTE-G-MAG-3M-SMA Antenna - Datasheet

Product Specifications

MPN LTE-G-MAG-3M-SMA
Antenna application Terminal Antenna, Vehicle Antenna
Antenna cable type LMR100
Antenna configuration SISO
Antenna features Omnidirectional
Antenna port connectors SMA (M)
Antenna type Omni SISO
Brands RFI
Cable and connector 2 x 3m LMR100
Cable length m 3
Coverage type Omni-directional
Frequency band Multi-Band 700-2700 MHz
Frequency mhz 698-960|1710-2170|2500-2700
Height 2
Ingress protection ip IP65
Installation type Internal or external mounting
Length 6
Low pim No
Max frequency mhz 2700
Max gain dbd dbi 2.6
Mimo support Yes
Min frequency mhz 698
Min gain dbd dbi 1.3
Mount supported Magnetic base
Mount supported detailed Magnetic base
No of antenna ports 2
Nominal gain dbi 1.3 / 2.0 / 2.6
Packaging Plastic Bag
Polarisation Linear
Power w 25
Technologies supported 2G, 3G, 4G
Tuned bandwidth Full
Vswr <2.5:1
Width 6
