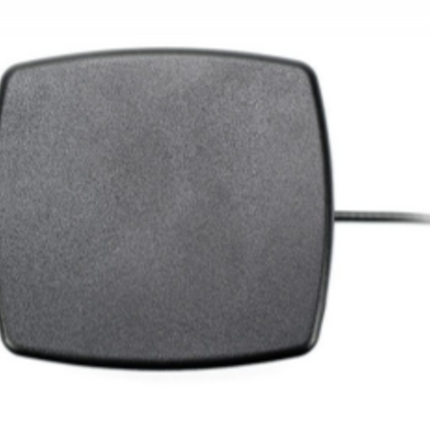

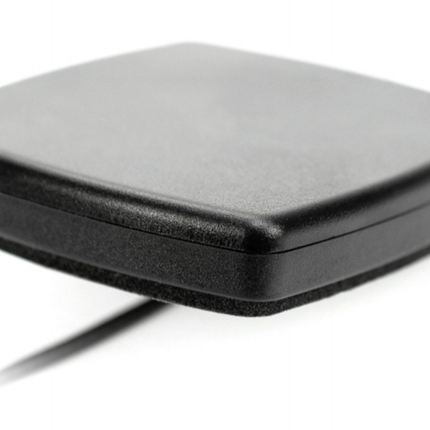

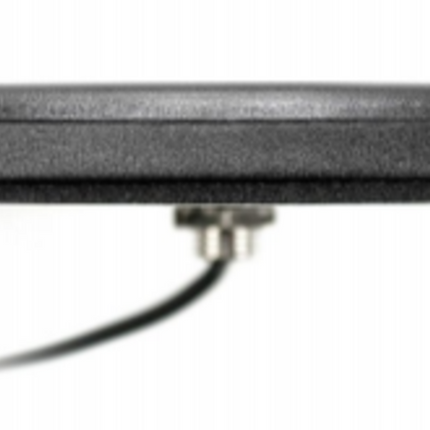

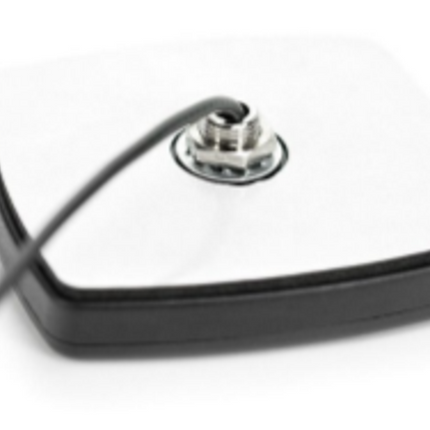

RFI LTE-SLP-1.5M-SMA SISO Low Profile Antenna, 698-2700 MHz, 1.5m, SMA-Male

    RFI LTE-SLP-1.5M-SMA SISO Low Profile Antenna, 698-2700 MHz, 1.5m, SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014275
      MPN:
      LTE-SLP-1.5M-SMA
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI LTE Low Profile Antenna (698-2700 MHz); 1.5m SMA(M) provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz.

      Available

      $80.57

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI LTE Low Profile Antenna (698-2700 MHz); 1.5m SMA(M)

        • Polycarbonate radome is ideal for outdoor use
        • Attractive, low-profile design for maximum overhead clearance
        • Stud mounting offers ease of installation in the field
        • Ingress protection to IP67

        Documents:

        RFI LTE-SLP-1.5M-SMA Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length 6
        Width 4
        Height 4
        Antenna Application Terminal Antenna, Vehicle Antenna
        Antenna Cable Type RG174
        Antenna Features Omnidirectional, Multi Band Capable
        Antenna Port Connectors SMA (M)
        Antenna Type Low Profile Transit
        Band LTE
        Cable And Connector 1.5m RG174 terminated with SMA male connectpr
        Cable Length (m) 1.5
        Coverage Type Omni-directional
        Frequency [MHz] 698-960|1710-2170|2500-2700
        Frequency Band Multi-Band 700-2800 MHz
        Ingress Protection (IP) IP67
        Installation Type Internal mounting
        Low PIM No
        Max Frequency (MHz) 2700
        Max Gain (dBd/dBi) 4.4
        MIMO Support No
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) 1.8
        Mount Supported Screw mount
        Mount Supported - Detailed Screw mount
        No. of Antenna Ports 1
        Nominal Gain [dBi] 1.8 / 3.5 / 4.4
        Polarisation Linear
        Power [W] 25
        Technologies Supported 2G, 3G, 4G
        Technology Type LTE
        Tuned Bandwidth Full. No tuning required
        VSWR <2.5:1
