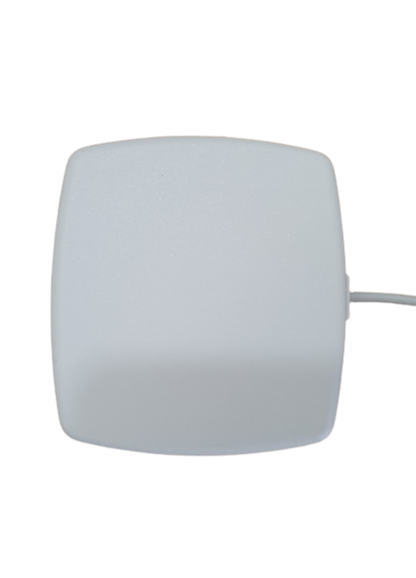

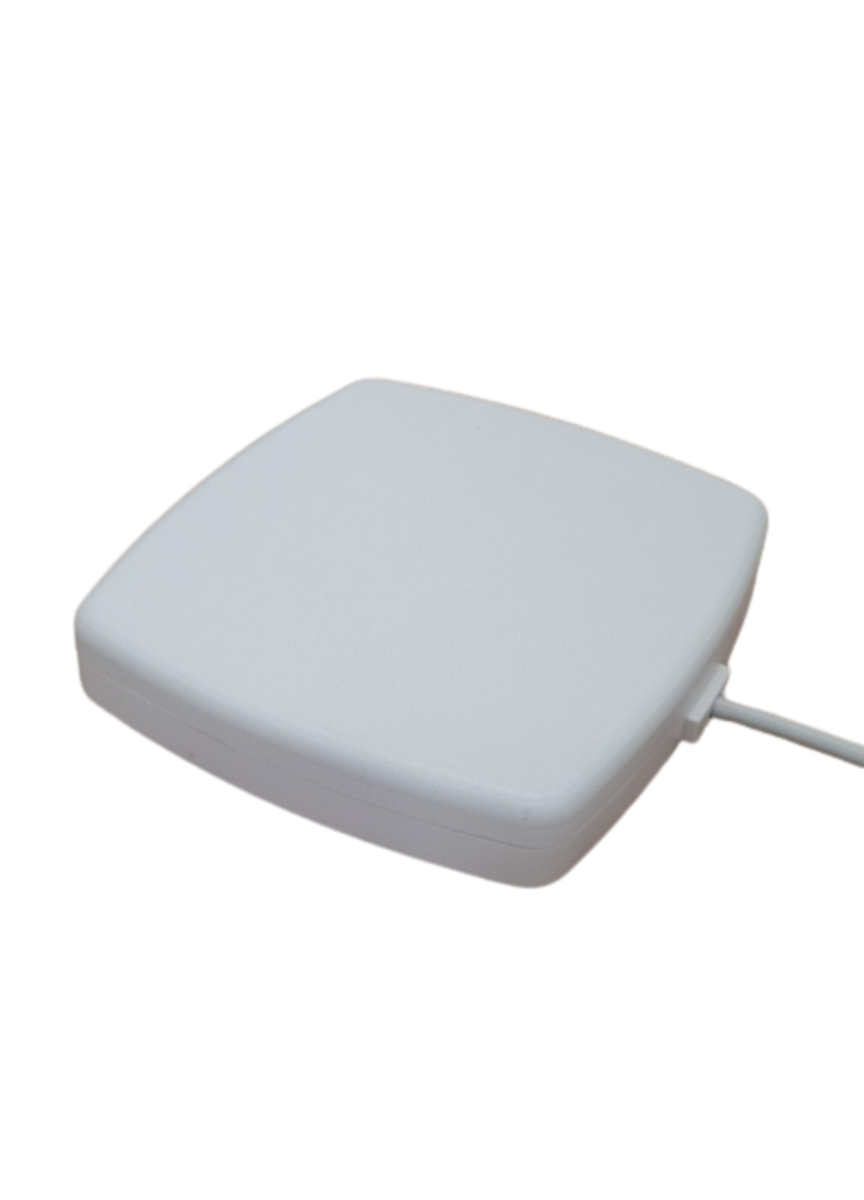

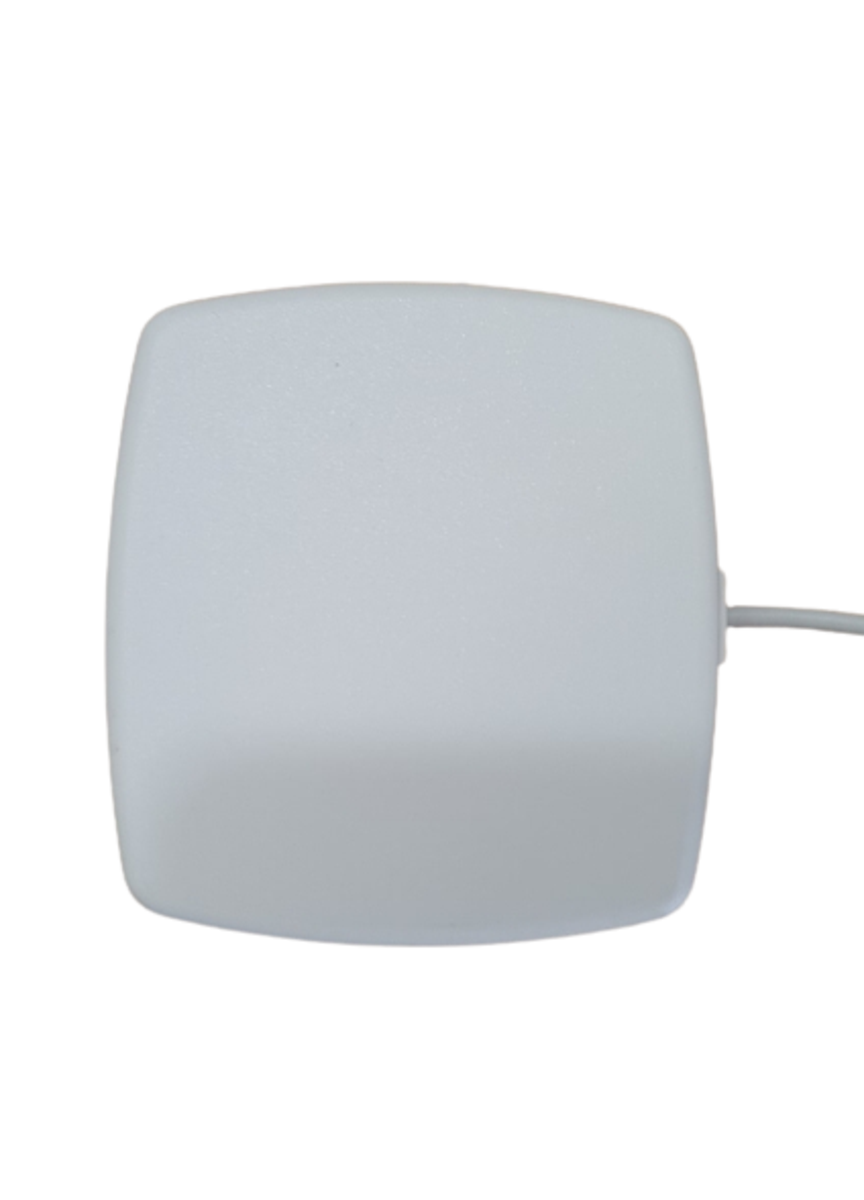

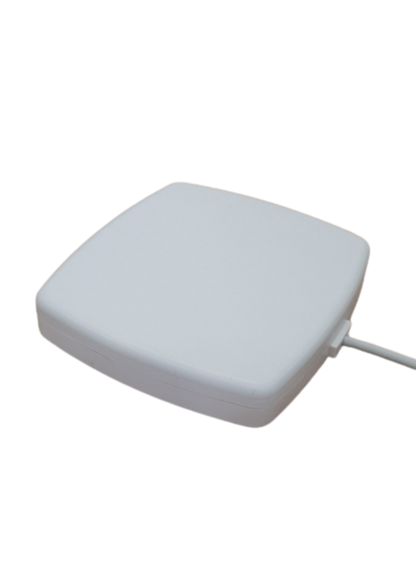

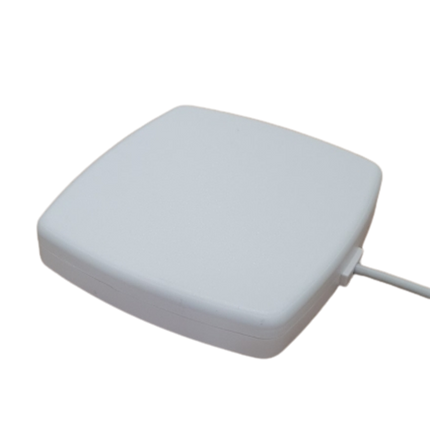

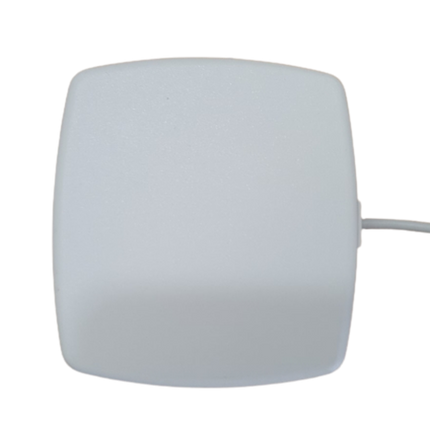

RFI LTE-APL Magnetic Mount 4G Antenna, 698-2700 MHz, 8m, SMA-Male - White

    RFI LTE-APL Magnetic Mount 4G Antenna, 698-2700 MHz, 8m, SMA-Male - White

      Product form
      Brand:
      RFI
      Item ID:
      168014264
      MPN:
      LTE-APL-8M-SMA
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI LTE Magnetic/Adhesive Mount Antenna (698-2700 MHz); 8.0m SMA(M) - White provides excellent coverage for mobile and fixed data applications.

      Available

      $39.60

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        This RFI 4G Magnetic/Adhesive Mount Antenna is a versatile and sleek solution designed for both indoor and outdoor applications. This antenna is equipped with an 8.0m SMA(M) cable for seamless integration into your 4G network.

        Features:

        • Versatile Mounting Options: Easily install with integrated magnetic mount or double-sided adhesive tape (included), providing flexibility for various applications.
        • Wide Frequency Range: The LTE-ALP Series antenna covers a broad spectrum from 698 MHz to 2.7 GHz, ensuring compatibility with mobile and fixed data applications.
        • Compact Low-Profile Design: Features an attractive, space-saving design suitable for both aesthetic indoor setups and rugged outdoor environments.
        • Sleek White Finish: The antenna's white housing adds a touch of elegance, making it suitable for a wide range of environments without compromising performance.

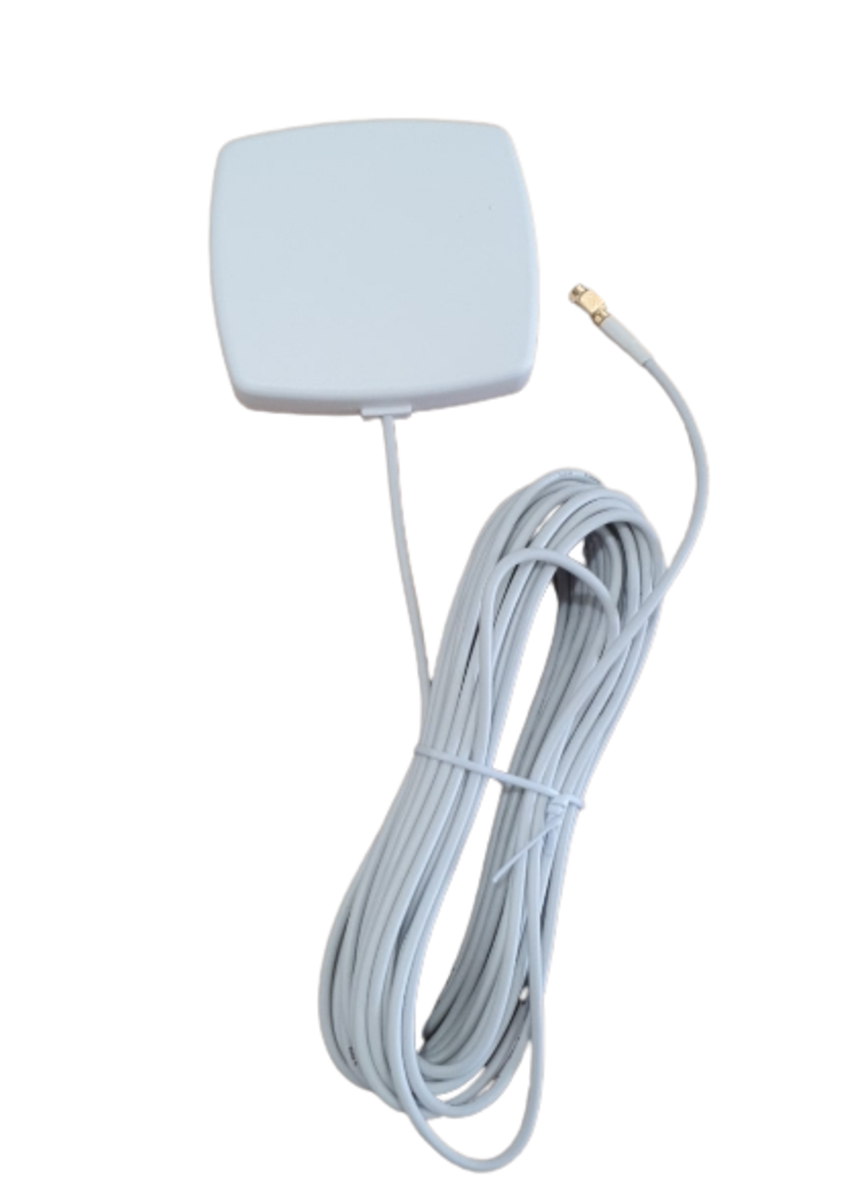

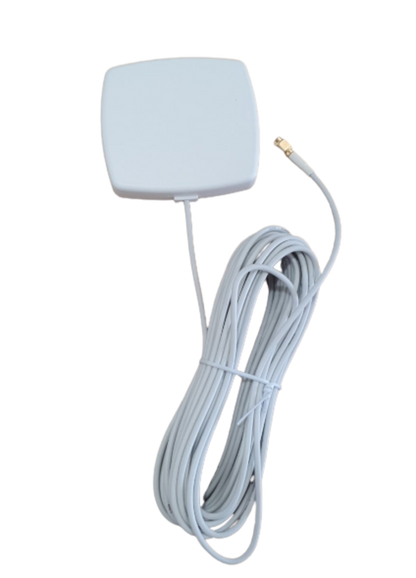

        • Long Cable Reach: Comes with an 8.0m SMA(M) cable for easy and convenient connectivity to your LTE devices.

        Documents:

        RFI LTE-APL-8M-SMA 4G Antenna - Datasheet

        Product Specifications

        Brand RFI
        Length 6
        Width 6
        Height 2
        Antenna Application Terminal Antenna
        Antenna Cable Type LMR195
        Antenna Configuration SISO
        Antenna Port Connectors SMA (M)
        Antenna Type Omni
        Cable Length (m) 8
        Connector SMA(M)
        Coverage Type Omni-directional
        Installation Type Internal or external mounting
        Low PIM No
        Max Frequency (MHz) 2700
        Max Gain (dBd/dBi) 4.4
        MIMO Support No
        Min Frequency (MHz) 698
        Min Gain (dBd/dBi) -0.7
        Mount Supported Adhesive mount, Magnetic base
        Mount Supported - Detailed Adhesive mount, Magnetic base
        No. of Antenna Ports 1
        Technologies Supported 2G, 3G, 4G
