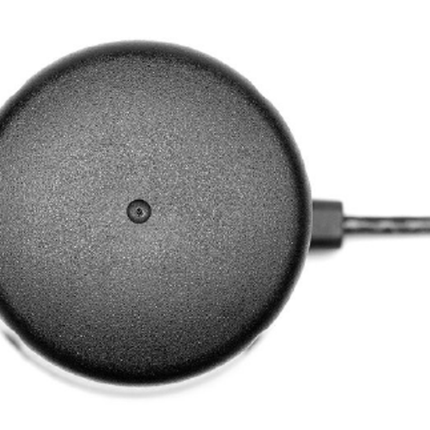

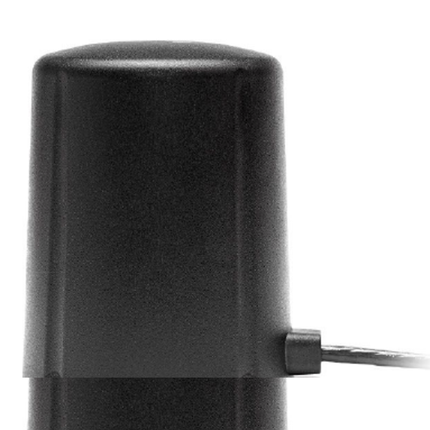

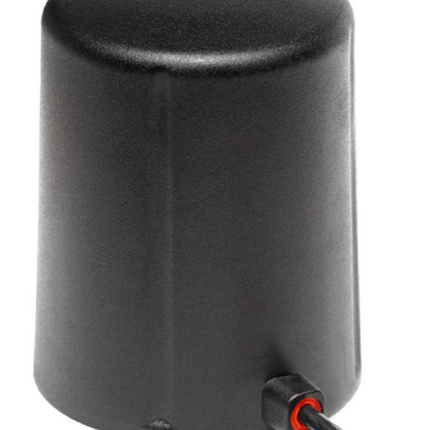

RFI LTE-MAGS-3M-SMA Magnetic Mount Antenna, SISO, 698-2700 MHz, 3m, SMA-Male

RFI LTE-MAGS-3M-SMA Magnetic Mount Antenna, SISO, 698-2700 MHz, 3m, SMA-Male

Available

Brand:
Item ID:
168014270
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LTE-MAGS-3M-SMA
Send Request for Quote (RFQ) Discount Offers
RFI LTE Magnetic Base Antenna (698-2700 MHz); 3m SMA(M), delivers stable, omni-directional gain across all common global cellular bands from 698 to 2.7 GHz.
Regular price $126.50
Regular price $0.00 Sale price $126.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

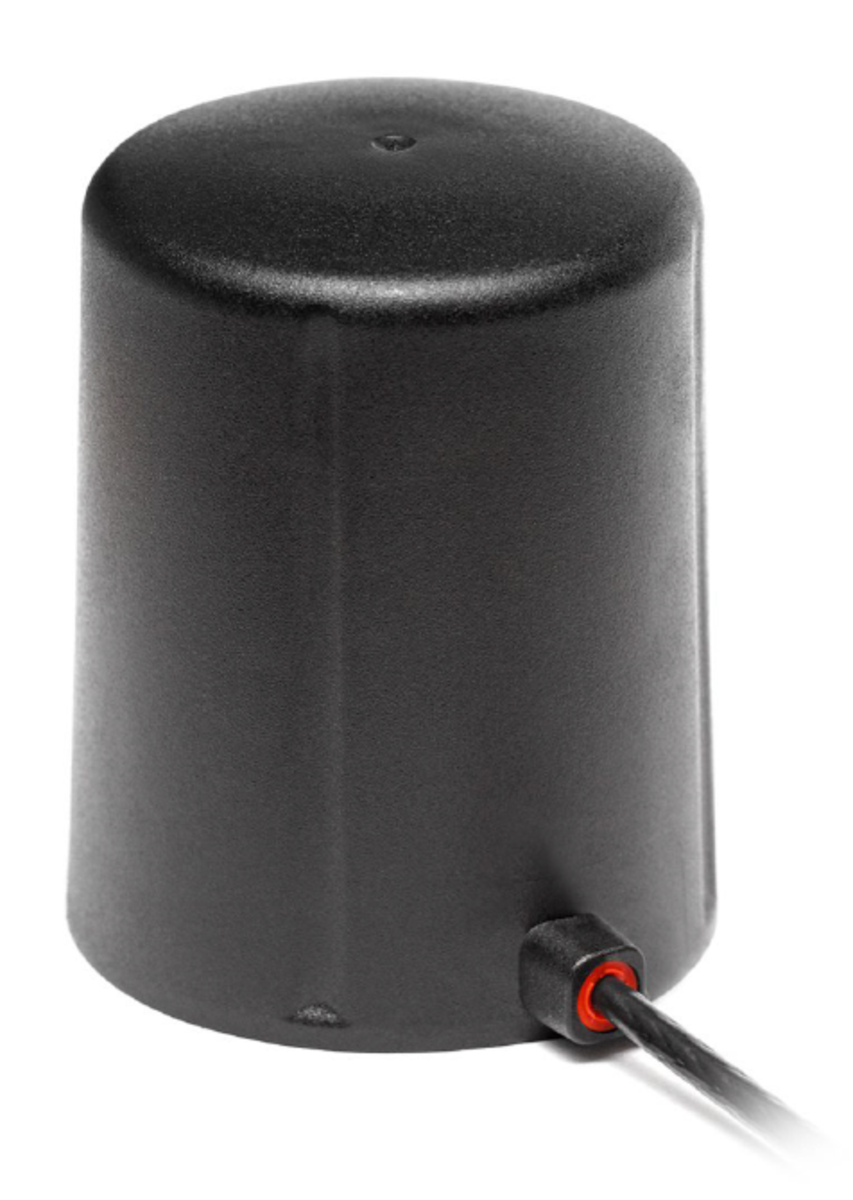

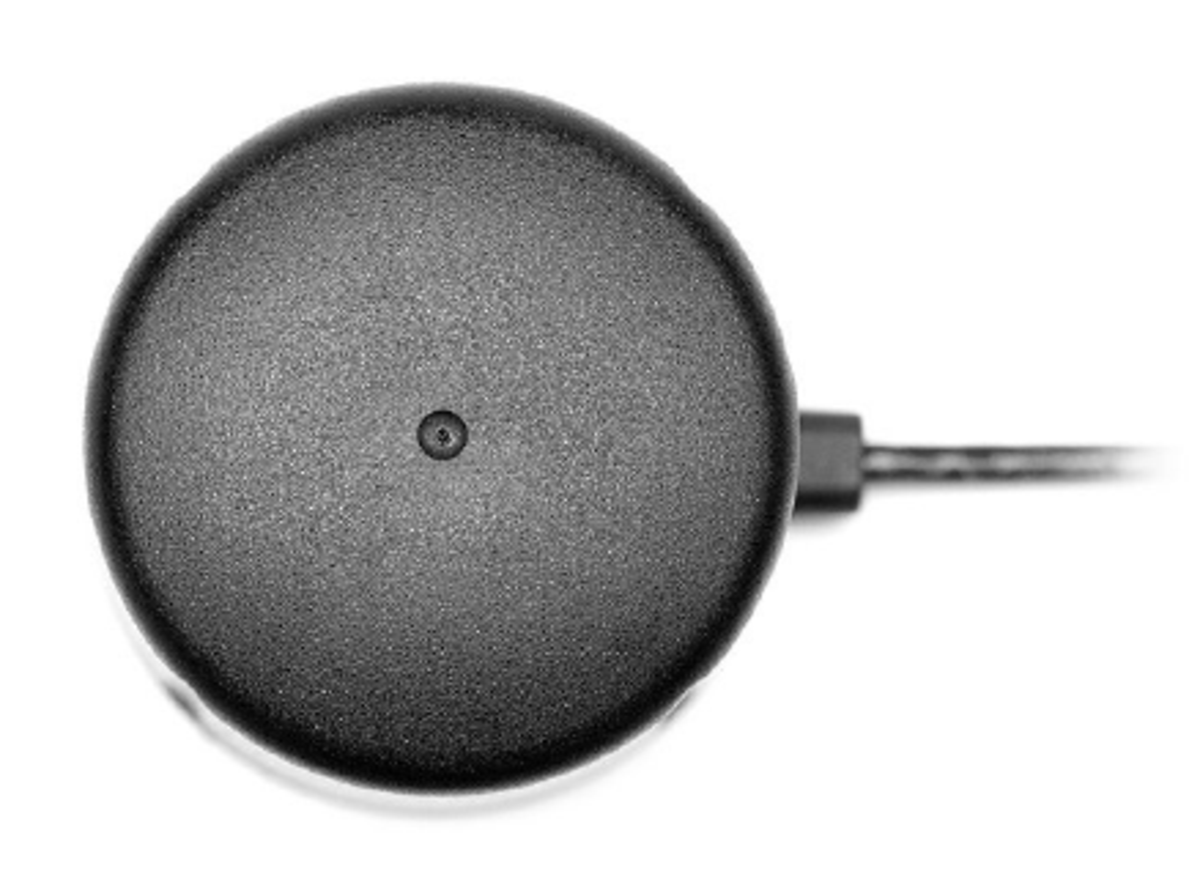

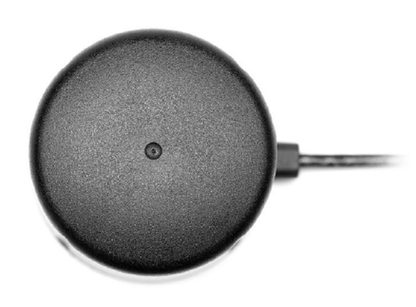

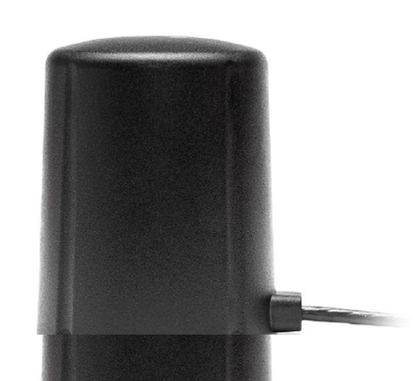

RFI LTE Magnetic Base Antenna (698-2700 MHz); 3m SMA(M) enhances cellular connectivity. The LTE-MAGS Series delivers stable omni-directional gain across global 4G, 3G & 2G bands (698 MHz to 2.7 GHz). This low-profile antenna ensures seamless transition between major markets worldwide, eliminating the need for antenna changes. The robust magnetic base, featuring high-quality rare earth magnets, securely mounts to any metal surface for reliable performance.

Features:

  • Magnetic Mount: Strong magnetic base for secure attachment to any metal surface, providing versatile deployment options.
  • Wideband Coverage: Stable omni-directional gain across all major 4G, 3G & 2G cellular bands (698 MHz to 2.7 GHz), ensuring reliable connectivity.
  • Global Compatibility: Eliminate the need for antenna changes when transitioning between major global markets, from 4G to 3G.
  • High-Performance Design: Designed for optimal performance, this antenna is ground plane dependent and guarantees high-quality signal reception.
  • IP69K Rating: Resilient to harsh environments, ensuring durability and longevity in challenging conditions.
  • Customised cable & connectors: Tailor the cable and connectors based on your specific requirements (Minimum Order Quantities may apply).

Electrical Specifications:

  • Frequencies MHz: 698-960 | 1710-2170 | 2500-2700
  • Efficiency %: 60.1 | 68.0 | 56.4
  • Peak Gain dBi*: 1.8 | 3.1 | 2.9

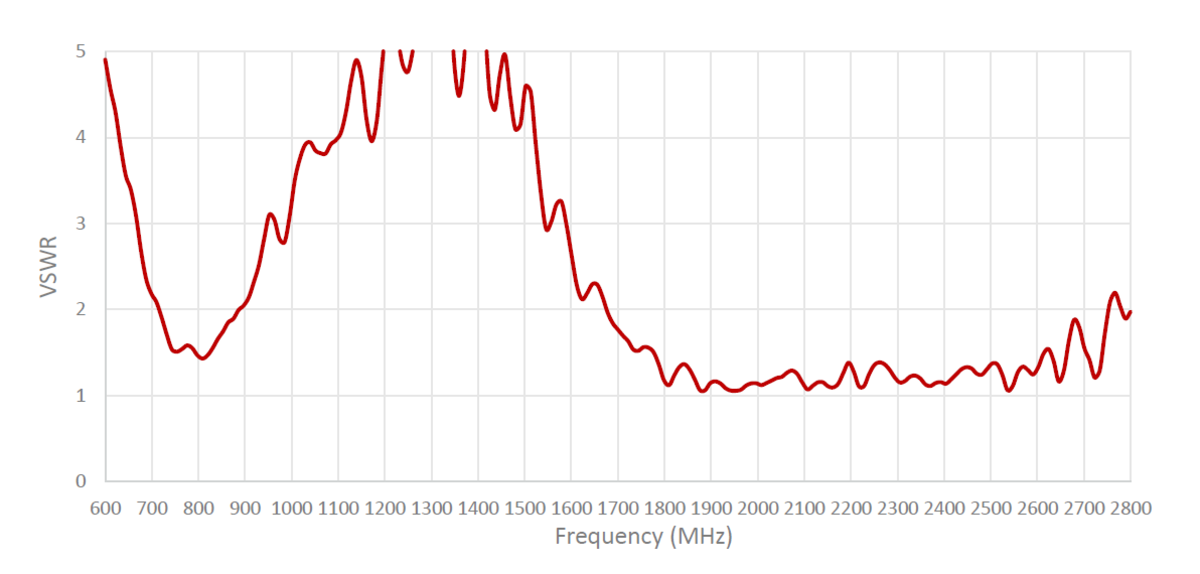

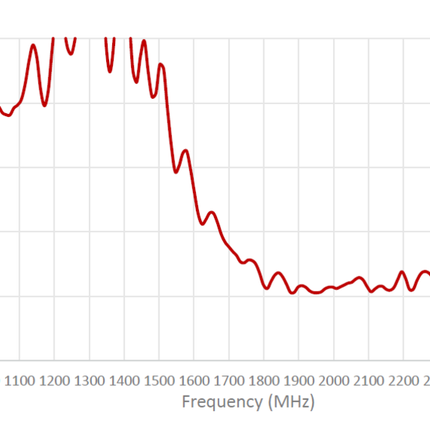

  • VSWR*: <2.0:1
  • Impendence Ohm: 50
  • Polarisation: Linear
  • Radiation Pattern: Omni-directional
  • Max. Input Power W: 25

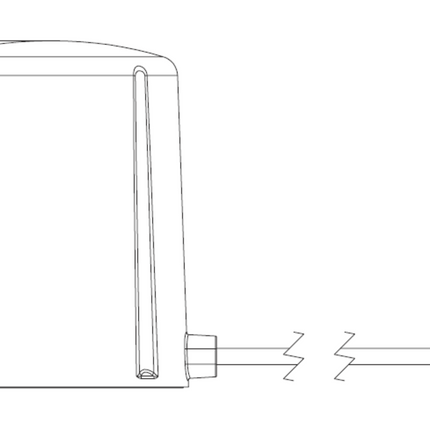

Mechanical Specifications:

  • Mounting Type: Magnetic Mount

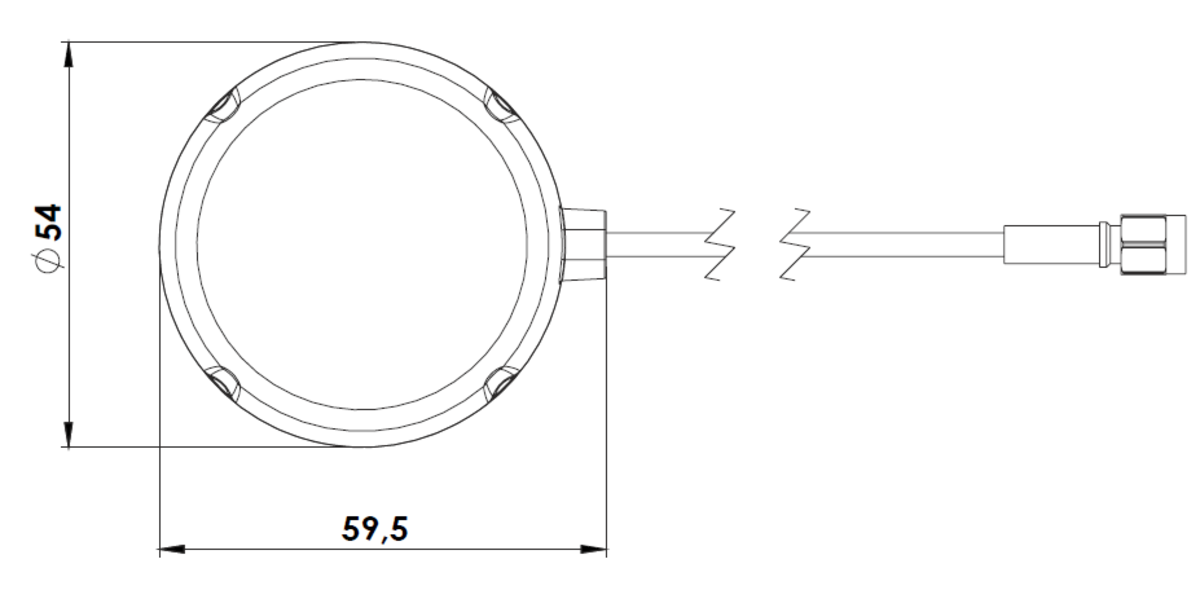

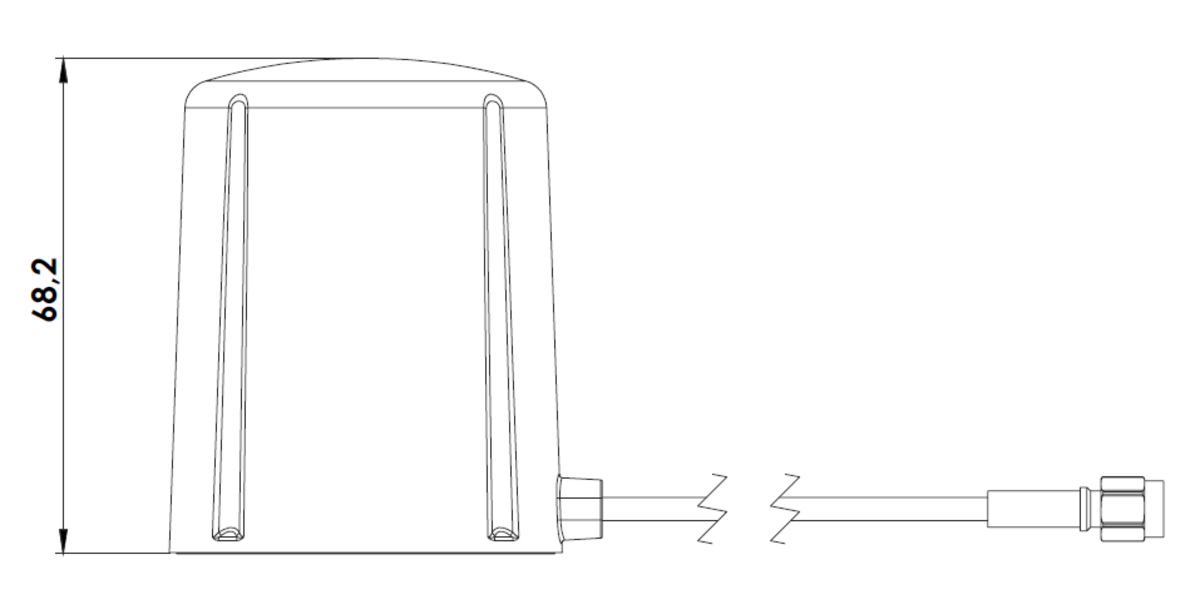

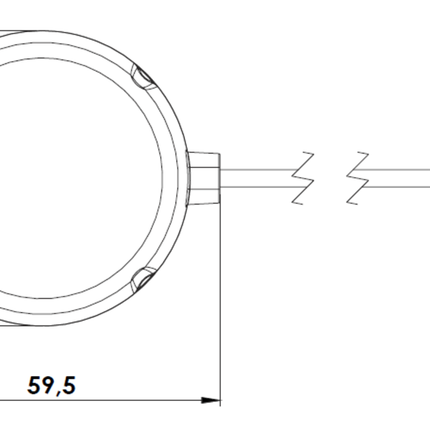

  • Dimensions mm: Ø 54 x 68.2
  • Radome Type: PC/ABC UV Stable
  • Radome Colour: Black
  • Base Type: Zamak
  • Operating Temperature °C: -40 to +85
  • IP Rating: IP69K
  • Cable: 3M RG174
  • Connector: SMA male

Documents:

RFI LTE-MAGS-3M-SMA Antenna - Datasheet

Product Specifications

MPN LTE-MAGS-3M-SMA
Antenna application Terminal Antenna
Antenna cable type RG174
Antenna features Omnidirectional, Multi Band Capable
Antenna port connectors SMA (M)
Antenna type Omni SISO
Band SISO LTE
Brands RFI
Cable length m 3
Connector SMA(M)
Coverage type Omni-directional
Frequency band Multi-Band 700-2700 MHz
Frequency mhz 698 - 960 / 1710 - 2170 / 2300 - 2700
Height 4
Ingress protection ip IP69
Installation type Internal or external mounting
Length 6
Low pim No
Max frequency mhz 2700
Max gain dbd dbi 3.1
Mimo support No
Min frequency mhz 698
Min gain dbd dbi 1.8
Mount supported Magnetic base
Mount supported detailed Magnetic base
No of antenna ports 1
Nominal gain dbi 1.8 dBi / 3.1 dBi / 2.9 dBi (peak)
Packaging Clear Bag
Power w 25
Technologies supported 2G, 3G, 4G
Technology type UMTS, LTE
Termination 1 x SMA male connectors
Tuned bandwidth Full. No tuning required
Vswr <3.0:1
Width 4
