RFI LTE Dome Antenna, 2x2 MIMO, 698-2700 MHz, Stud Mount, 2x 1.5m Cable, SMA-Male - No GPS

    RFI LTE Dome Antenna, 2x2 MIMO, 698-2700 MHz, Stud Mount, 2x 1.5m Cable, SMA-Male - No GPS

      Product form
      Brand:
      RFI
      Item ID:
      168014271
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      LTE-MDA-1.5M-SMA
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI's LTE-MDA stud mount dome antennas supports operation on 698-2700 MHz band with 2x2 MIMO via 2 x 1.5m Dacar 302 cables with  SMA(M) termination.

      Available

      $120.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

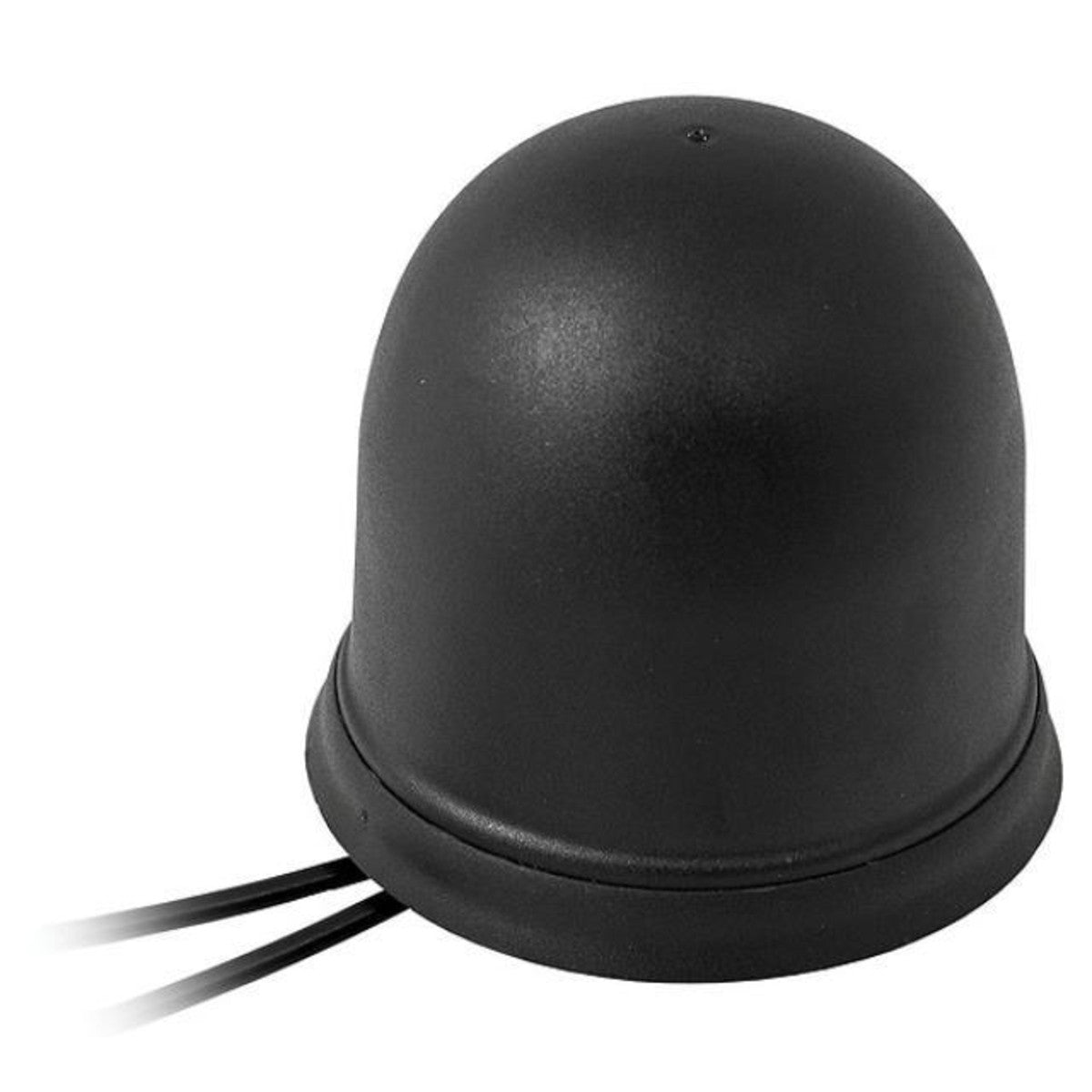

        This LTE Dome antenna from RFI supports 2x2 MIMO operation over 698 to 2700 frequency range. Supplied with 2 cables each 1.5m long and terminated with SMA(M) connectors, this antenna is suitable for most LTE/IoT routers like Teltonika, Robustel, Milesight and Ruijie Reyee. RFI's LTE-MDA Series is a compact low-profile omni-directional 2x2 MIMO LTE antenna that provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz. The antenna features an attractive, compact housing which can be used in both indoor and outdoor applications. This antenna does not support GPS operation. If you're looking for GPS variant, please consider RFI LTE Dome Antenna with GPS.

        Product Features:

        • This dome antenna has a Polycarbonate radome and IP67 rating, making it suitable for outdoor use.
        • Low-profile design allows for maximum overhead clearance.
        • Stud mounting offers ease of installation in the field.

        Installation:

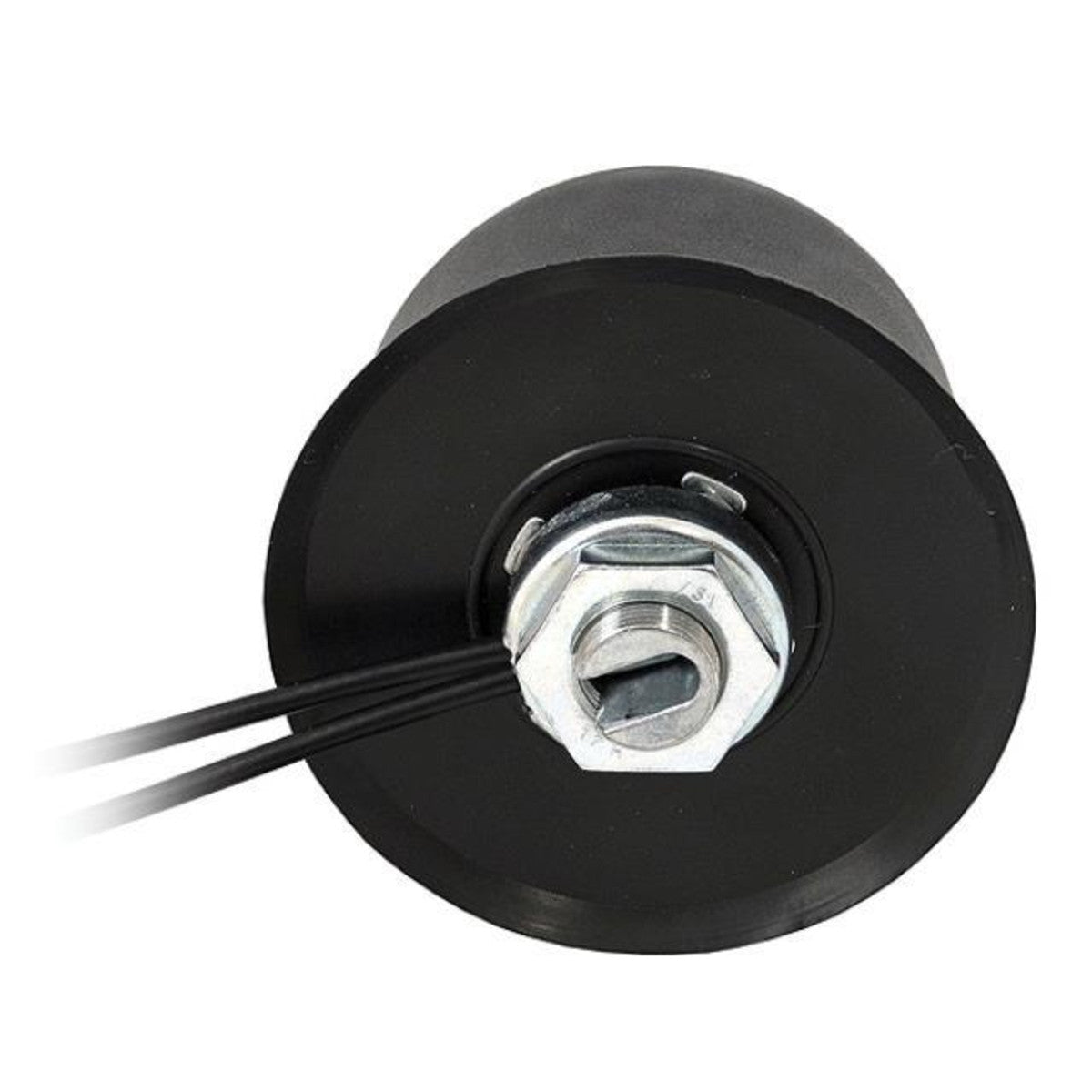

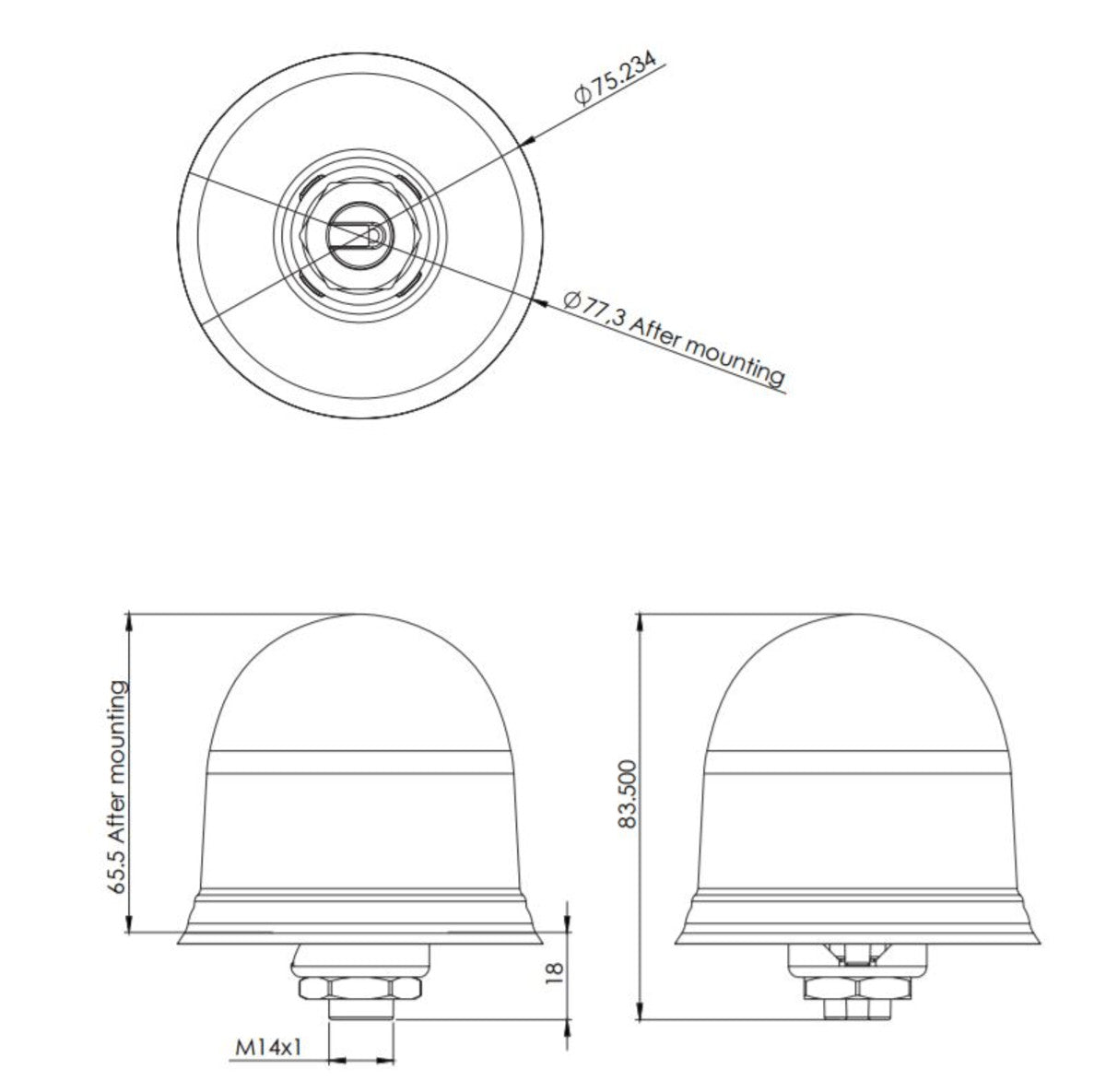

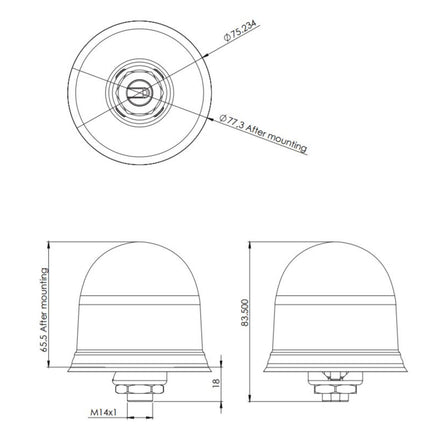

        The antenna is mounted via a M14 mm stud/nut and the base incorporates a rubber seal.

        Documents:

        RFI LTE-MDA-1.5M-SMA Antenna - Datasheet

        Product Specifications

        MPN LTE-MDA-1.5M-SMA
        Antenna application Terminal Antenna, Vehicle Antenna
        Antenna cable type DACAR302
        Antenna features Omnidirectional, Multi Band Capable
        Antenna port connectors SMA (M)
        Antenna type Stud Mounted, Omni MIMO
        Band MIMO LTE
        Brands RFI
        Cable and connector 2 x 1.5m Dacar302 terminated with SMA (M) connector
        Cable length m 1.5
        Coverage type Omni-directional
        Frequency band Multi-Band 700-2800 MHz
        Frequency mhz 698-960|1710-2170|2500-2700
        Height 4
        Ingress protection ip IP67
        Installation type Internal mounting
        Length 6
        Low pim No
        Max frequency mhz 2700
        Max gain dbd dbi 3.4
        Mimo support Yes
        Min frequency mhz 698
        Min gain dbd dbi -0.8
        Mount supported Screw mount
        Mount supported detailed Screw mount
        No of antenna ports 2
        Nominal gain dbi -0.8dBi / 2.5 dBi / 3.4 dBi
        Packaging Clear Bag
        Polarisation Vertical
        Power w 25
        Radome diameter mm 77.3mm
        Technologies supported 2G, 3G, 4G
        Technology type LTE
        Tuned bandwidth Full. No tuning required
        Vswr <2.8:1
        Whip length mm 65.5
        Width 4
