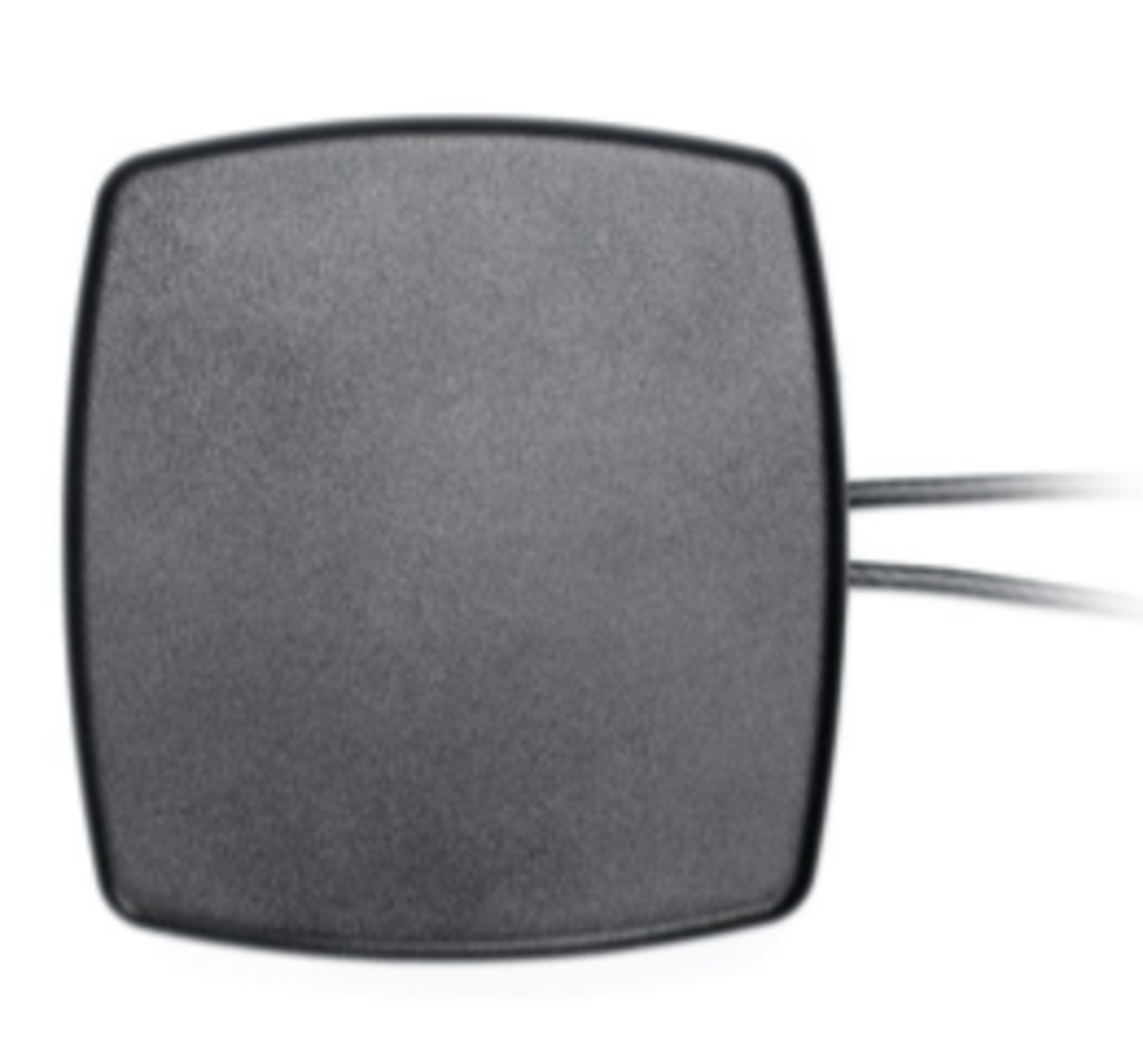

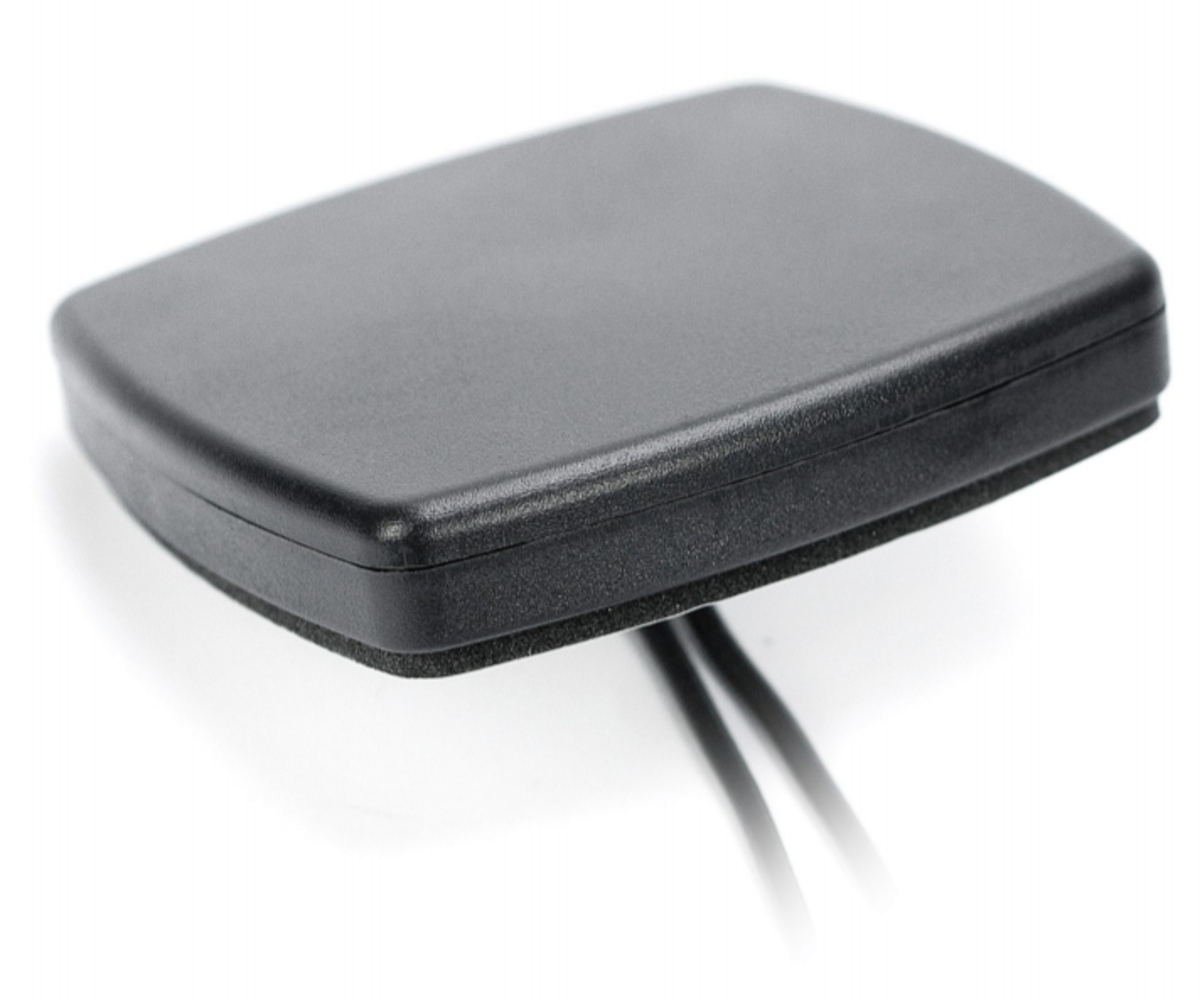

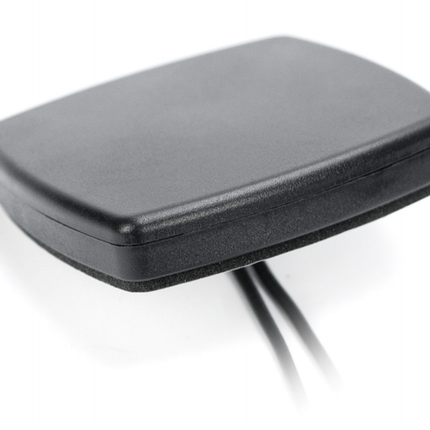

RFI LTE-MLP-1.5M-SMA MIMO Low Profile Antenna, 698-2700 MHz, 2x 1.5m, SMA-Male

RFI LTE-MLP-1.5M-SMA MIMO Low Profile Antenna, 698-2700 MHz, 2x 1.5m, SMA-Male

Available

Brand:
Item ID:
168014272
Export:
Accepted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
LTE-MLP-1.5M-SMA
Send Request for Quote (RFQ) Discount Offers
RFI LTE MIMO Low Profile Antenna (698-2700 MHz); 2 X 1.5m SMA(M) provides excellent coverage for mobile and fixed data applications from 698 MHz to 2.7 GHz.
Regular price $108.50
Regular price $0.00 Sale price $108.50
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

RFI LTE MIMO Low Profile Antenna (698-2700 MHz); 2 X 1.5m SMA(M) elevates mobile and fixed data connectivity.  The LTE-MLP Series offers a compact, low-profile, omni-directional design, delivering exceptional coverage from 698 MHz to 2.7 GHz. This antenna ensures optimal performance and ease of installation in the field, with an attractive housing suitable for both indoor and outdoor applications.

Product Features:

  • Wide Frequency Coverage: Excellent coverage across common LTE bands from 698 MHz to 2.7 GHz for versatile mobile and fixed data applications.

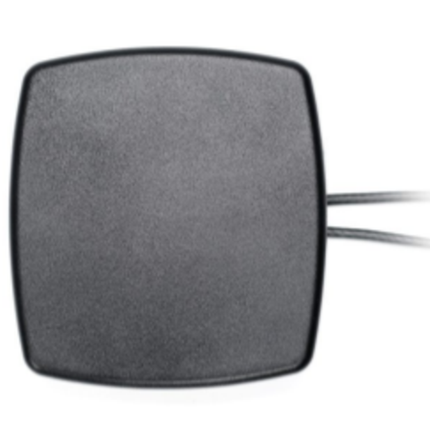

  • Compact Low-Profile Design: Attractive, low-profile housing designed for maximum overhead clearance, ensuring an unobtrusive yet powerful solution.

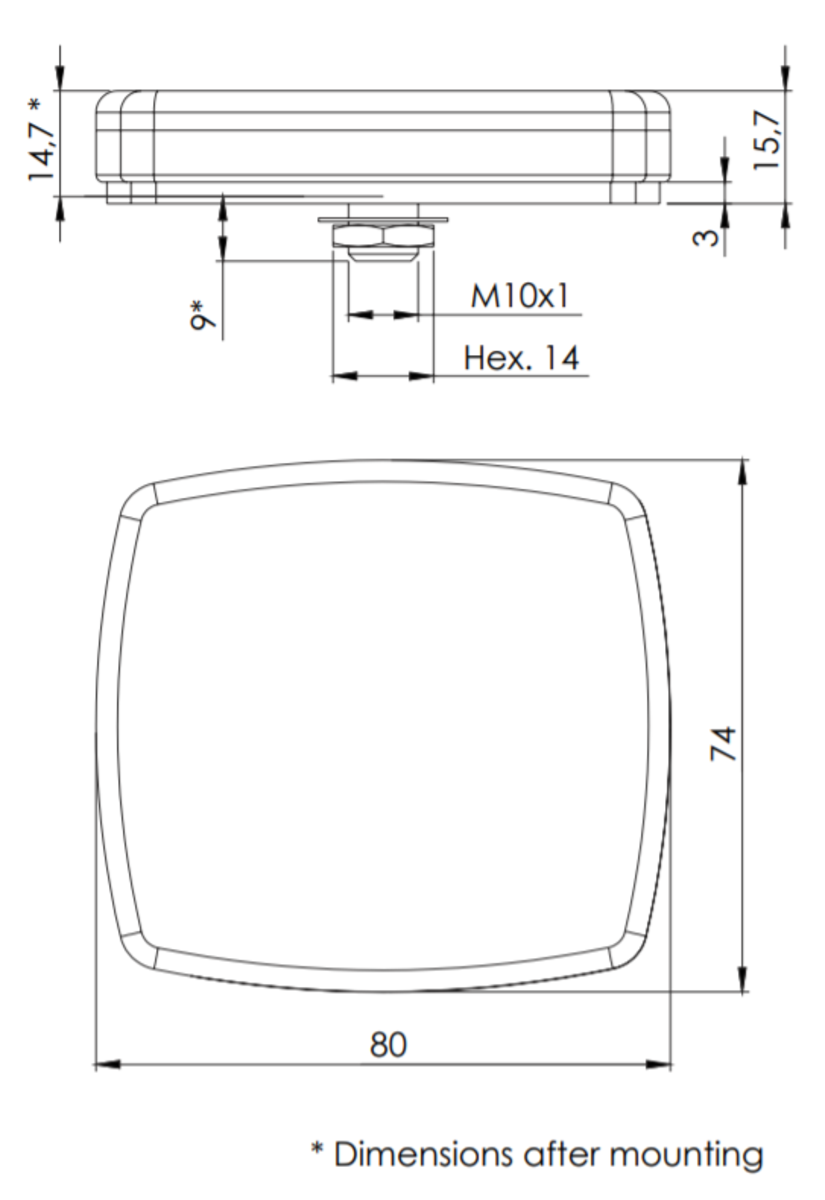

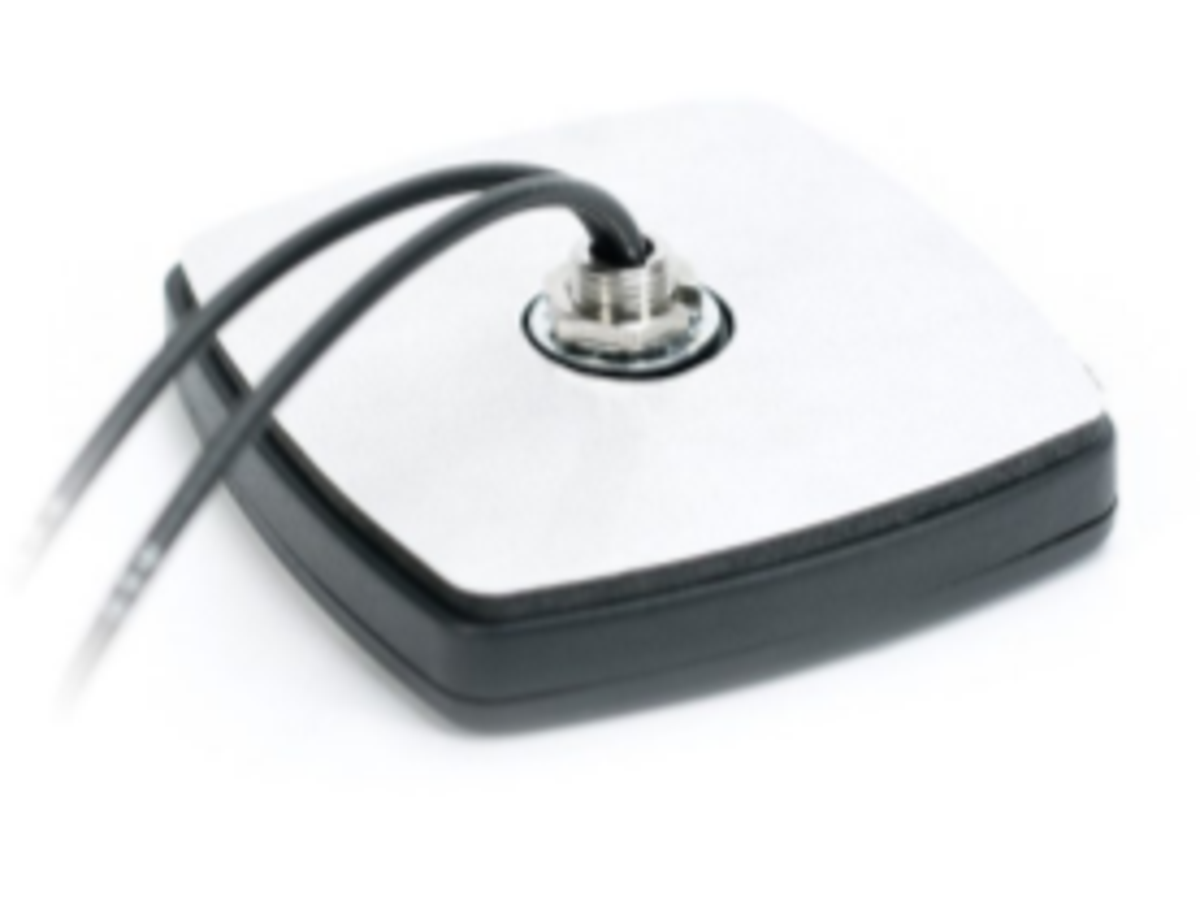

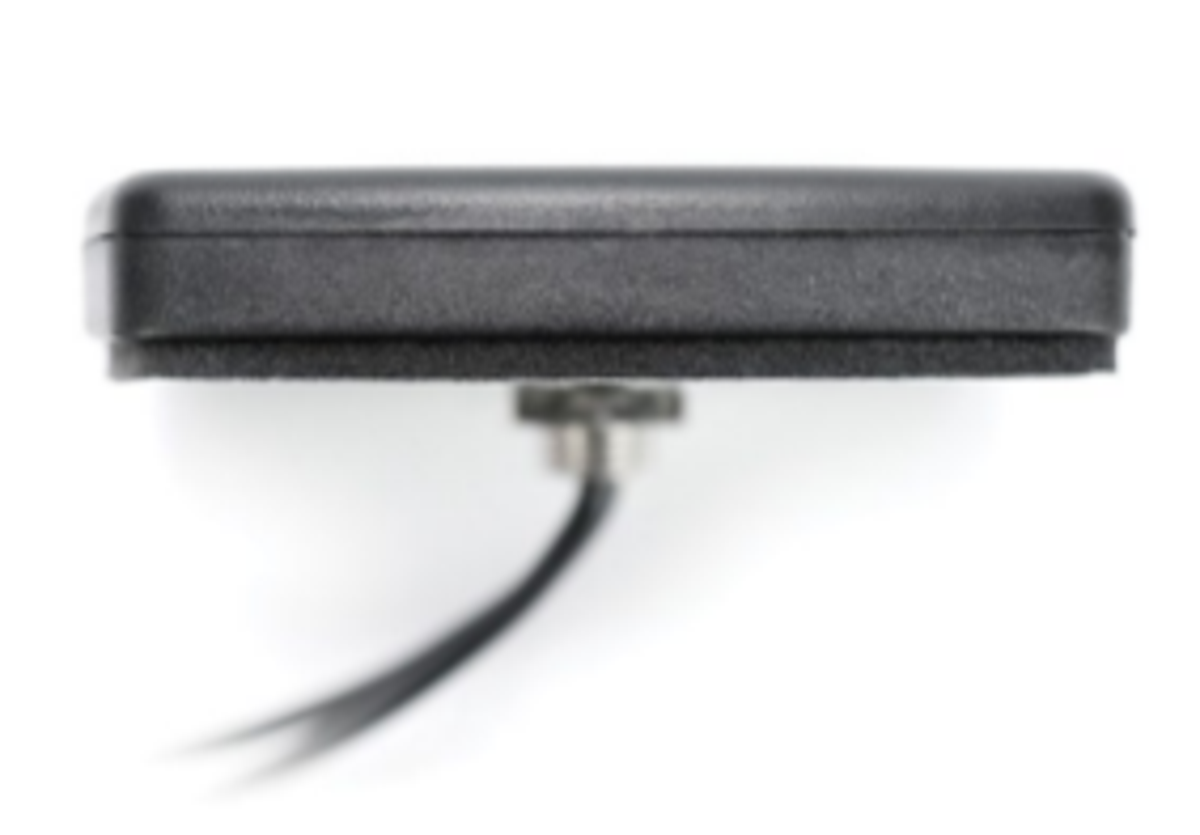

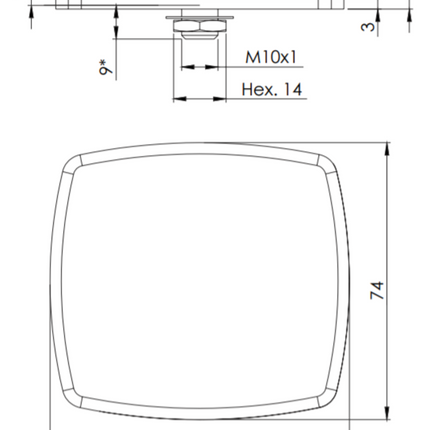

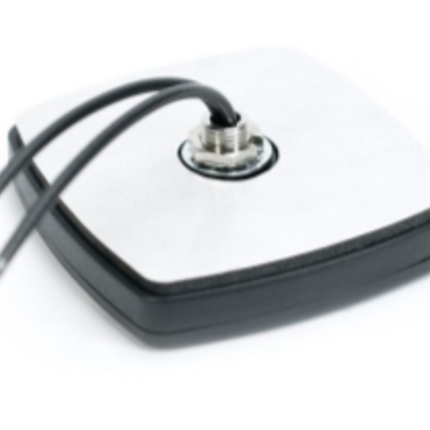

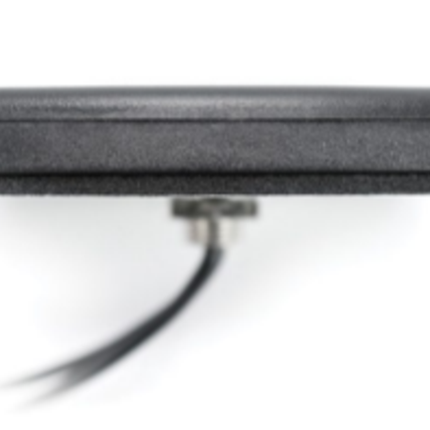

  • Stud Mounting: The antenna is mounted via a M10 mm stud/nut and the base incorporates a rubber seal.
  • Outdoor Durability: Polycarbonate radome ideal for outdoor use, providing robust protection against environmental elements.
  • Ingress Protection (IP67): Built to withstand challenging conditions, offering superior protection against dust and water ingress.

Application Areas:

  • Ideal for mobile and fixed data applications
  • Suitable for both indoor and outdoor use

In the Box:

  • RFI LTE-MLP-1.5M-SMA MIMO Low Profile Antenna
  • 2x 1.5m cable
  • SMA-Male connector

Documents:

RFI LTE-MLP-1.5M-SMA Antenna - Datasheet

Product Specifications

MPN LTE-MLP-1.5M-SMA
Antenna application Terminal Antenna, Vehicle Antenna
Antenna cable type RG174
Antenna configuration 2x2 MIMO
Antenna features Omnidirectional, Multi Band Capable
Antenna port connectors SMA (M)
Antenna type Stud Mounted, Omni MIMO
Band MIMO LTE
Brands RFI
Cable and connector 2 x 1.5m LL100 terminated with SMA male connectors
Cable length m 1.5
Connector SMA(M)
Coverage type Omni-directional
Frequency band Multi-Band 700-2800 MHz
Frequency mhz 698-960|1710-2170|2300-2700
Height 4
Ingress protection ip IP67
Installation type Internal or external mounting
Length 6
Low pim No
Max frequency mhz 2700
Max gain dbd dbi 4.4
Mimo support Yes
Min frequency mhz 698
Min gain dbd dbi 0.7
Mount supported Screw mount
Mount supported detailed Screw mount
No of antenna ports 2
Nominal gain dbi 1.4 / 2.7 / 4.4
Packaging Clear Bag
Power w 25
Technologies supported 2G, 3G, 4G
Technology type LTE
Termination 2 x SMA male connectors
Tuned bandwidth Full. No tuning required
Vswr <2.5:1
Width 4
