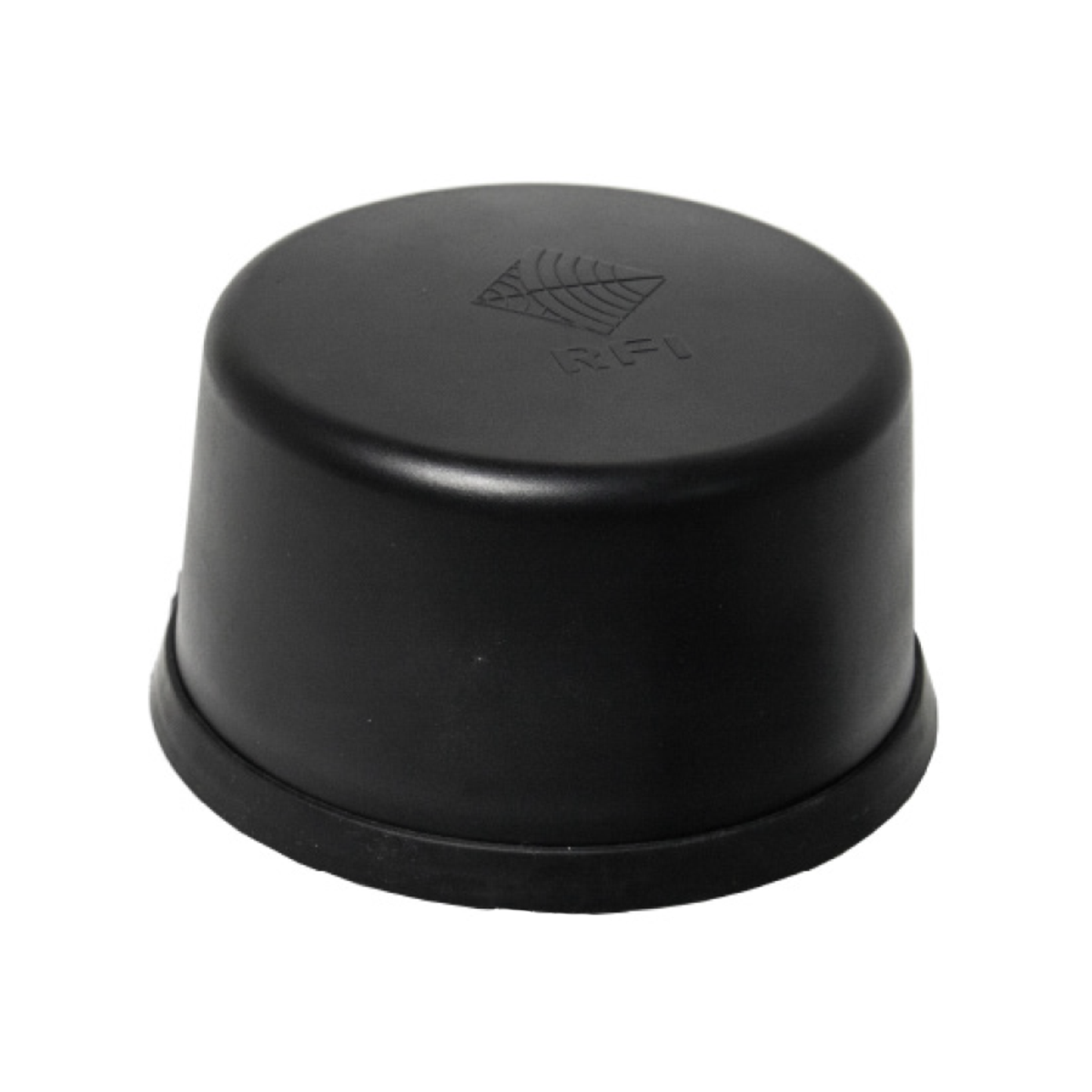

RFI LMHP-1.5M-F LTE MIMO Puck Antenna, 698-2700 MHz, 2x 1.5m, FME-Female

    RFI LMHP-1.5M-F LTE MIMO Puck Antenna, 698-2700 MHz, 2x 1.5m, FME-Female

      Product form
      Brand:
      RFI
      Item ID:
      168014254
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      LMHP-1.5M-F
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI LTE MIMO Puck Antenna (698-2700 MHz); 2 X 1.5m FME(F) covering all cellular bands which provides increase data speed.

      Available

      $148.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        The LMHP-GW-1.5M-FS incorporates 2 antennas in a single, ruggedised low profile housing. Two (MIMO) LTE/4G/3G antennas covering all cellular bands which provides increase data speed. Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.
        • 2 antenna feeds covering: 2 x LTE (698-960/1710-2700 MHz)
        • M16 stud offers ease of installation in the field
        • Ingress protection to IP65

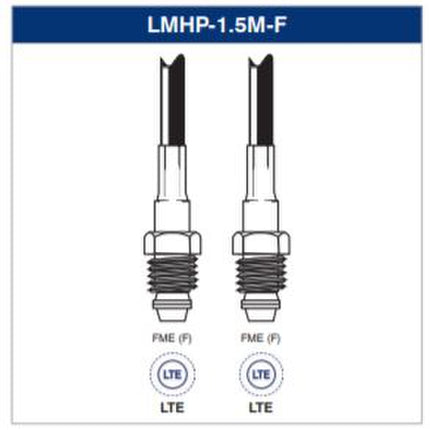

        • 2 x LTE 1.5m cables are terminated with FME(F) connectors
        Other cable/connector configurations are available on request.

        Documents:

        RFI LMHP-1.5M-F Antenna - Datasheet

        Product Specifications

        MPN LMHP-1.5M-F
        Antenna cable type RG174
        Antenna features Multi Band Capable
        Antenna port connectors FME (F)
        Antenna type Low Profile Transit
        Brands RFI
        Cable and connector 2 x 1.5m RG174 / FME(F)
        Cable length m 1.5
        Coverage type Omni-directional
        Frequency mhz 698-960|1710-2700
        Height 4
        Ingress protection ip IP65
        Installation type Internal or external mounting
        Length 5
        Low pim No
        Max frequency mhz 2700
        Max gain dbd dbi 4
        Mimo support Yes
        Min frequency mhz 698
        Min gain dbd dbi 2
        Mount supported Stud mount
        Mount supported detailed Stud mount
        Mounting M16 thread stud
        No of antenna ports 2
        Nominal gain dbi 45295
        Power w 10
        Radome diameter mm 110
        Technologies supported 4G
        Tuned bandwidth Full. No tuning required
        Vswr <2.5:1
        Width 5
