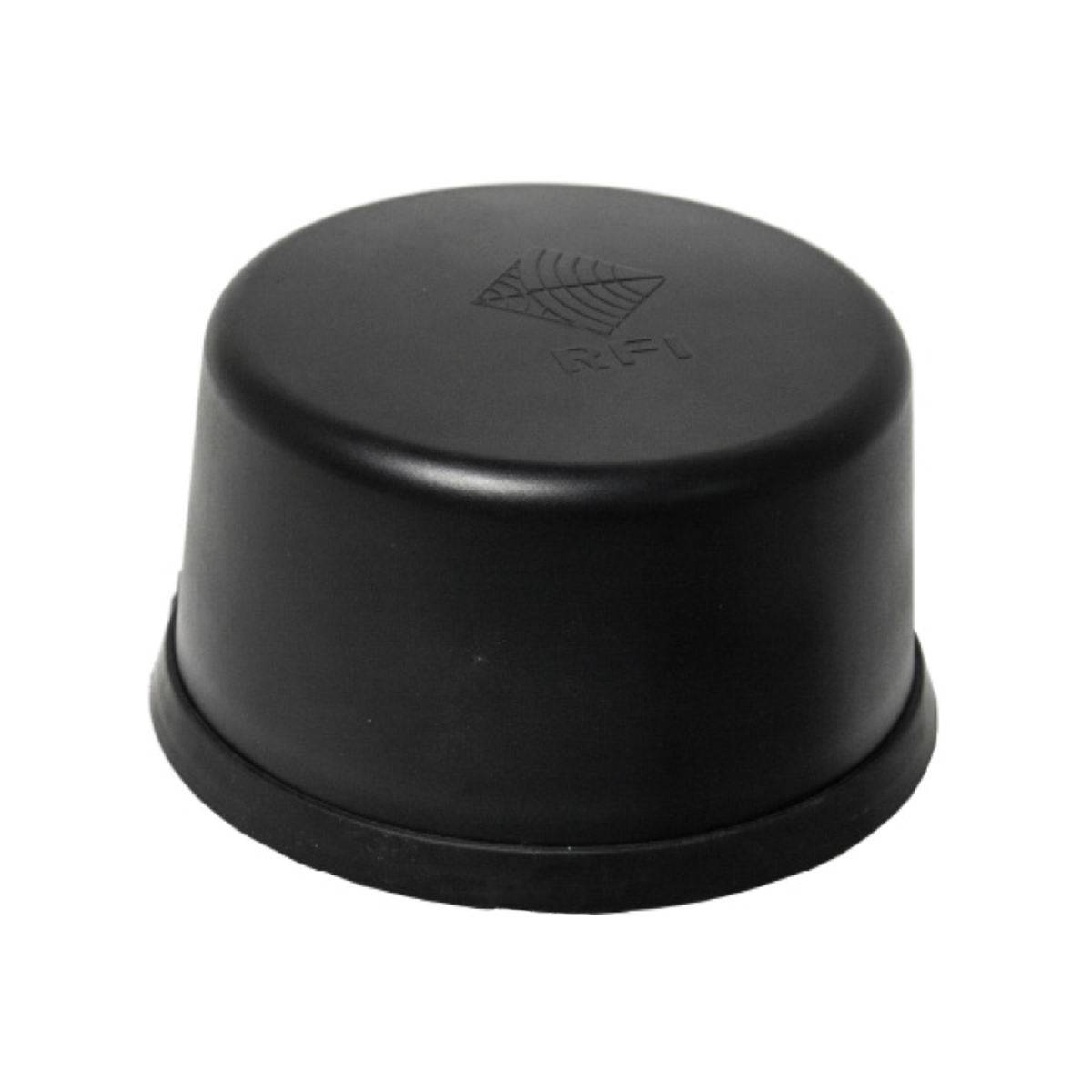

RFI LMHP-GW-1.5M-FS LTE/WiFi MIMO and GPS Puck Antenna, 5x 1.5m, FME-Female and SMA-Male

    RFI LMHP-GW-1.5M-FS LTE/WiFi MIMO and GPS Puck Antenna, 5x 1.5m, FME-Female and SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014256
      Export:
      Accepted
      Shipping:
      Please contact us for lead time
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      MPN/Options:
      LMHP-GW-1.5M-FS
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI LTE/WiFi MIMO & GPS Puck Antenna (698-2700 MHz 2.4/5.8 GHz & GPS); 5 X 1.5m FME(F) SMA(M) covering all cellular bands which provides increased data

      $241.00

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page
      •  Item available to backorder. Please contact us for lead time.

      • Pay securely! All major cards accepted.

        shop pay

      Product Description

      The LMHP-GW-1.5M-FS incorporates 5 antennas in a single, ruggedised low profile housing. Two (MIMO) LTE/4G/3G antennas covering all cellular bands which provides increased data speed. Similarly, two (MIMO) dual band WiFi antennas give blistering speeds at both 2.4 and 5.8 GHz. And the fifth antenna is a high-performance active GPS antenna. Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.
      • 5 antenna feeds covering: 2 x LTE (698-960/1710-2700 MHz) 2 x WIFI (2.5 & 5.8 GHz) 1 x GPS (1575.42 MHz)
      • M16 stud offers ease of installation in the field
      • Ingress protection to IP65
      • 5 x RG174 cable terminated as follows:
      • LTE1 = FME(F)
      • LTE2 = FME(F)
      • WIFI1 =SMA(M)
      • WIFI2 =SMA(M)
      • GPS =SMA(M)
      Other cable/connector configuration available on request.

      Documents:

      RFI LMHP-GW-1.5M-FS Antenna - Datasheet

      Product Specifications

      MPN LMHP-GW-1.5M-FS
      Antenna application Terminal Antenna, Vehicle Antenna
      Antenna cable type RG174
      Antenna port connectors SMA (M), FME (F)
      Antenna type Ground Independent
      Band LTE = 698-960/1710-2700 MHz / WIFI = 2.4/5.8 HHz / GPS = 1575.42 MHz
      Brands RFI
      Cable length m 1.5
      Connector vhf LTE = 2 x FME(F) / WIFI = 2 x SMA(M) / GPS = SMA(M)
      Coverage type Omni-directional
      Frequency band Multi-Band 700-2700 MHz
      Frequency mhz 824-960|1710-2170|2400-2500
      Height 4
      Ingress protection ip IP65
      Installation type Internal or external mounting
      Length 5
      Low pim No
      Max frequency mhz 5850
      Max gain dbd dbi 28
      Mimo support Yes
      Min frequency mhz 698
      Min gain dbd dbi 2
      Mount supported Stud mount
      Mount supported detailed Stud mount
      Mounting M16 thread stud
      No of antenna ports 5
      Nominal gain dbi LTE = 2/4 / WIFI = 5.5 / GPS = 28
      Power w 10
      Radome diameter mm 110
      Technologies supported Wi-Fi, 2G, 3G, 4G, GPS
      Tuned bandwidth Full. No tuning required
      Vswr LTE = <2.5:1 / WIFI = <2.0:1 / GPS = <1.5:1
      Width 5
