RFI LMHP-W-1.5M-FS LTE/WiFi MIMO Puck Antenna, 4x 1.5m, FME-Female and SMA-Male

    RFI LMHP-W-1.5M-FS LTE/WiFi MIMO Puck Antenna, 4x 1.5m, FME-Female and SMA-Male

      Product form
      Brand:
      RFI
      Item ID:
      168014257
      Export:
      Accepted
      Shipping:
      Ships out in 1-2 business days
      Warranty:
      Standard Warranty
      Product Liability:
      Global Insurance Except USA & Canada
      Options/MPN:
      LMHP-W-1.5M-FS
      Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy
      RFI LTE/WiFi MIMO Puck Antenna (698-2700 MHz & 2.4/5.8 GHz); Antenna; 4 X 1.5m FME(F) SMA(M) covering all cellular bands which provides increased data speed

      Available

      $183.50

      • Taxes included. Shipping rate calculated at checkout.
      • Purchase Order & instructions box available at Cart page

        • Pay securely! All major cards accepted.

          shop pay

        Product Description

        RFI LMHP-W-1.5M-FS LTE/WiFi MIMO Puck Antenna, 4x 1.5m, FME(F), SMA(M)

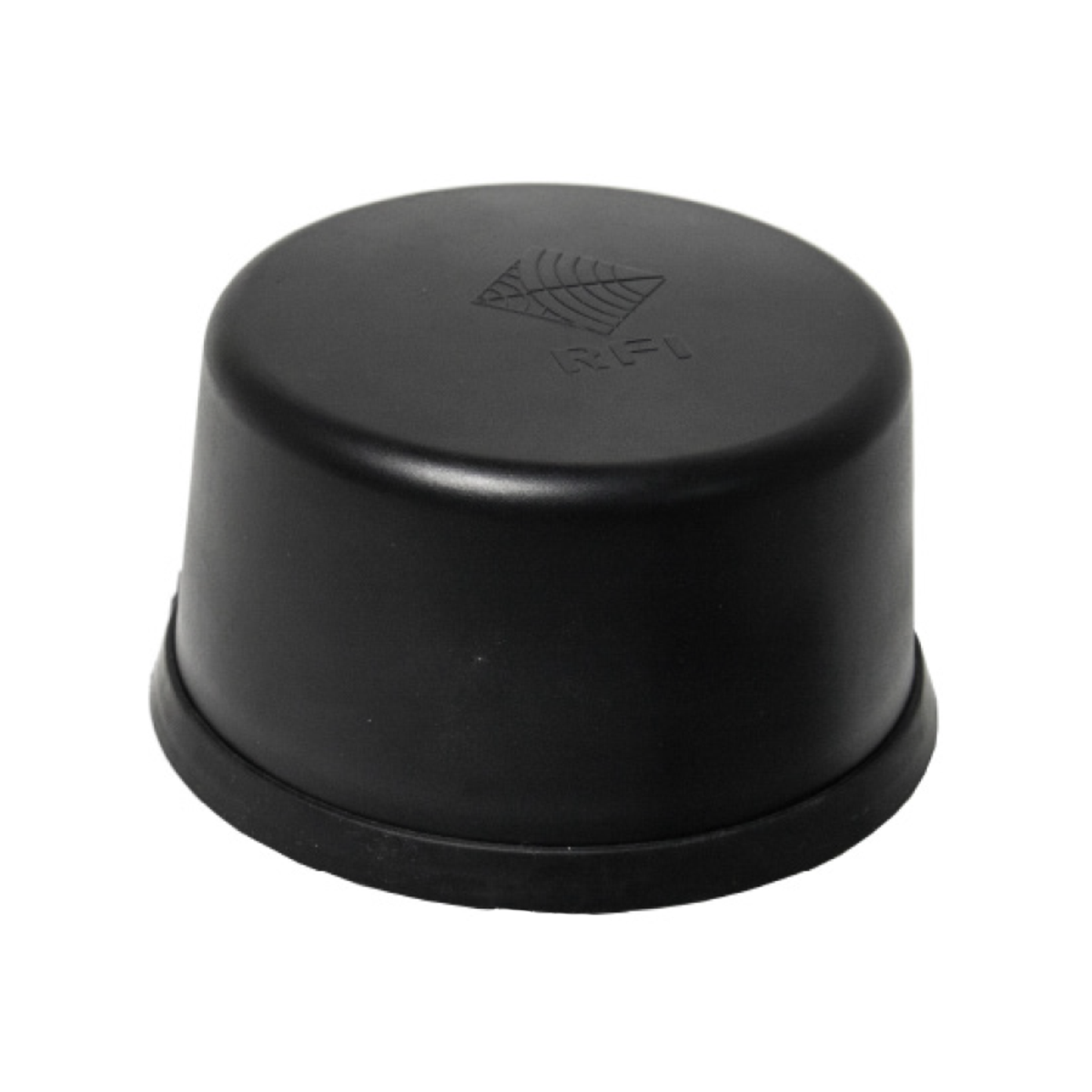

        The LMHP-W-1.5M-FS incorporates 4 antennas in a single, ruggedised low profile housing. Two (MIMO) LTE/4G/3G antennas covering all cellular bands which provides increased data speed. Similarly, two (MIMO) dual band WiFi antennas give blistering speeds at both 2.4 and 5.8 GHz. Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies.
        • 4 antenna feeds covering: 2 x LTE (698-960/1710-2700 MHz) 2 x WIFI (2.5 & 5.8 GHz)
        • M16 stud offers ease of installation in the field
        • Ingress protection to IP65

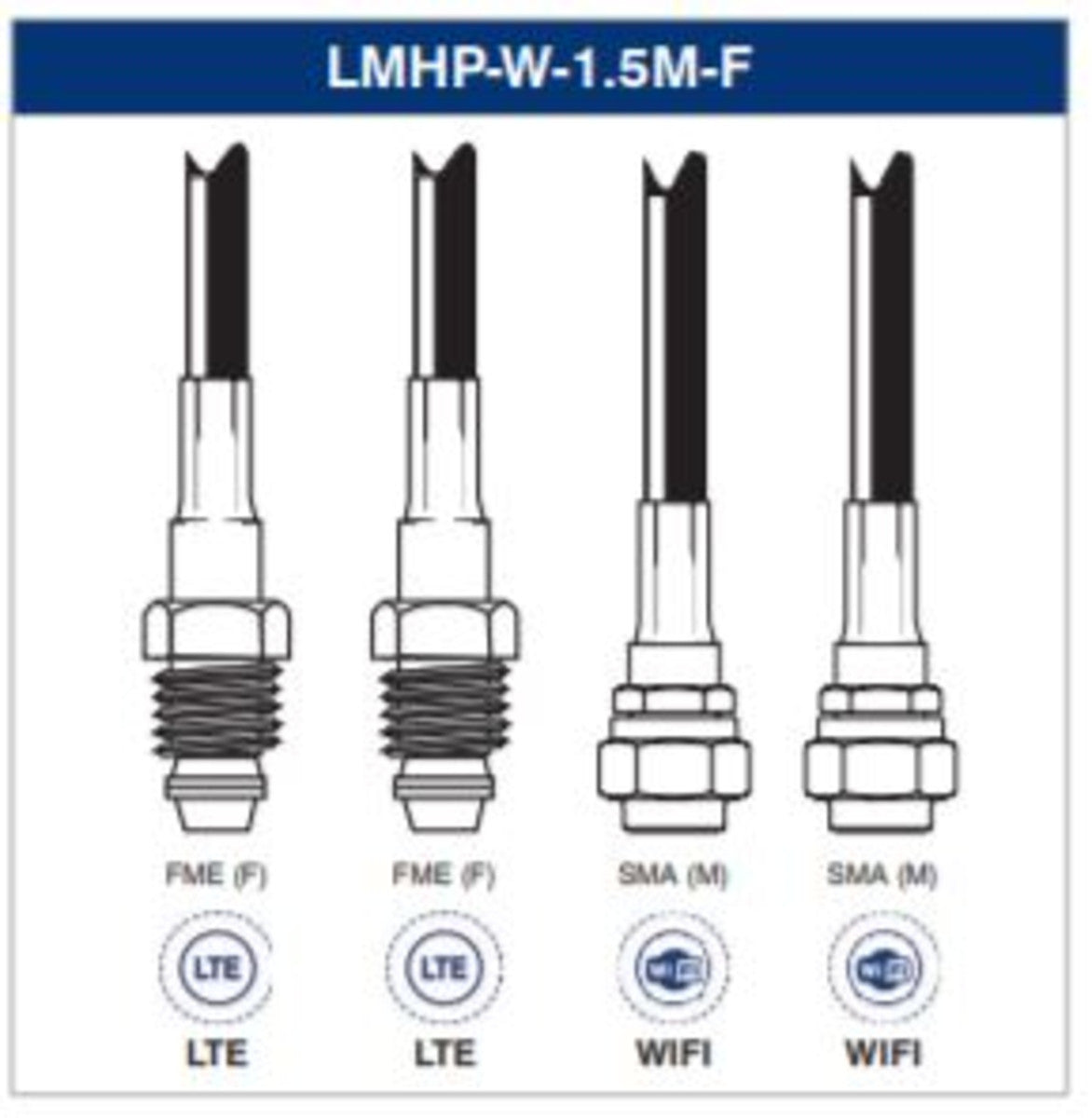

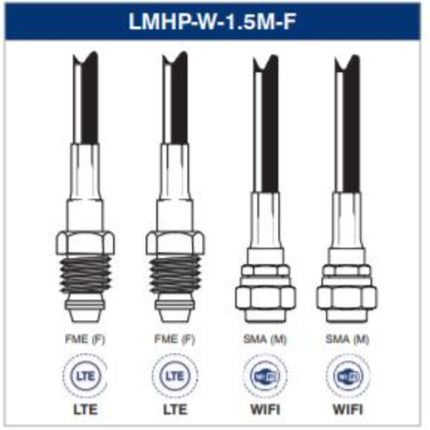

        • 4 x RG174 cables terminated with:
        • LTE1 =FME(F)
        • LTE2 =FME(F)
        • WIFI1 =SMA(M)
        • WIFI 2 =SMA(M)
        Other cable/connector configuration available on request.

        Documents:

        RFI LMHP-W-1.5M-FS Antenna - Datasheet

        Product Specifications

        MPN LMHP-W-1.5M-FS
        Antenna application Terminal Antenna, Vehicle Antenna
        Antenna cable type RG174
        Antenna port connectors SMA (M), FME (F)
        Antenna type Ground Independent
        Band LTE = 698-960/1710-2700 MHz / WIFI = 2.4/5.8 GHz
        Brands RFI
        Cable length m 1.5
        Connector vhf LTE = 2 x FME female / WIFI = 2 x SMA male
        Coverage type Omni-directional
        Frequency band Multi-Band 700-2700 MHz
        Frequency mhz 824-960|1710-2170|2400-2500
        Height 4
        Ingress protection ip IP65
        Installation type Internal or external mounting
        Length 5
        Low pim No
        Max frequency mhz 5850
        Max gain dbd dbi 5.5
        Mimo support Yes
        Min frequency mhz 698
        Min gain dbd dbi 2
        Mount supported Stud mount
        Mount supported detailed Stud mount
        Mounting M16 thread stud
        No of antenna ports 4
        Nominal gain dbi LTE = 2/4 / WIFI = 5.5
        Power w 10
        Radome diameter mm 110
        Technologies supported Wi-Fi, 2G, 3G, 4G
        Technology type WIFI-2.4GHz, WIFI-5GHz, LTE
        Tuned bandwidth Full. No tuning required
        Vswr LTE = <2.5:1 / WIFI = <2.0:1
        Width 5
