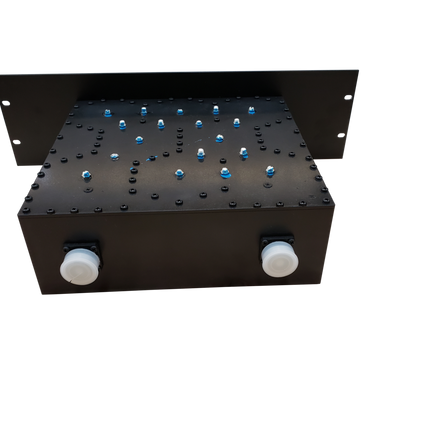

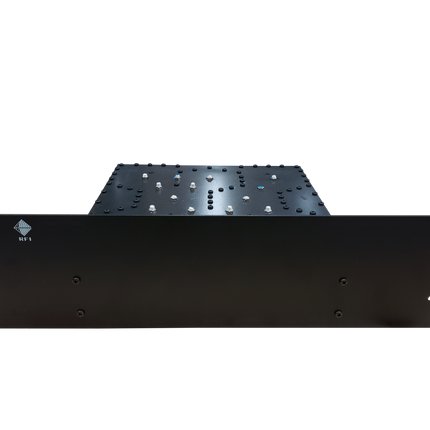

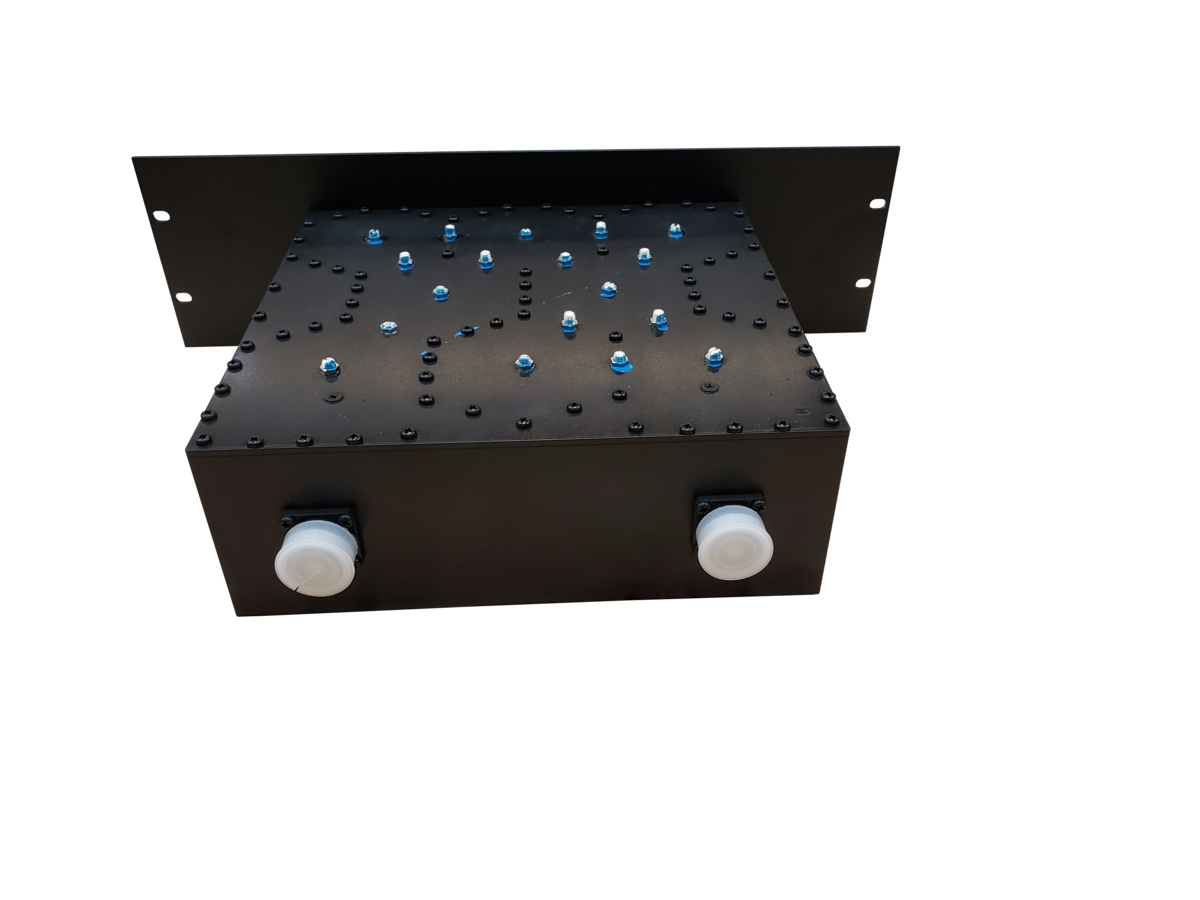

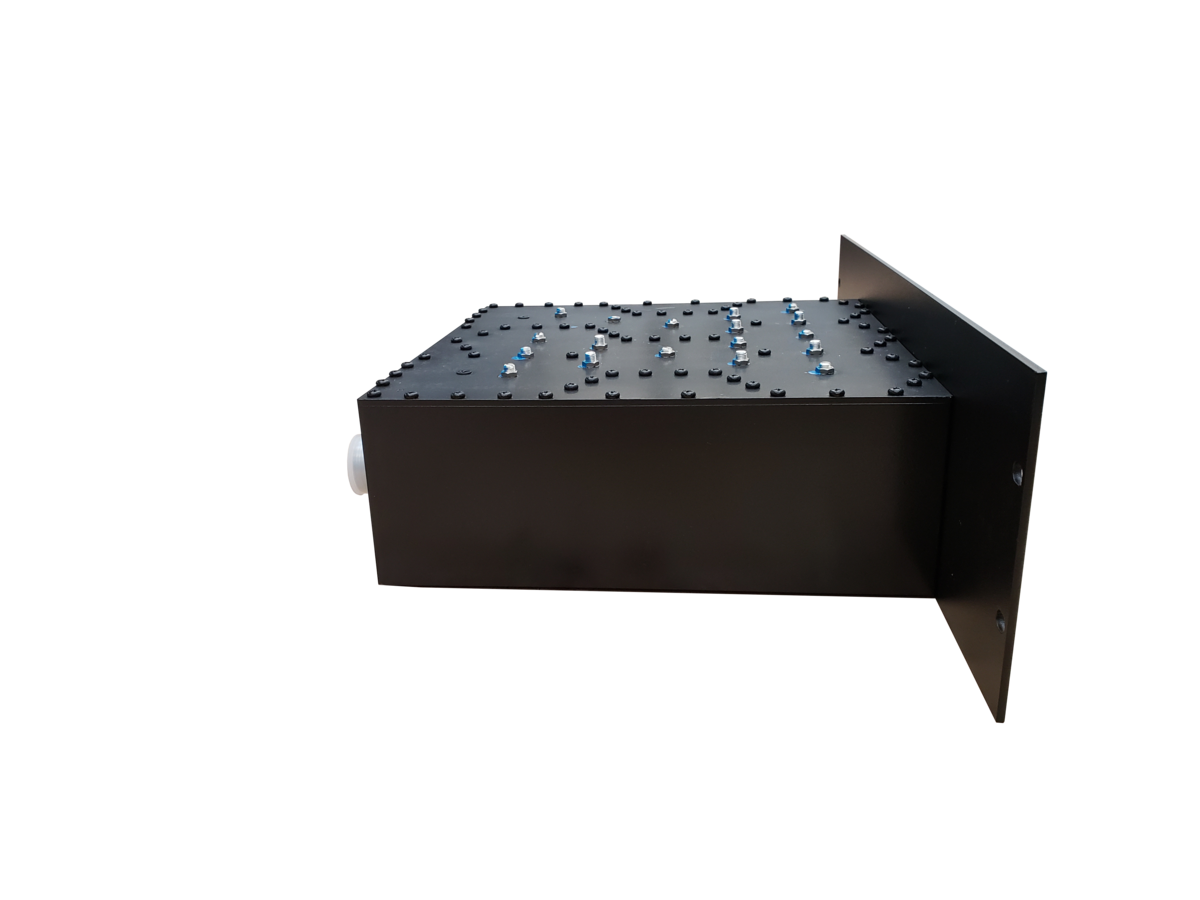

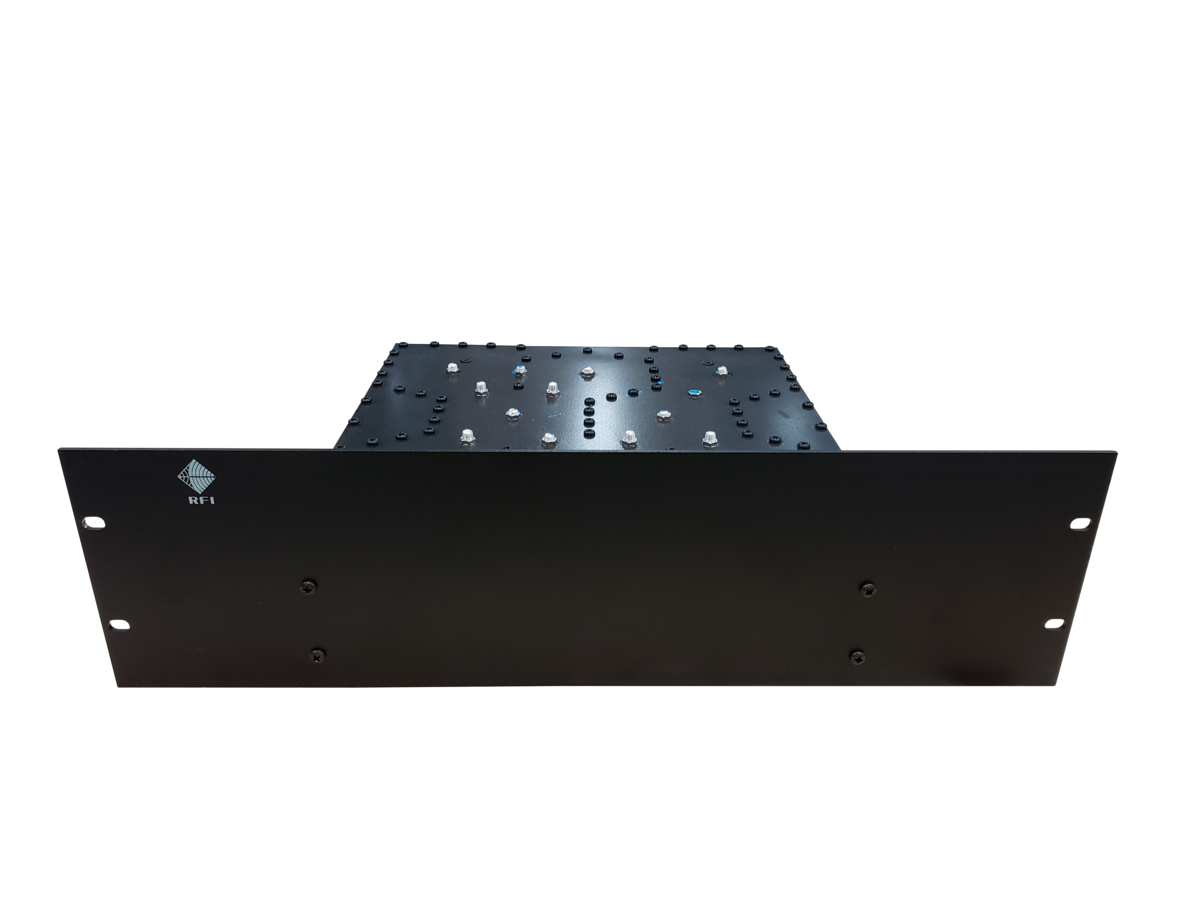

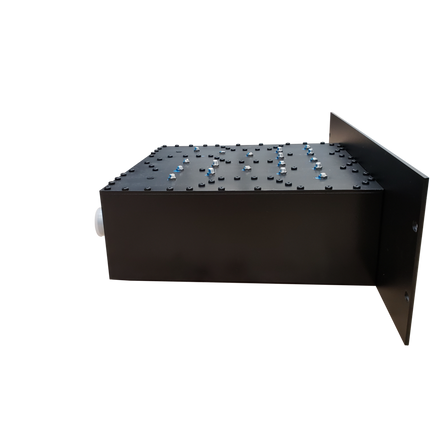

RFI PF4043-P553-32-4.3 Post Tx Filter is designed for the 410-430 MHz frequency range, 500W of power. It features a 4.3-10(F) connector, a pass bandwidth of 5 MHz, and comes in a 3RU form factor, making it suitable for multi-carrier applications. RFI's range of high power compact multi-resonator milled aluminium band pass filters are ideal for use where space is restricted or at a premium and where a 19"rack mounting facility is available. The sharp skirt response, high power rating and low pass band insertion loss make these filters ideal for use as post filters cleaning up transmitter carriers or Tx sub-bands. The temperature stable resonators provide a wide operational temperature range ensuring important electrical specifications are maintained in extreme temperature conditions.

Product Features:

• Compact temperature stable design
• 5MHz Typical Pass Band
• Low insertion loss ripple
• 3RU 19"Rack mount front panel
• PIM rated
• Suitable for Multi-Carrier Operations

Application Areas:

• Multi-carrier transmitter filtering.
• High-power UHF communication systems.
• Mission-critical and commercial radio networks.
• Rack-mounted RF filtering solutions.

In the Box:

• RFI PF4043-P553-32-4.3 Band Pass Filter

Documents:

RFI PF4043-P553-32-4.3 UHF Band Pass Filter - Datasheet
