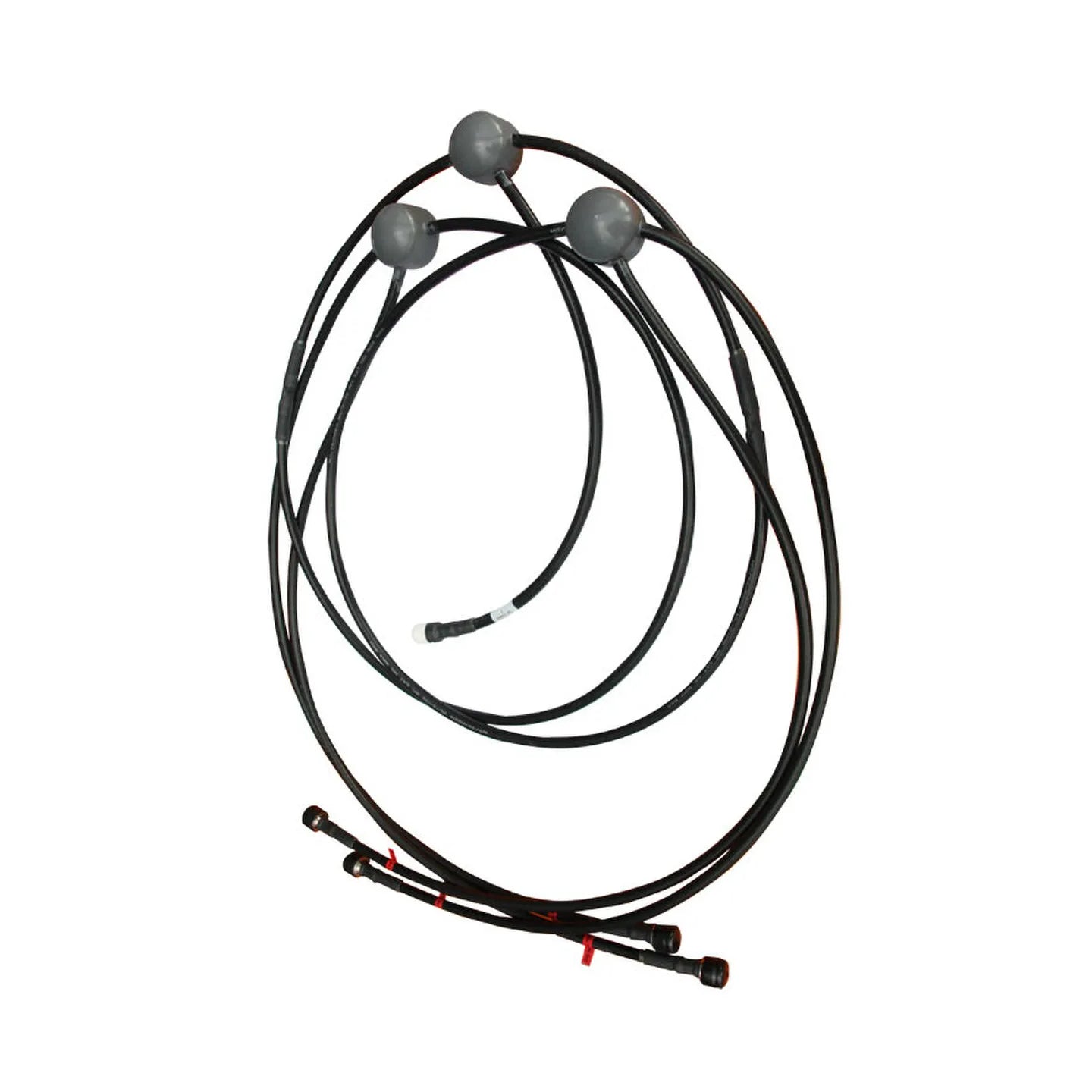

RFI PH14-99 Phasing Harness, 4-way for VHF Applications

RFI PH14-99 Phasing Harness, 4-way for VHF Applications

On backorder

Brand:
Item ID:
168021495
Export:
Accepted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
PH14-99
Send Request for Quote (RFQ) Discount Offers
RFI PH14-99 phasing harness is a 4-way VHF phasing harness from RFI’s standard PH Series, specifically engineered for custom antenna configurations in the 60–136 MHz frequency range.
Regular price $837.00
Regular price $0.00 Sale price $837.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI PH14-99 phasing harness is a 4-way VHF phasing harness from RFI’s standard PH Series, specifically engineered for custom antenna configurations in the 60–136 MHz frequency range. Designed for use with side-mounted dipole and small Yagi antennas, the PH14-99 provides accurate phase alignment and impedance control across four antenna outputs. This harness is ideal for tailored multi-antenna arrays where performance and pattern control are critical.

Product Features:

  • 4-way phasing harness for VHF side-mount dipoles and smaller Yagi antennas.
  • Supports operation in the 60–136 MHz frequency band with custom antennas (frequency must be specified).
  • Provides precise phase distribution and impedance matching across four antenna outputs.
  • Part of the standard PH Series for compact antenna arrays.
  • Pre-terminated and tested to ensure consistent field performance and reduced installation time.

Application Areas:

  • Custom VHF antenna array systems for commercial, government, and utility communications.
  • Side-mounted dipole installations in environments requiring directional pattern control.
  • Deployments requiring a compact phasing harness with dependable signal integrity.

In the Box:

  • 1 x PH14-99 4-Way VHF Phasing Harness (custom tuned)

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide

Product Specifications

MPN PH14-99
Brands RFI
Component type Phasing Harness
Connector N(M)
Frequency band VHF
Frequency mhz 60-136
Height 20
Length 32
Technology type VHF
Width 32
