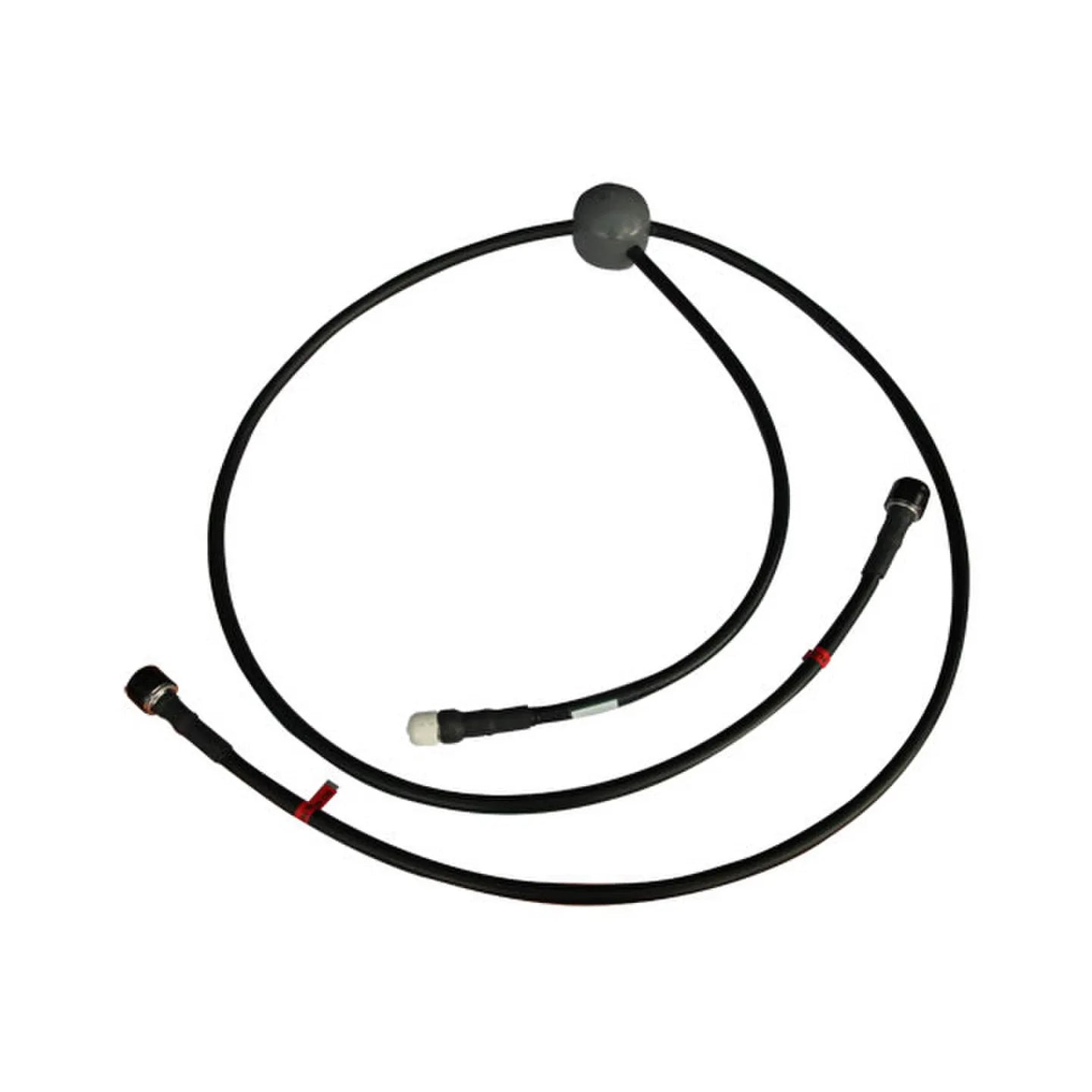

The RFI PH42-70 phasing harness is a 2-way UHF phasing harness from RFI's standard PH Series, designed for use with side-mounted dipole and small Yagi antenna arrays operating in the 450-470 MHz frequency range. This impedance-matching harness is built using coaxial cable construction to ensure optimal signal distribution, accurate phase alignment, and minimal insertion loss. It is suitable for compact phased arrays where standard antenna spacing is applicable. For installations requiring larger spacing, the extended PHE Series is recommended.

Product Features:

• 2-way phasing harness designed for UHF frequency range between 450-470 MHz.
• Optimized for use with side-mounted dipoles and smaller 2-7 element Yagi antennas.
• Ensures proper signal phasing and impedance matching across two antenna outputs.
• Part of RFI's standard PH Series, factory-assembled and tested for consistent RF performance.
• Ideal for applications that do not require extended antenna-to-antenna spacing.

Application Areas:

• UHF base station or repeater systems utilizing phased dipole or Yagi antenna arrays.
• Utility, transportation, and industrial communication networks operating in the 450-470 MHz band.
• Deployments needing compact and reliable signal phasing with vertically polarized antennas.

In the Box:

• 1 x RFI PH42-70 2-Way UHF Phasing Harness (factory-terminated)

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide
