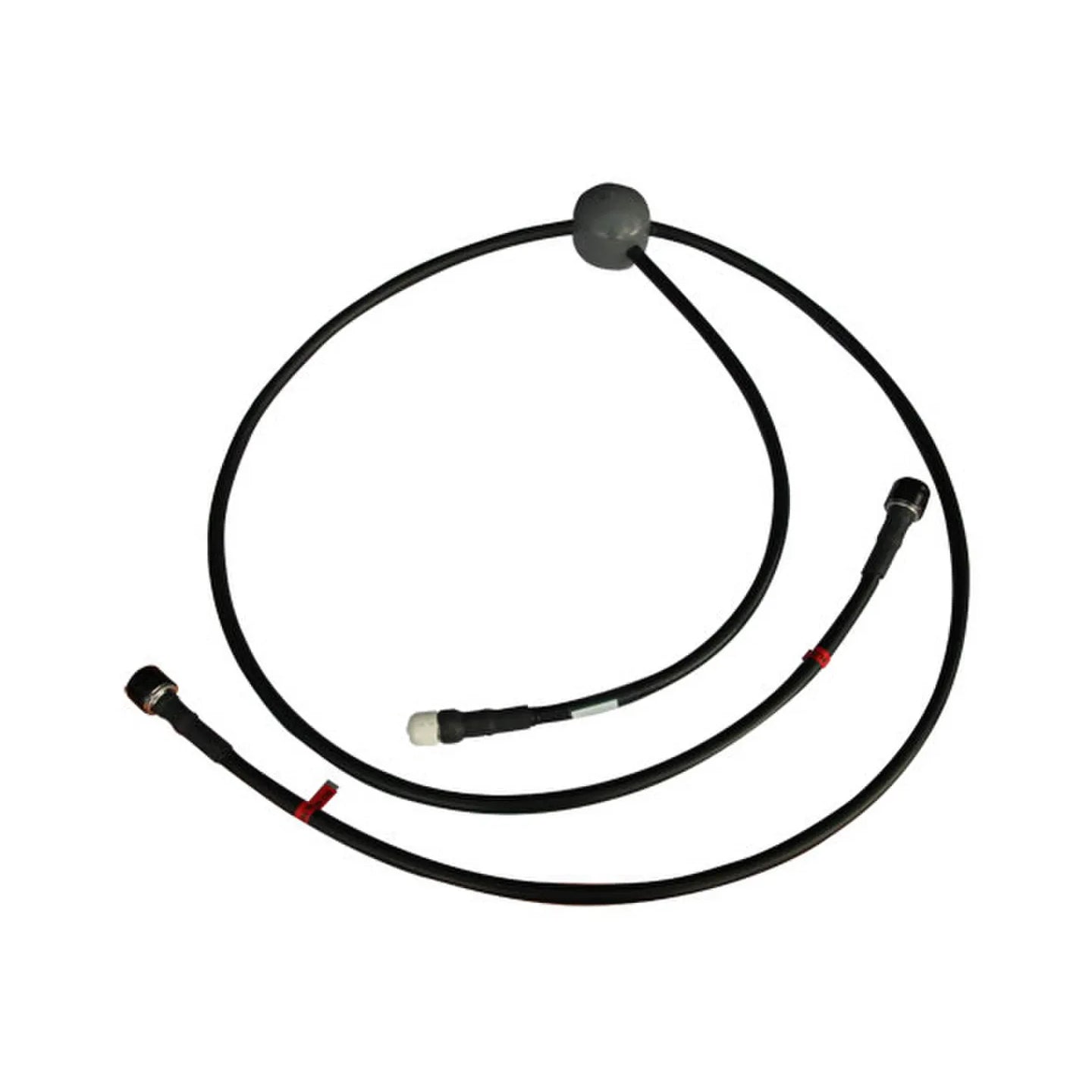

The RFI PH42-71 is a 2-way UHF phasing harness from RFI's standard PH Series, specifically designed for side-mounted dipole and small Yagi antenna arrays operating in the 470-490 MHz frequency range. This impedance-matching harness uses coaxial cable construction to provide balanced signal distribution and reliable phase alignment across two outputs. It is best suited for installations where standard antenna spacing is maintained. For wider element separation, the extended-length PHE Series should be considered.

Product Features:

• 2-way phasing harness optimized for UHF operations in the 470-490 MHz band.
• Engineered for use with side-mounted dipoles and 2-7 element Yagi antennas.
• Coaxial construction ensures low-loss impedance matching and consistent phasing.
• Factory-terminated design simplifies installation and ensures consistent performance.
• Part of the standard PH Series, ideal for compact antenna arrays with standard spacing.

Application Areas:

• UHF radio communications infrastructure using phased dipole or small Yagi antennas.
• Industrial and utility networks operating within the 470-490 MHz spectrum.
• Base station and repeater systems where reliable signal distribution is essential.

In the Box:

• 1 x RFI PH42-71 2-Way UHF Phasing Harness (pre-tuned and factory-terminated)
• 1x N(M) connector

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide
