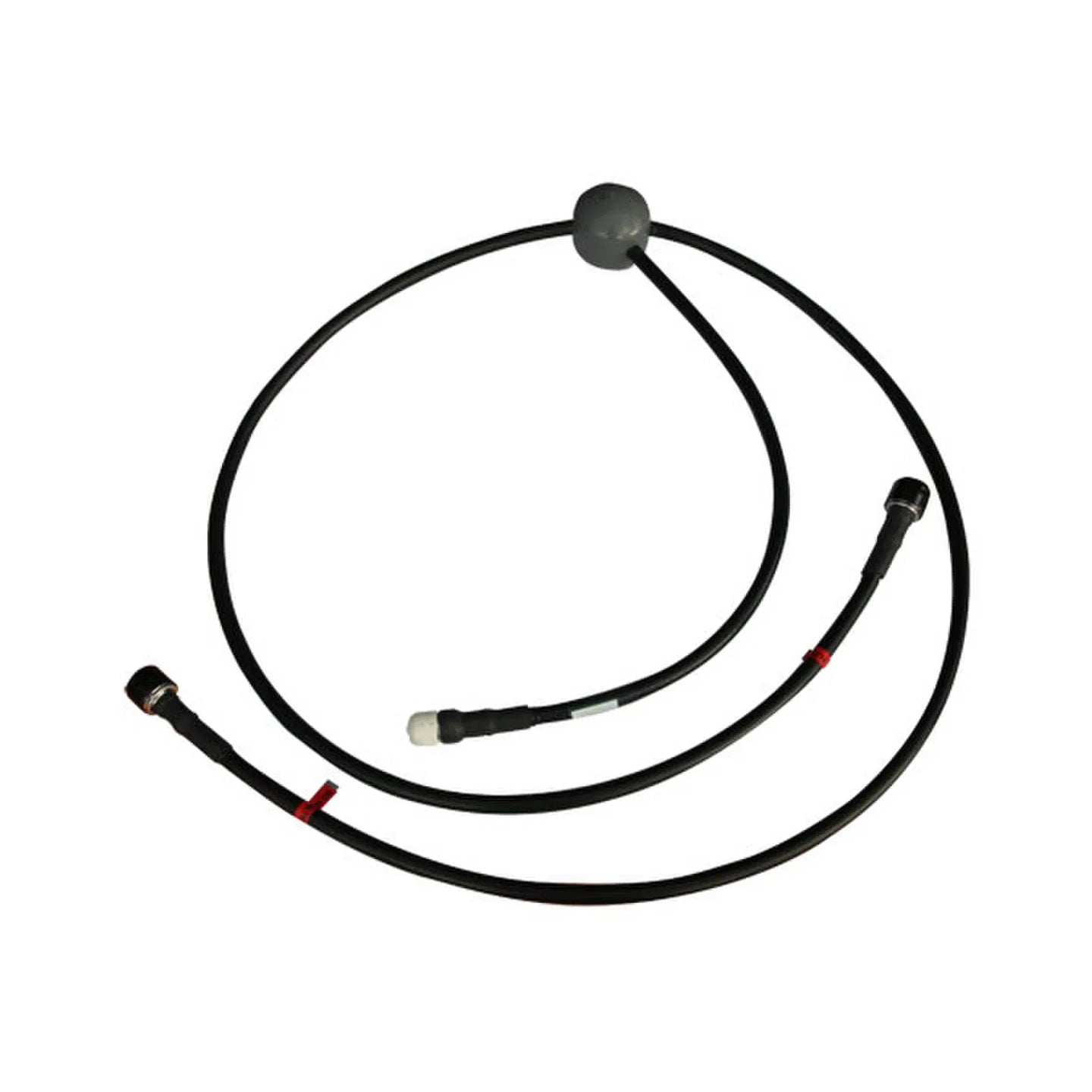

The RFI PH42-72 phasing harness is a 2-way UHF phasing harness from RFI’s trusted PH Series, specifically designed for antenna systems operating in the 490–520 MHz frequency range. This harness is ideal for side-mounted dipole and small Yagi antenna arrays that utilize standard spacing. For systems requiring larger antenna separations, the extended PHE Series is recommended.

Product Features:

• 2-way phasing harness engineered for 490–520 MHz UHF band applications.
• Designed for use with side-mounted dipoles and smaller Yagi antennas (2–7 elements).
• Delivers balanced signal distribution and low VSWR using coaxial cable construction.
• Pre-terminated at the factory for reliable performance and simplified installation.
• Compatible with standard spacing requirements in phased array antenna systems.

Application Areas:

• UHF communication networks requiring phased signal control and improved directionality.
• Installations using vertically polarized side-mount dipole or compact Yagi arrays.
• Base station and repeater setups in the 490–520 MHz frequency range.

In the Box:

• 1 x RFI PH42-72 2-Way UHF Phasing Harness (factory-terminated)

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide
