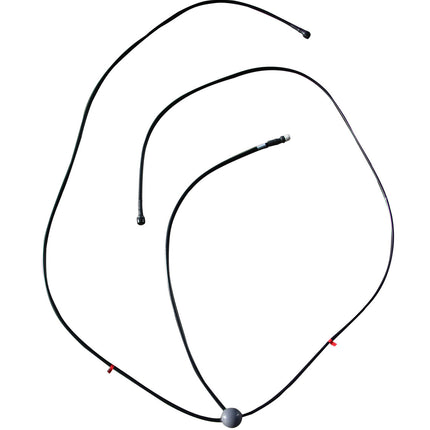

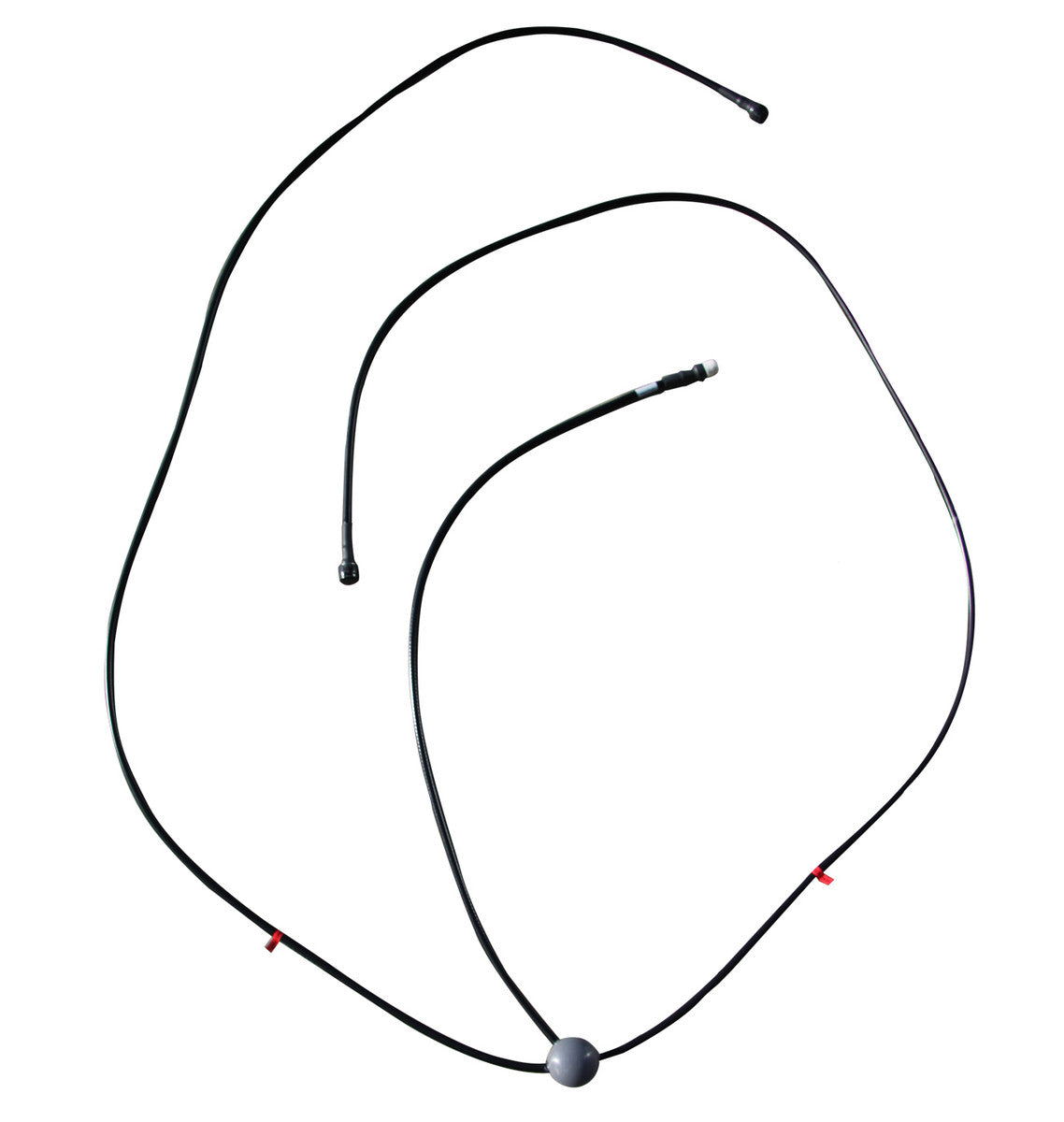

The RFI PHE12-99 Phasing Harness is a custom-tuned PHE Series Phasing Harness, designed for VHF applications in the 60–136 MHz frequency range. Built with high-performance coaxial cable construction, this extended-length harness is ideal for feeding multiple antennas with precise impedance matching especially in installations where larger Yagi antennas require significant spacing.

Product Features:

• Frequency Range: 60–136 MHz (Custom Tuned)
• Extended Length (E-Series) for wider antenna-to-antenna spacing
• 2-Way impedance matching for balanced signal distribution
• High-quality coaxial cable build for low-loss transmission
• Optimized for large Yagi and side-mounted dipole antenna systems

Application Areas:

• Large Yagi antenna setups requiring extended spacing
• Side-mounted dipole antenna installations
• VHF system deployments (60–136 MHz)
• Telecommunications and public safety radio networks

In the Box:

• 1 x RFI PHE12-99 Phasing Harness

Documents:

RFI PH & PHE Series Phasing Harnesses - Datasheet RFI PH & PHE Series Phasing Harnesses - Installation Guide
