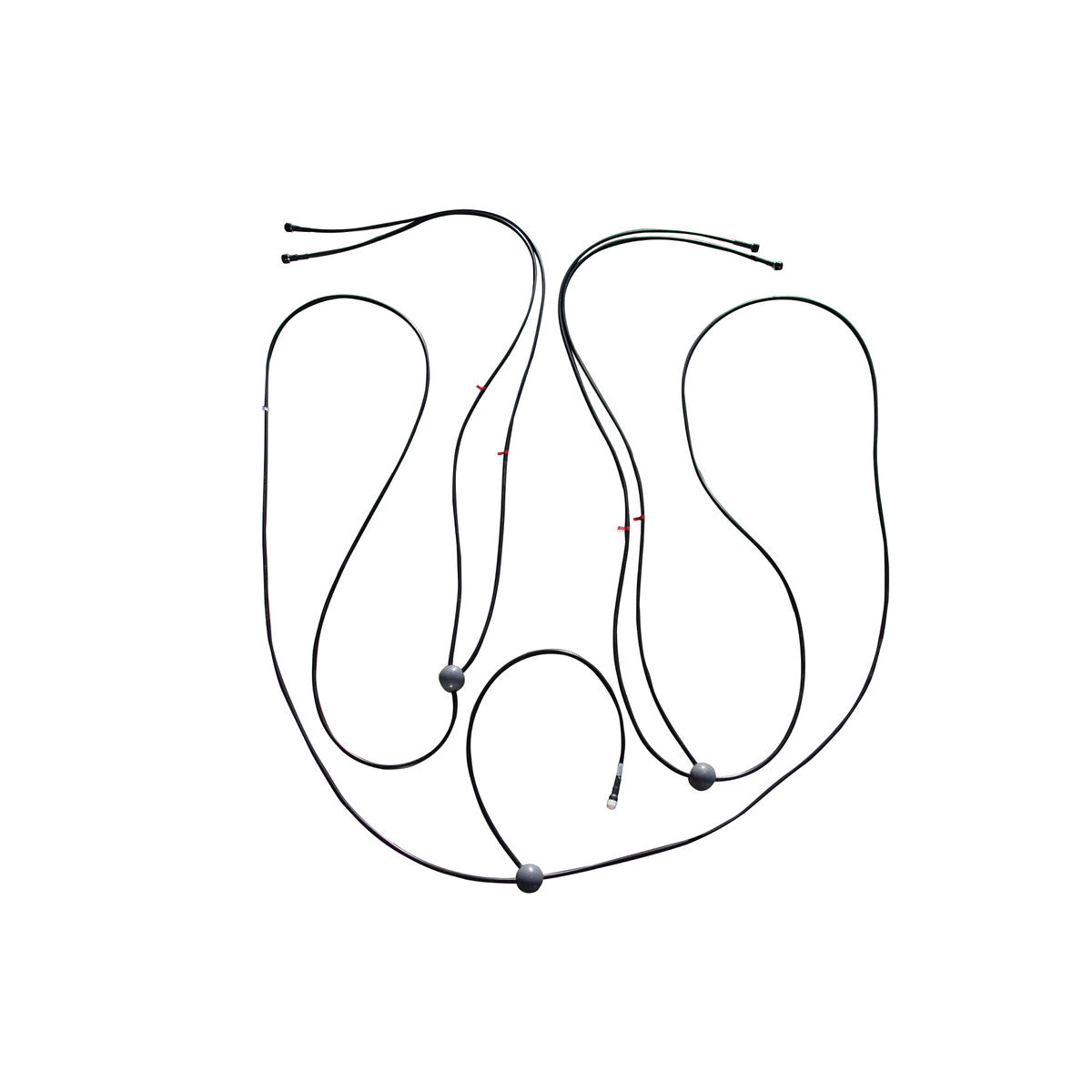

PH Series harnesses, our standard range, suit side mounted dipole and smaller Yagi antenna applications. Larger Yagi antennas require significantly larger antenna to antenna spacings and require the PHE (E for extended length) Series. The RFI PHE44-65 phasing harness is designed for UHF applications. It ensures optimal power distribution and phase alignment between antennas, enhancing signal strength and coverage in critical communication systems.
Note: For ALL applications using side mounted dipole antennas, the standard PH Series are recommended. To ensure that you choose the correct phasing harness for your application.
Product Features:
- The PHE44-65 is part of the extended length PHE Series designed for UHF applications.
- It is suitable for side mounted dipole and smaller Yagi antenna configurations.
- This harness accommodates wider antenna spacing required for larger Yagi antennas.
- It ensures accurate phasing to optimize signal performance in demanding environments.
- The PHE Series is developed for enhanced flexibility compared to the standard PH Series.
Application Areas:
- UHF broadcasting systems
- Telecommunication towers with side mounted dipoles
- Commercial and industrial radio installations
- High-performance Yagi antenna arrays
- Critical communication infrastructure deployments
In the Box:
- 1x RFI PHE44-65 phasing harness
Documents:
RFI PH & PHE Series Phasing Harnesses - Datasheet
RFI PH & PHE Series Phasing Harnesses - Installation Guide
