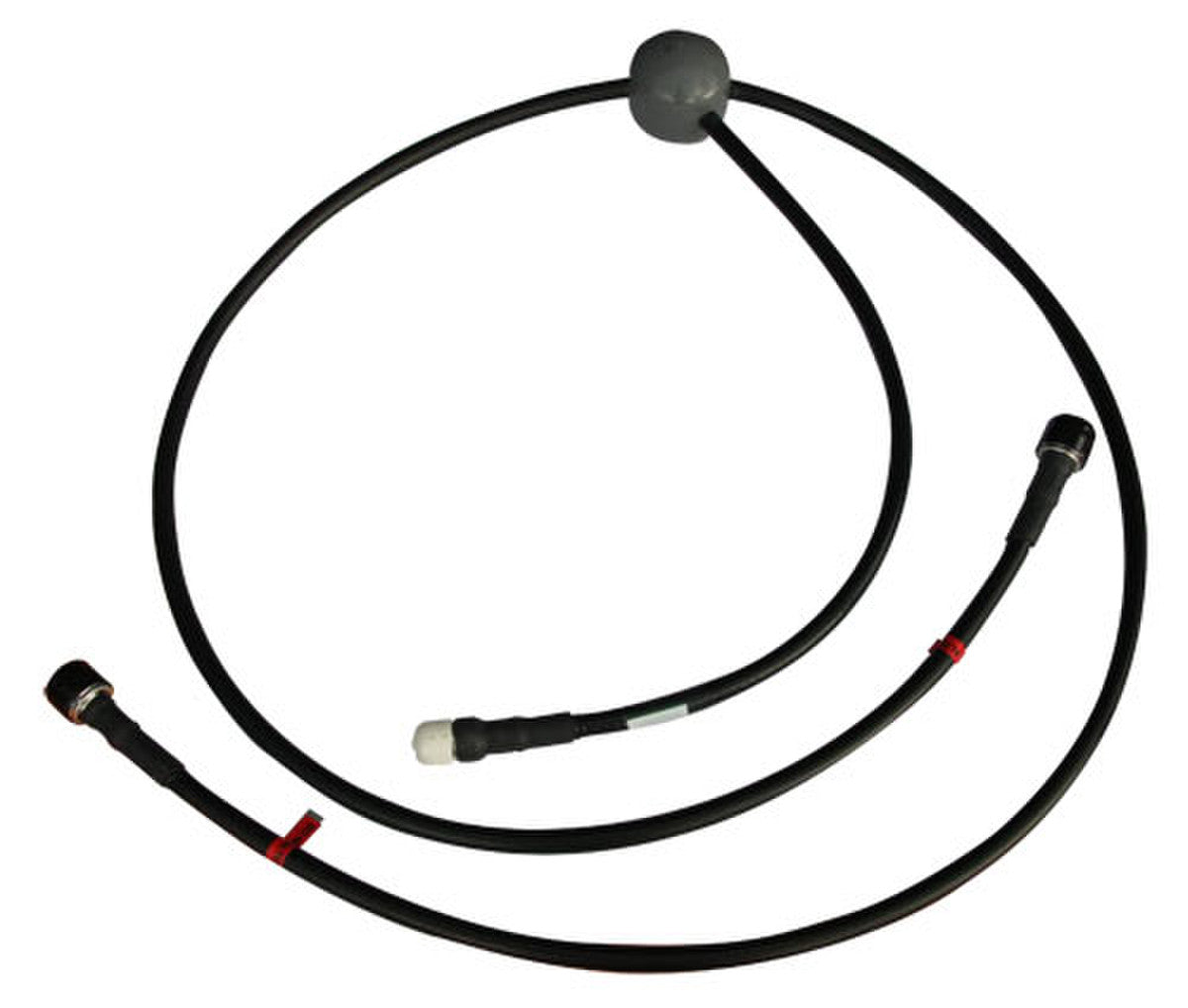

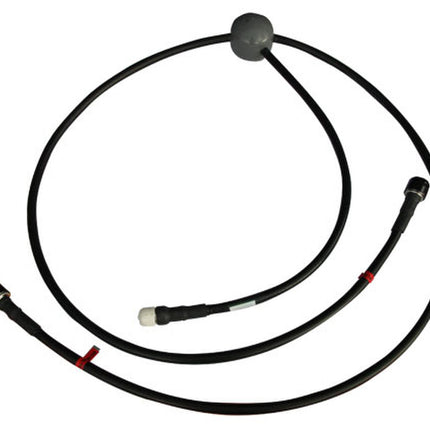

RFI PHP42-67-DIN Phasing Harness is engineered to phase two low PIM side mount dipole antennas together, creating a PIM-rated array-style antenna. This harness is specifically designed for use in applications where low PIM performance is critical, ensuring high-quality signal transmission with minimal interference.

Product Features:

• The PHP Series Phasing Harness is suitable for use with SMD40-67-DIN antennas.
• The harness is equipped with 7-16 DIN-type connectors for outdoor and rugged environments.
• 2-Way impedance matching harness for signal balancing
• Designed to operate in the 400-520 MHz frequency range for a variety of communication applications.

Application Areas:

• Side-mount dipole antenna arrays, where precise phasing is required.
• Low PIM antenna configurations for minimal interference and optimal signal clarity.
• Telecommunication and broadcast applications that demand high-performance signal transmission.

In the Box:

• 1 x RFI PHP42-67-DIN Phasing Harness
• 2 x 7-16 DIN-Male connectors
