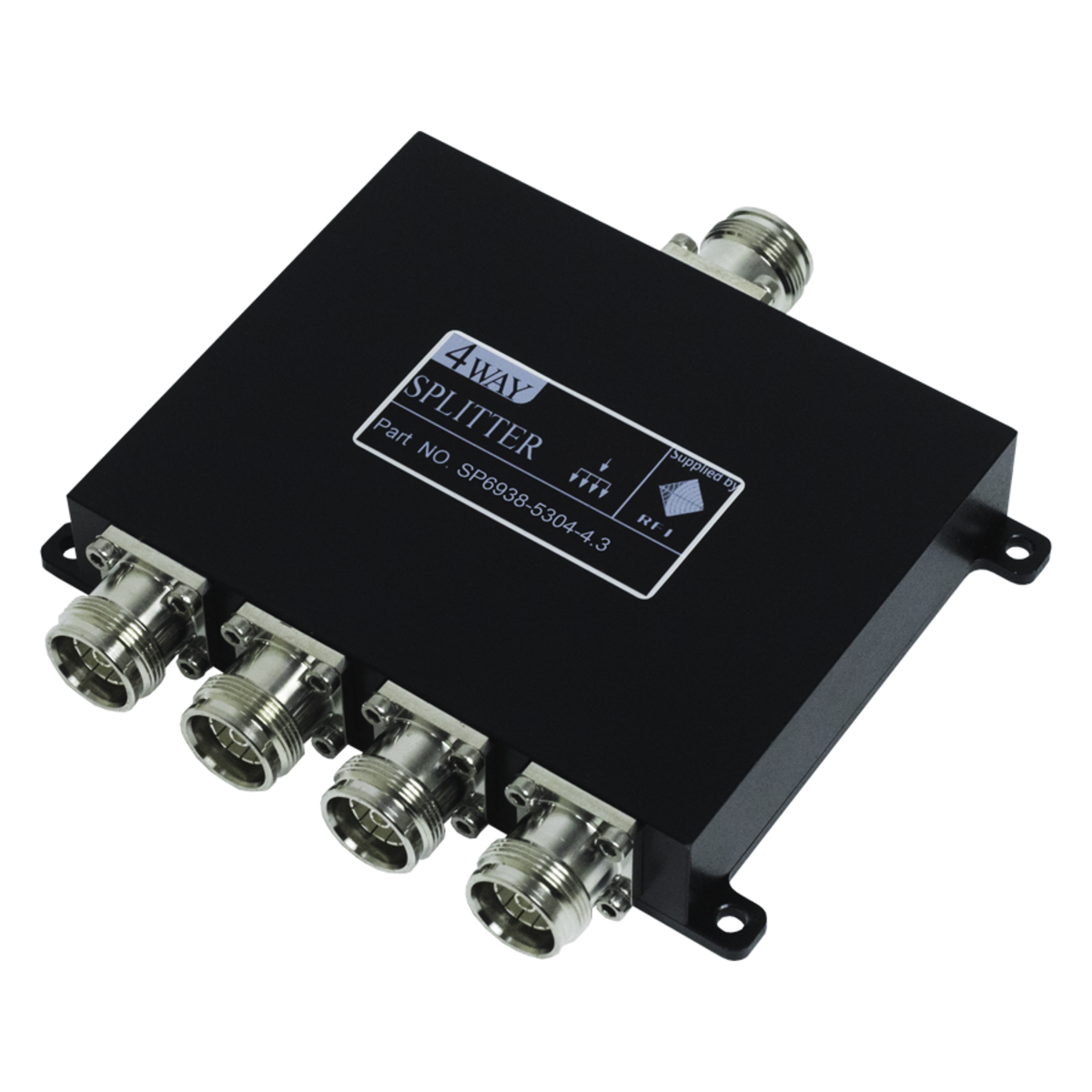

RFI SP6938-5304-4.3 Power Splitter, 4-Way, 698-3800 MHz, 300W, 4.3-10-Female

Name: RFI SP6938-5304-4.3 Power Splitter, 4-Way, 698-3800 MHz, 300W, 4.3-10-Female
Brand: RFI
SKU: 168021599
Price: 542.0 AUD

Product form

Brand:

RFI

Item ID:

168021599

Export:

Accepted

Shipping:

Please contact us for lead time

Warranty:

Standard Warranty

Product Liability:

Global Insurance Except USA & Canada

MPN/Options:

SP6938-5304-4.3

Request for Quote (RFQ) Discount Offers Shipping Policy Returns Policy

RFI Power Splitter 4-Way 698-3800 MHz 300W are designed to split RF source power into an equal ratio of power outputs, or combine multiple inputs

$542.00

Taxes included. Shipping rate calculated at checkout.

Purchase Order & instructions box available at Cart page

Pay securely! All major cards accepted.

Product Description

RFI Power Splitter 4-Way 698-3800 MHz 300W

These 4-way devices may be used in a range of RF signal splitting (divider) and combining applications and are designed to split RF source power into an equal ratio of power outputs, or combine multiple inputs to a single output with isolation between the ports.

Features:

Full broadband 698-3800MHz, including 5G.
Multi-carrier PIM rating to low -155dBc
Equal ratio signal splitting or combining.
20dB min. isolation between ports
Easy to install using in-built mounting holes
IP rated (IP65) for indoor and outdoor deployment.

Product Specifications

MPN	SP6938-5304-4.3
Brands	RFI
Component type	Splitter/Combiner
Conn types all term ports	4.3-10 (F)
Connector	4.3-10 (F)
Coupled loss db	6
Finish	Black - Painted
Frequency band	Cellular
Height	5
Insertion loss db	<6.9
Length	12
Pim 3rd 2 43 dbm dbc	<160dBc
Port to port isolation	> 20dB typ.
Splits	4
Technology type	5G, 4G, UMTS
Temperature range	-30?C to +60?C / -22?F to +140?F
Width	5
