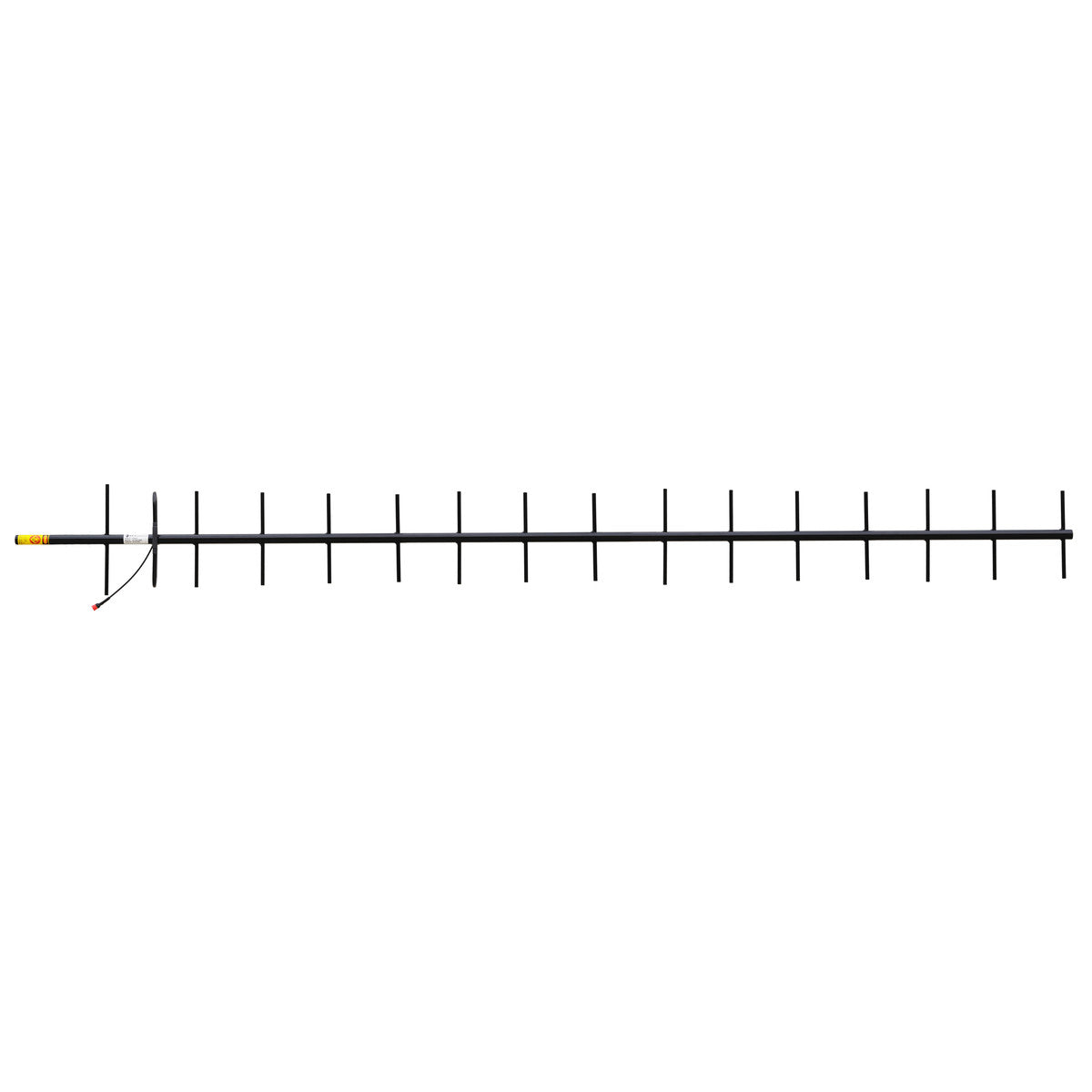

RFI RDA16-65 UHF 16 Element Yagi Antenna, 400-420 MHz, 14 dBi

RFI RDA16-65 UHF 16 Element Yagi Antenna, 400-420 MHz, 14 dBi

On backorder

Brand:
Item ID:
167016047
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
RDA16-65
Send Request for Quote (RFQ) Discount Offers
The RFI RDA16-65 is a 16-element ruggedised Yagi antenna designed for high-gain directional communication in the 400–420 MHz frequency range.
Regular price $305.00
Regular price $0.00 Sale price $305.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI RDA16-65 is a 16-element ruggedised Yagi antenna designed for high-gain directional communication in the 400–420 MHz frequency range. Built for extreme climatic conditions, it features a robust construction with larger elements and boom than standard Yagi models. Its narrow beamwidth and high front-to-back ratio make it ideal for point-to-point communication in harsh environments.

Features:

  • The RFI RDA16-65 antenna delivers 14 dBi gain for long-range, high-performance RF communication.
  • This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
  • The all-welded construction ensures maximum durability and reliable performance.
  • The ruggedised design includes larger and more robust elements and boom for enhanced strength.
  • The black powder coating aids in snow and ice shedding by maximizing solar heat retention.
  • The antenna includes a short Durathene cable tail with an N female connector for superior resistance to weathering and abrasion.
  • It supports stacking or baying using PH and PHE series phasing harnesses for higher gain configurations.
  • The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.

Application Areas:

  • The antenna is ideal for point-to-point communication in extreme climatic environments.
  • This antenna is suitable for RF systems requiring high gain and rugged construction.
  • It is designed for use in remote or industrial locations where reliability is critical.

In the Box:

  • 1x RFI RDA16-65 UHF 16 Element Yagi Antenna

Documents:

RFI RDA16-65 Yagi Antenna - Datasheet RFI Phasing Yagi Antennas - Technical Guide

Product Specifications

MPN RDA16-65
Antenna application Base Station Antenna
Antenna cable type 9302
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded aluminium with black powder coated finish. See note (1)
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 400-420
Front back ratio db 20
Height 3
Horizontal beamwidth 36?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 420
Max gain dbd dbi 14
Mimo support No
Min frequency mhz 400
Min gain dbd dbi 14
Mount supported Clamp mount
Mount supported detailed UCR1
Mounting area 100mm x 32mm diam. powder coated aluminium
No of antenna ports 1
Nominal gain dbi 14.1
Power w 100
Technologies supported UHF
Termination N female with short 9302 cable tail
Torque nm 202
Tuned bandwidth Full band
Vertical beamwidth 35?
Vswr <1.5:1
Width 3
Wind gust km h 174
Wind thrust 172
