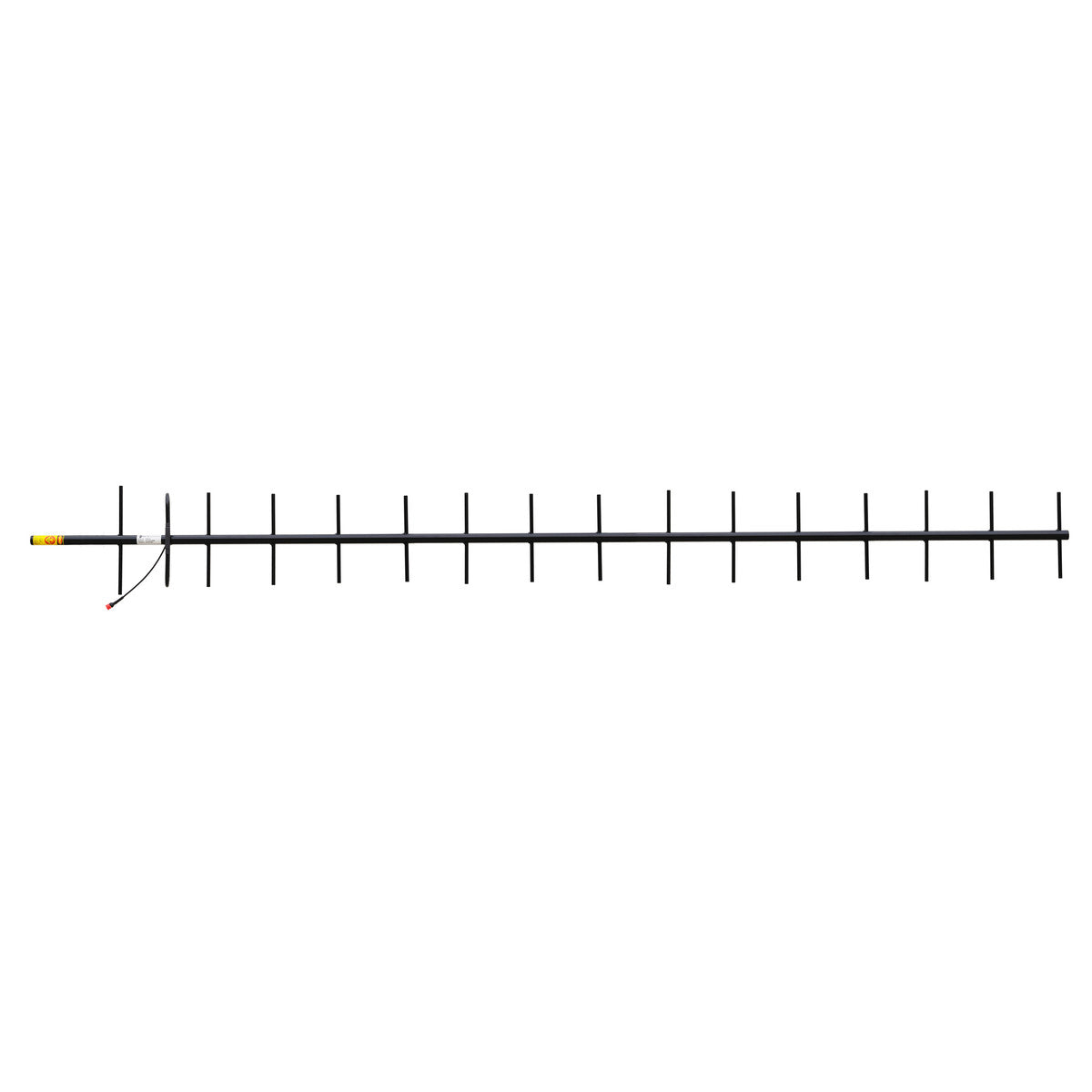

The RFI RDA16-70 is a 16-element high-gain Yagi antenna built for directional communication in the 450–470 MHz frequency range. Designed for extreme weather conditions, it features a ruggedised structure and black powder coating for enhanced durability and performance.

Features:

• The RFI RDA16-70 antenna provides 14 dBi gain for strong and focused signal transmission.
• This antenna features narrow beamwidths and high front-to-back ratios to minimize interference.
• The all-welded construction ensures long-term reliability in harsh environments.
• The ruggedised design includes larger elements and boom for added strength.
• The black powder coating helps shed snow and ice by retaining solar heat.
• The antenna includes a short Durathene cable tail with an N female connector for weather and abrasion resistance.
• The Durathene cable is more resistant to bird damage than standard PVC cables.
• It supports stacking or baying using PH and PHE series phasing harnesses.
• The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.

Application Areas:

• The antenna is ideal for directional RF communication in extreme weather environments.
• This antenna is suitable for long-range point-to-point links requiring rugged construction.
• It is designed for use in industrial and remote outdoor applications.

In the Box:

• 1x RFI RDA16-70 UHF 16 Element Yagi Antenna

Documents:

RFI RDA16-70 Yagi Antenna - Datasheet RFI Phasing Yagi Antennas - Technical Guide
