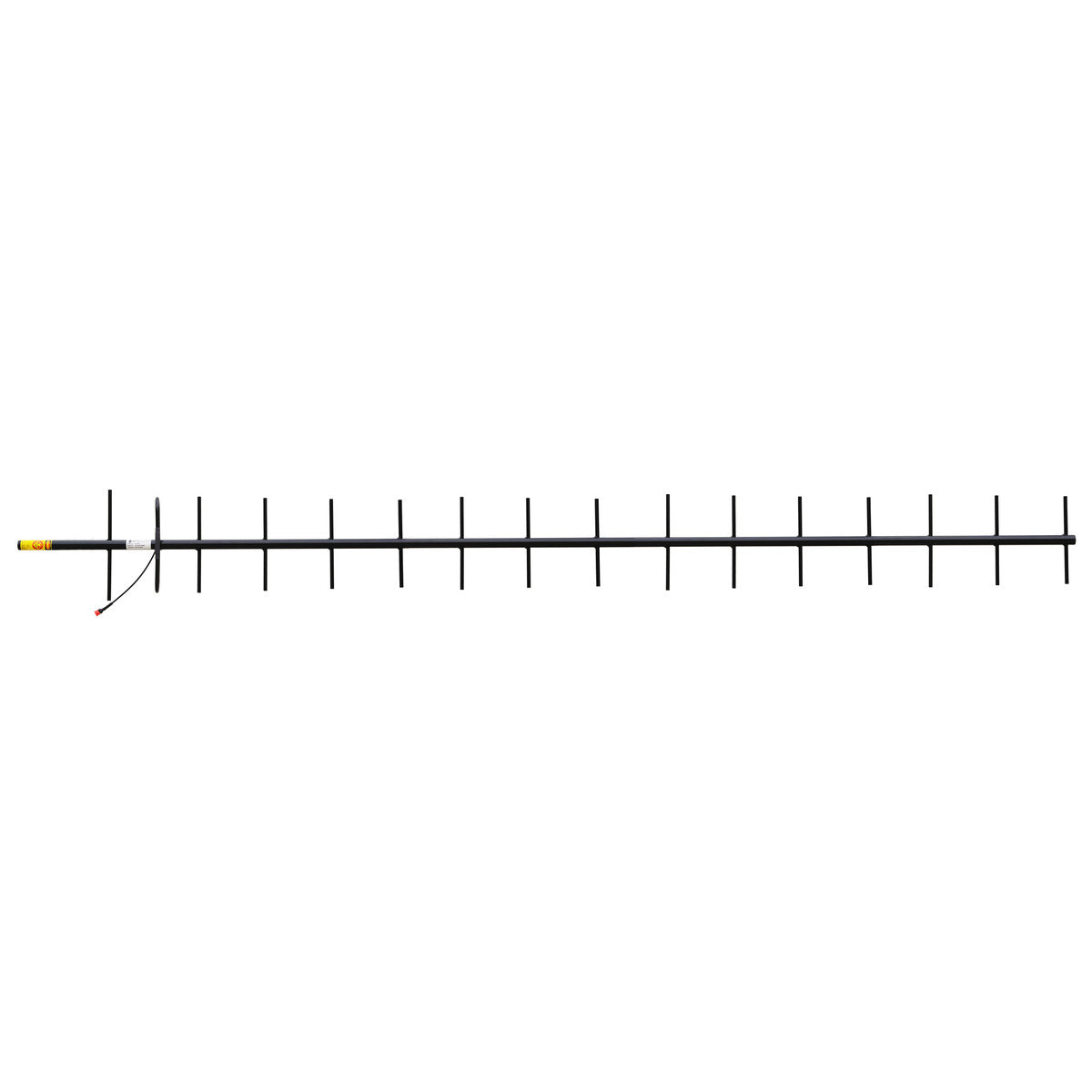

RFI RDA16-99 UHF 16 Element Yagi Antenna, 350-600 MHz, 14 dBi - Custom Tuned

RFI RDA16-99 UHF 16 Element Yagi Antenna, 350-600 MHz, 14 dBi - Custom Tuned

On backorder

Brand:
Item ID:
167016055
Export:
Restricted
Shipping:
Please contact us for lead time
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
RDA16-99
Send Request for Quote (RFQ) Discount Offers
RFI RDA16-99 is a custom-tuned 16-element ruggedised Yagi antenna designed for broadband directional communication across the 350–600 MHz frequency range.
Regular price $342.00
Regular price $0.00 Sale price $342.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI RDA16-99 is a custom-tuned 16-element ruggedised Yagi antenna designed for broadband directional communication across the 350–600 MHz frequency range. Built for extreme conditions, it combines high gain with a robust structure for reliable performance in the harshest environments.

Features:

  • The RFI RDA16-99 antenna is custom tuned for operation across the 350–600 MHz frequency range.
  • This antenna delivers 14 dBi gain for high-performance broadband communication.
  • The all-welded construction ensures maximum durability and consistent performance.
  • The ruggedised design includes larger elements and boom for structural integrity.
  • The black powder coating aids in snow and ice shedding by maximizing solar heat retention.
  • The antenna includes a short Durathene cable tail with an N female connector for superior weather resistance.
  • The Durathene cable is less susceptible to bird damage than standard PVC sheathed cables.
  • It supports stacking or baying using PH and PHE series phasing harnesses.
  • The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.

Application Areas:

  • The antenna is ideal for broadband point-to-point communication in extreme environments.
  • This antenna is suitable for custom frequency RF systems requiring high gain and rugged construction.
  • It is designed for use in remote, industrial, or harsh outdoor conditions.

In the Box:

  • 1x RFI RDA16-99 UHF 16 Element Yagi Antenna (custom tuned)

Documents:

RFI RDA16-99 Yagi Antenna - Datasheet RFI Phasing Yagi Antennas - Technical Guide

Product Specifications

MPN RDA16-99
Antenna application Base Station Antenna
Antenna cable type 9302
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded aluminium with black powder coated finish. See note (1)
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 350-600
Front back ratio db 20
Height 3
Horizontal beamwidth 36?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 600
Max gain dbd dbi 14
Mimo support No
Min frequency mhz 350
Min gain dbd dbi 14
Mount supported Clamp mount
Mount supported detailed UCR1
Mounting area 100mm x 32mm diam. powder coated aluminium
No of antenna ports 1
Nominal gain dbi 14.1
Power w 100
Technologies supported UHF
Termination N female with short 9302 cable tail
Torque nm 285
Tuned bandwidth 0.04
Vertical beamwidth 35?
Vswr <1.5:1
Width 3
Wind gust km h 147
Wind thrust 205
