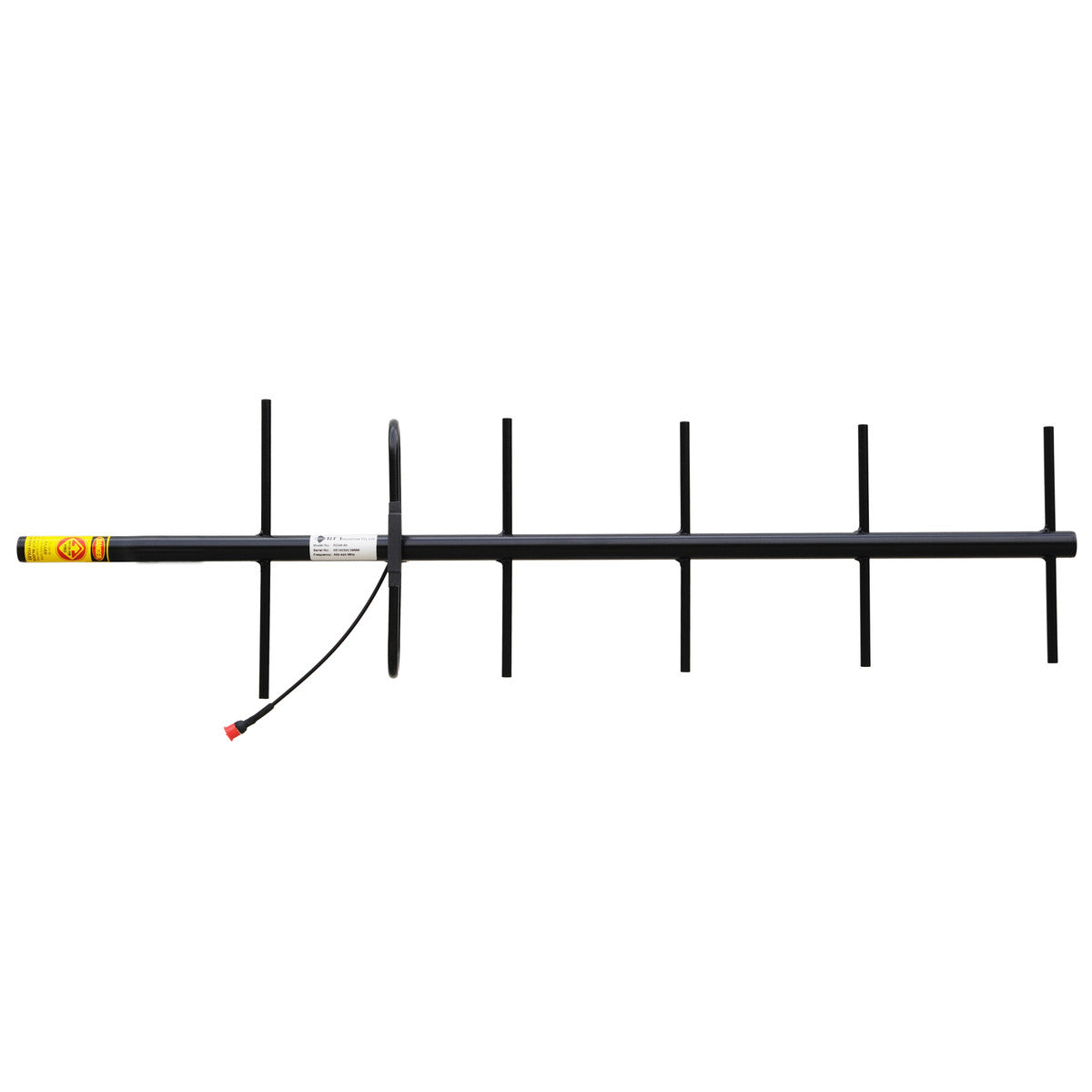

The RFI RDA6-62 is a 6-element ruggedised Yagi antenna designed for directional communication in the 480–520 MHz frequency range. With a gain of 11 dBi and a robust structure, it is ideal for use in extreme weather and remote environments.

Features:

• The RFI RDA6-62 antenna provides 11 dBi gain for strong directional signal coverage.
• This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
• The all-welded construction ensures long-term durability and performance.
• The ruggedised design includes larger elements and boom for enhanced strength.
• The black powder coating helps shed snow and ice by retaining solar heat.
• The antenna includes a short Durathene cable tail with an N female connector for weather and abrasion resistance.
• The Durathene cable is more resistant to bird damage than standard PVC cables.
• It supports stacking or baying using PH and PHE series phasing harnesses.
• The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.

Application Areas:

• The antenna is ideal for directional RF communication in extreme weather environments.
• This antenna is suitable for long-range point-to-point links requiring rugged construction.
• It is designed for use in industrial and remote outdoor applications.

In the Box:

• 1x RFI RDA6-62 UHF 6 Element Yagi Antenna

Documents:

RFI RDA6-62 Yagi Antenna - Datasheet RFI Phasing Yagi Antennas - Technical Guide
