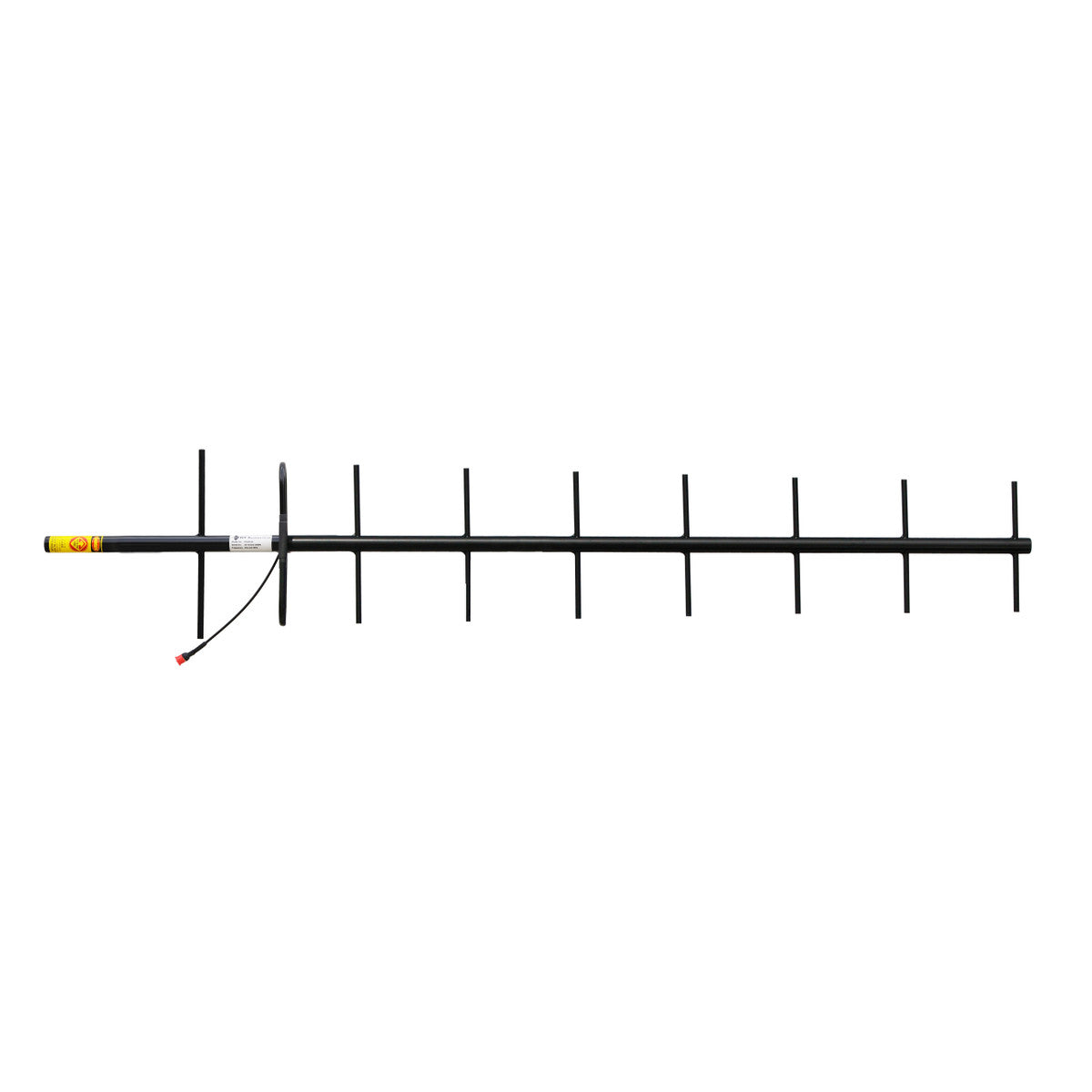

RFI RDA9-65 UHF 9 Element Yagi Antenna, 400-420 MHz, 13 dBi

RFI RDA9-65 UHF 9 Element Yagi Antenna, 400-420 MHz, 13 dBi

Available

Brand:
Item ID:
167016071
Export:
Restricted
Shipping:
Ships out in 1-2 business days
Warranty:
Standard Warranty
Product Liability:
Global Insurance Except USA & Canada
Options/MPN:
RDA9-65
Send Request for Quote (RFQ) Discount Offers
The RFI RDA9-65 is a 9-element ruggedised Yagi antenna designed for directional communication in the 400–420 MHz frequency range with a gain of 13 dBi.
Regular price $279.00
Regular price $0.00 Sale price $279.00
Sale Sold out
Taxes included Shipping calculated at checkout.
Quantity
View full details

Product Description

The RFI RDA9-65 is a 9-element ruggedised Yagi antenna designed for directional communication in the 400–420 MHz frequency range. With a gain of 13 dBi and a robust structure, it is ideal for use in extreme weather and remote environments.

Features:

  • The RFI RDA9-65 antenna provides 13 dBi gain for strong directional signal coverage.
  • This antenna features narrow beamwidths and high front-to-back ratios to reduce interference.
  • The all-welded construction ensures long-term durability and performance.
  • The ruggedised design includes larger elements and boom for enhanced strength.
  • The black powder coating helps shed snow and ice by retaining solar heat.
  • The antenna includes a short Durathene cable tail with an N female connector for weather and abrasion resistance.
  • The Durathene cable is more resistant to bird damage than standard PVC cables.
  • It supports stacking or baying using PH and PHE series phasing harnesses.
  • The antenna includes DC grounding on all elements for lightning protection and static noise dissipation.

Application Areas:

  • The antenna is ideal for directional RF communication in extreme weather environments.
  • This antenna is suitable for long-range point-to-point links requiring rugged construction.
  • It is designed for use in industrial and remote outdoor applications.

In the Box:

  • 1x RFI RDA9-65 UHF 9 Element Yagi Antenna

Documents:

RFI RDA9-65 Yagi Antenna - Datasheet RFI Phasing Yagi Antennas - Technical Guide

Product Specifications

MPN RDA9-65
Antenna application Base Station Antenna
Antenna cable type 9302
Antenna features Directional
Antenna port connectors N (F)
Antenna type Directional Yagis
Brands RFI
Cable length m 0.1
Construction All welded aluminium with black powder coated finish. See note (1)
Coverage type Directional
Frequency band UHF 380-520 MHz
Frequency mhz 400-420
Front back ratio db 18
Height 3
Horizontal beamwidth 46?
Installation type External mounting
Length 99
Low pim No
Max frequency mhz 420
Max gain dbd dbi 13
Mimo support No
Min frequency mhz 400
Min gain dbd dbi 13
Mount supported Clamp mount
Mount supported detailed UCR1
Mounting area 100mm x 32mm diam. powder coated aluminium
No of antenna ports 1
Nominal gain dbi 13.1
Power w 100
Technologies supported UHF
Termination N female with short 9302 cable tail
Torque nm 113
Tuned bandwidth Full band
Vertical beamwidth 41?
Vswr <1.5:1
Width 3
Wind gust km h >240
Wind thrust 125
