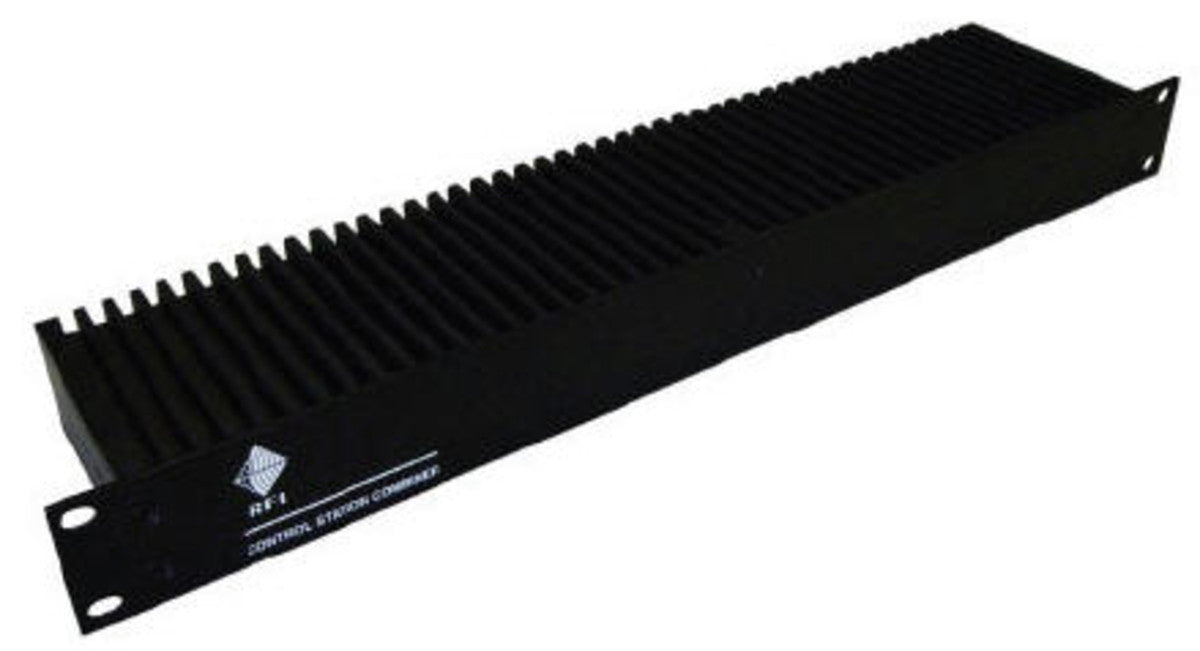

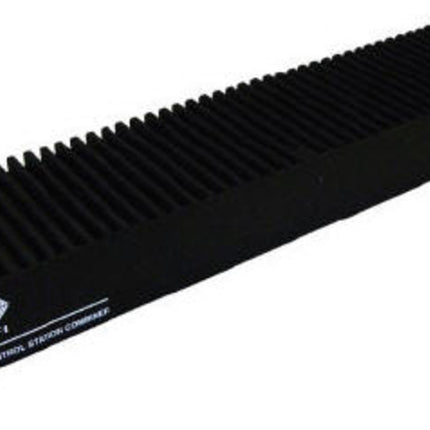

Short-Haul Control Station Combiners provide fixed isolation between radio units using power attenuators and signal combining techniques. The result is higher per channel insertion losses than standard Control Station Combiners. In applications where the radios units are to be operated in close proximity to the network's base site, this additional insertion loss ensures the base site equipment's receivers are not overloaded, and the Control Station radio's receivers are similarly not overloaded by the base site's transmitters. The combining capabilities of these models can significantly reduce tower clutter and loading, simplify cabling installation and reduce deployment costs at Control Center facilities. Models are broadband and cover the entire 40-960 MHz bandwidth, in standard configurations of 4, 8, 16, 24 and 32 channels. Configurations for use with up to 128 channels (and beyond) are also available.

• Low profile for space efficient Installation
• Frequency agile with predictable Isolation
• Broadband capability for multi-band operation
• Analogue and digital compatible

Documents:

RFI Short-Haul Control Station Combiner - Datasheet
RFI Short-Haul Control Station Combiner - Quick Start Guide
RFI Short-Haul Control Station Combiner - Application Note
RFI Short-Haul Control Station Combiner - User Manual
RFI Short-Haul Control Station Combiner Expansion Deck - Datasheet
