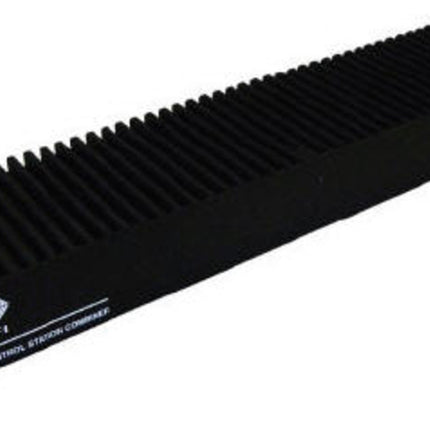

RFI Short Haul Control Station Combiner 40-960 MHz; Expansion Deck; 50W

Features:

Short-Haul Control Station Combiner (SHCSC) Expansion Decks (CS0496-0405-EX) provide port capacity expansion capabilities for Short-Haul Control Station Combiners.  Expansion decks cannot be used as combiners themselves, only to combine multiple SHCSC units. The Expansion Deck is broadband and covers the entire 40 - 960 MHz bandwidth, and provides 4 ports for expanding Short-Haul Control Station Combiner port capacities up to128 ports (channels).  Multiple Expansion Decks can be cascaded to create the SHCSC capacity required.

• Low profile for space efficient Installation
• Frequency agile with predictable Isolation
• Broadband capability for multi-band operation
• Analogue and digital compatible

Documents:

RFI Short-Haul Control Station Combiner - Datasheet
RFI Short-Haul Control Station Combiner - Quick Start Guide
RFI Short-Haul Control Station Combiner - Application Note
RFI Short-Haul Control Station Combiner - User Manual
RFI Short-Haul Control Station Combiner Expansion Deck - Datasheet
